RECON observing guide for 7641_Cteatus_20261130090608

Occultation event with (7641) Cteatus, event index number 4959

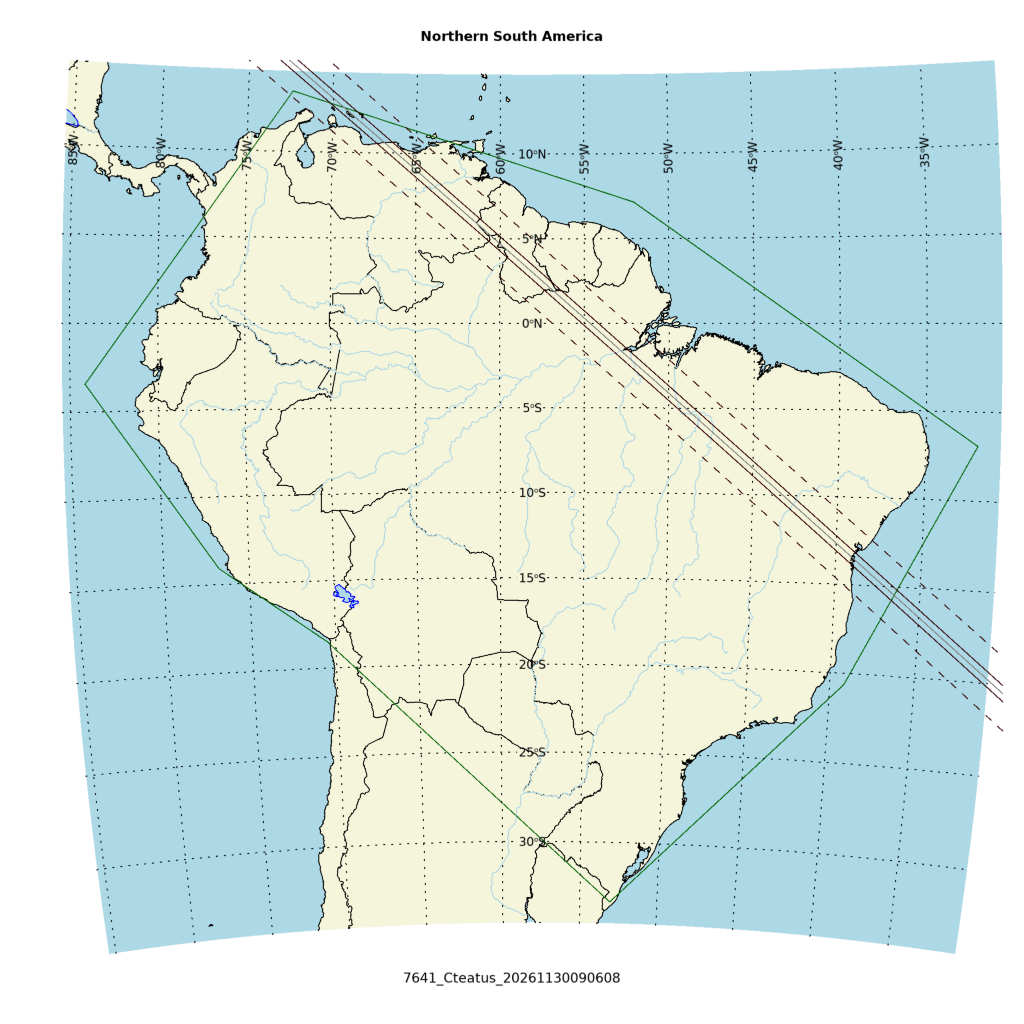

Regions able to see the event: SAmericaN

Geocentric closest approach at 2026/11/30 09:06:08 UTC

J2000 position of star is 12:57:19.4 -31:05:55
Equinox of date position of star is 12:58:47.6 -31:14:38
Star is 61 degrees from the moon. Moon is 60% illuminated.
Stellar brightness G=15.6, apparent brightess of occulting body is G=15.2
Use an exposure time of 0.50 seconds with the standard RECON-QHY system.
SNR of 3.8 per integration for unocculted signal
Expected flux drop is 41% with SNR of 1.6 for the occulted depth (per occulted point)

Apparent velocity is 33.8 km/sec on the sky relative to the star, or, 29.1 arcsec/hr.
Position angle of asteroid motion is 118.1 degrees
The recommended exposure time corresponds to 16.9 km per image.
The 1-sigma error in the time of the event is 0.6 seconds.
The 1-sigma cross-track error in the shadow position is 42.9 km.
The sky-plane scale is 4184.5 km/arcsec.

Diameter estimates:
76.6 km assuming a 5% albedo, maximum of 2.3 sec for a central chord
31.3 km assuming a 30% albedo, maximum of 0.9 sec for a central chord
Cross-track diameter of 71.8 km used for deployment plan.

Star training set for 7641_Cteatus, (2026/11/30 09:06UT)
Object            RA         Dec     mag  sep  mel
Spica          13:26:36.9 -11:18:03  1.0 20.95  57
Iot Cen        13:22:07.2 -36:51:12  2.8  7.40  68
PPM 290854     13:02:01.6 -33:39:02  6.0  2.50  63
PPM 290771     12:58:16.0 -31:13:39  8.5  0.11  61
PPM 290790     12:59:11.0 -31:14:45  9.7  0.08  61
7641_Cteatus   12:58:47.6 -31:14:38 15.2        62
Positions are for equinox of date

Azimuth is measured in degrees eastward from north. North is at an azimuth of 0, due East is at an azimuth of 90 degrees, due South is 180, and due West is 270.

Star training set for 7641_Cteatus, (2026/11/30 09:06UT)
Object            RA         Dec     mag  sep  mel
Spica          13:25:11.5 -11:09:41  1.0 20.95  57
Iot Cen        13:20:35.1 -36:42:46  2.8  7.40  68
PPM 290854     13:00:32.5 -33:30:21  6.0  2.50  63
PPM 290771     12:56:47.8 -31:04:57  8.5  0.11  61
PPM 290790     12:57:42.8 -31:06:04  9.7  0.08  61
7641_Cteatus   12:57:19.4 -31:05:55 15.2        61
Positions are for J2000


Created by recondetail.pro, 2025/06/21 10:55:31 MT
