Occultation event with (5130) Ilioneus, event index number 1278
Regions able to see the event: US,RECON
Geocentric closest approach at 2025/09/12 07:49:39 UTC
J2000 position of star is 00:32:56.5 +20:09:32
Equinox of date position of star is 00:34:17.4 +20:18:01
Star is 37 degrees from the moon. Moon is 74% illuminated.
Stellar brightness G=15.6, apparent brightess of occulting body is G=14.8
Use an exposure time of 1.05 seconds with the standard RECON-QHY system.
SNR of 6.1 per integration for unocculted signal
Expected flux drop is 32% with SNR of 2.0 for the occulted depth (per occulted point)
Apparent velocity is 13.8 km/sec on the sky relative to the star, or, 16.2 arcsec/hr.
Position angle of asteroid motion is 69.3 degrees
The recommended exposure time corresponds to 14.5 km per image.
The 1-sigma error in the time of the event is 1.0 seconds.
The 1-sigma cross-track error in the shadow position is 19.3 km.
The sky-plane scale is 3071.7 km/arcsec.
Diameter estimates:
65.8 km assuming a 5% albedo, aximum of 4.8 sec for a central chord
26.9 km assuming a 30% albedo, maximum of 1.9 sec for a central chord
Cross-track diameter of 60.7 km used for deployment plan.

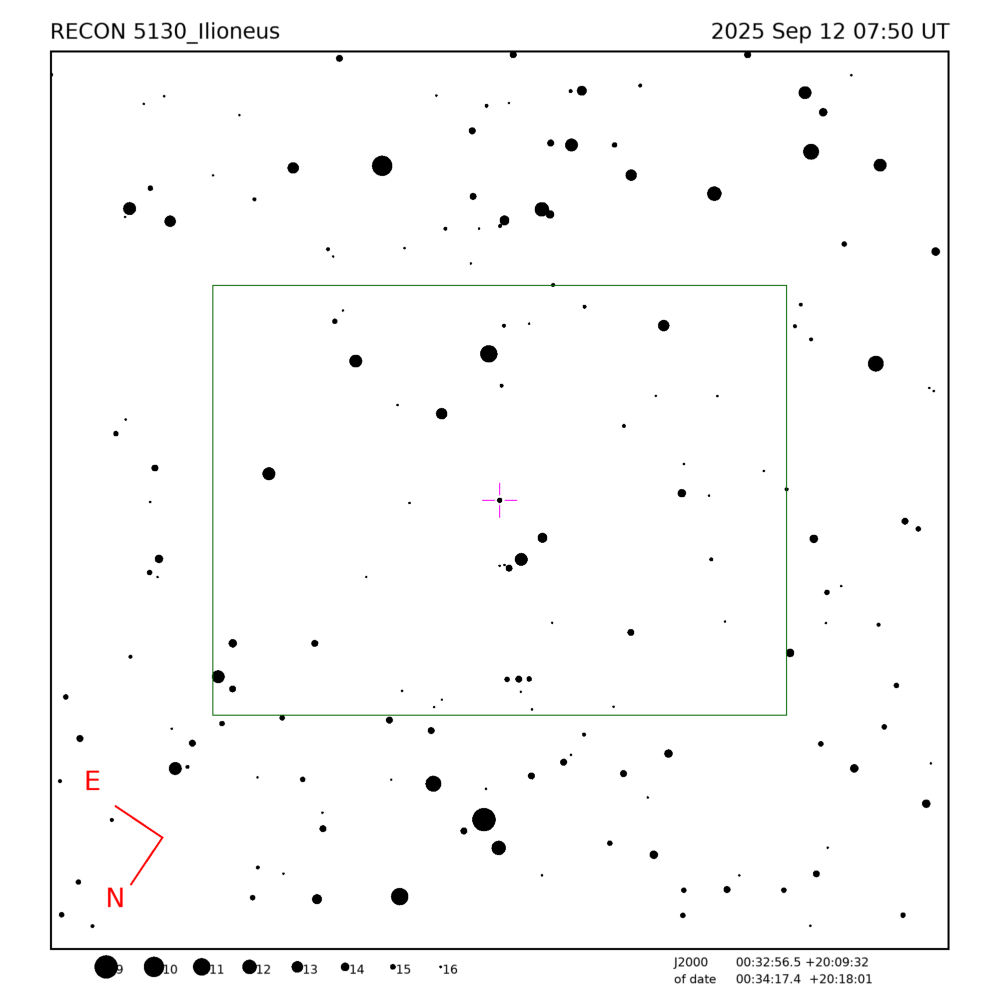

Star training set for 5130_Ilioneus, (2025/09/12 07:50UT) Object RA Dec mag sep mel Deneb 20:42:18.5 +45:22:24 1.3 53.41 79 Algenib 00:14:33.7 +15:19:35 2.8 6.84 43 52 Psc 00:33:56.6 +20:26:08 5.4 0.16 37 PPM 089911 00:35:00.5 +20:34:31 7.7 0.32 37 52 Psc 00:33:56.6 +20:26:08 5.4 0.16 37 5130_Ilioneus 00:34:17.4 +20:18:01 14.8 37 Positions are for equinox of date

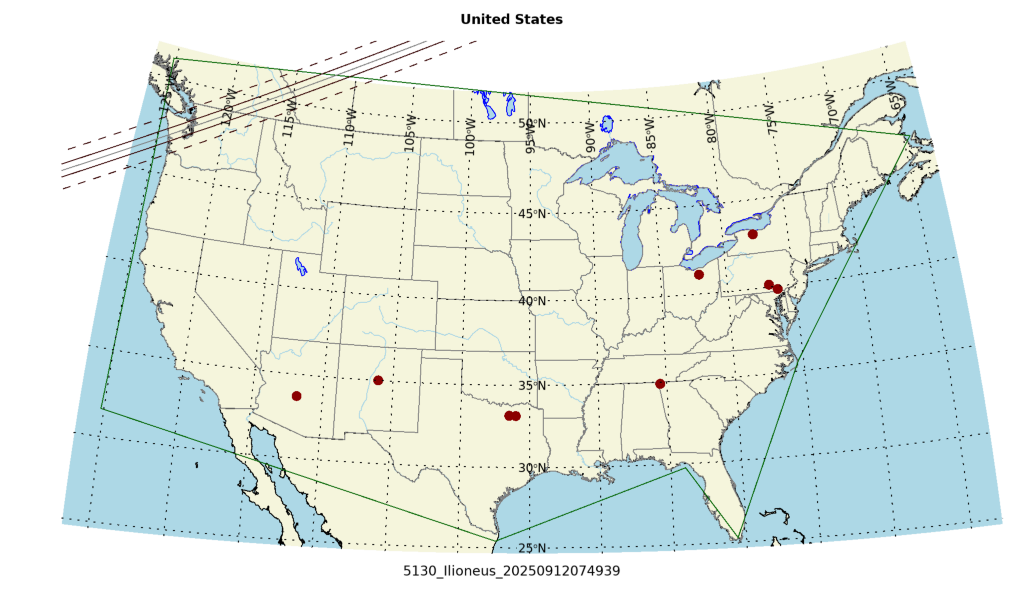

This table contains the target star visibility for registered US sites that are relevant for this occultation. This list has been filtered to only those sites that can see the field and are within range of the shadow given the uncertainties. The observing time range has been calculated to cover the time of the event at each site with allowances for the event timing uncertainty plus time for obtaining a pre and post event baseline lightcurve. This set of stations has a 0.0 % chance of getting at least one chord. There is a 0.0% chance of 2 or more chords assuming clear weather for all.
| Site Name | Site mid-time (UT) |
Sun alt (deg) |
Sky | Moon | Star alt (deg) |
Star az (deg) |
Target | Observing Time | Xtrack (km) |
Prob |
|---|---|---|---|---|---|---|---|---|---|---|

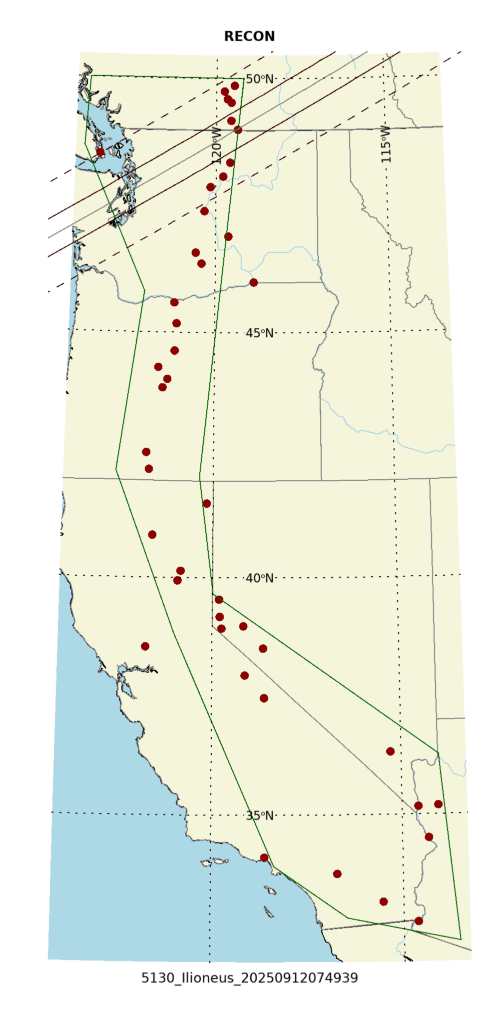

This table contains the target star visibility for registered RECON sites that are relevant for this occultation. This list has been filtered to only those sites that can see the field and are within range of the shadow given the uncertainties. The observing time range has been calculated to cover the time of the event at each site with allowances for the event timing uncertainty plus time for obtaining a pre and post event baseline lightcurve. This set of stations has a 100.0 % chance of getting at least one chord. There is a 74.7% chance of 2 or more chords assuming clear weather for all.
| Site Name | Site mid-time (UT) |
Sun alt (deg) |
Sky | Moon | Star alt (deg) |
Star az (deg) |
Target | Observing Time | Xtrack (km) |
Prob |
|---|---|---|---|---|---|---|---|---|---|---|
| Kamloops | 07:49:53 | -35.3 | Dark | Up | 55.8 | 146.0 | Up | 07:47:00-07:53:00 | 162.1 | 0.000 | Victoria | 07:50:16 | -37.3 | Dark | Up | 56.4 | 139.5 | Up | 07:47:02-07:53:02 | 89.8 | 0.000 | Peachland | 07:49:55 | -36.2 | Dark | Up | 56.8 | 146.2 | Up | 07:47:04-07:53:04 | 70.5 | 0.011 | Kelowna | 07:49:53 | -36.1 | Dark | Up | 56.8 | 146.7 | Up | 07:47:07-07:53:07 | 70.0 | 0.012 | Summerland | 07:49:55 | -36.4 | Dark | Up | 57.0 | 146.2 | Up | 07:47:12-07:53:12 | 55.7 | 0.063 | Penticton | 07:49:55 | -36.4 | Dark | Up | 57.0 | 146.3 | Up | 07:47:12-07:53:12 | 46.8 | 0.142 | Oliver | 07:49:56 | -36.8 | Dark | Up | 57.3 | 146.0 | Up | 07:47:06-07:53:06 | 18.5 | 0.642 | Anarchist Mountain Observatory | 07:49:56 | -37.0 | Dark | Up | 57.6 | 146.2 | Up | 07:47:19-07:53:19 | -1.1 | 0.823 | Okanogan | 07:50:00 | -37.6 | Dark | Up | 58.0 | 145.3 | Up | 07:47:20-07:53:20 | -46.7 | 0.143 | Brewster | 07:50:02 | -37.9 | Dark | Up | 58.2 | 144.7 | Up | 07:47:23-07:53:23 | -62.2 | 0.030 | Manson/Chelan | 07:50:04 | -38.1 | Dark | Up | 58.2 | 143.9 | Up | 07:47:26-07:53:26 | -67.3 | 0.016 | Wenatchee | 07:50:07 | -38.5 | Dark | Up | 58.5 | 143.2 | Up | 07:47:26-07:53:26 | -100.5 | 0.000 | Sleaford | 07:48:45 | -32.9 | Dark | Up | 57.8 | 170.5 | Up | 07:47:27-07:53:27 | -132.2 | 0.000 | Yakima | 07:50:12 | -39.3 | Dark | Up | 59.1 | 142.1 | Up | 07:47:35-07:53:35 | -160.0 | 0.000 | Royal City | 07:50:06 | -39.0 | Dark | Up | 59.2 | 143.9 | Up | 07:47:36-07:53:36 | -164.4 | 0.000 | Toppenish/White Swan | 07:50:12 | -39.6 | Dark | Up | 59.3 | 142.1 | Up | 07:47:31-07:53:31 | -183.6 | 0.000 |
Star training set for 5130_Ilioneus, (2025/09/12 07:50UT) Object RA Dec mag sep mel Deneb 20:41:25.9 +45:16:49 1.3 53.41 79 Algenib 00:13:14.2 +15:11:00 2.8 6.84 43 52 Psc 00:32:35.7 +20:17:38 5.4 0.16 37 PPM 089911 00:33:39.5 +20:26:02 7.7 0.32 37 52 Psc 00:32:35.7 +20:17:38 5.4 0.16 37 5130_Ilioneus 00:32:56.5 +20:09:32 14.8 37 Positions are for J2000
