Occultation event with (5120) Bitias, event index number 4218
Regions able to see the event: Japan
Geocentric closest approach at 2026/09/10 19:04:54 UTC
J2000 position of star is 04:54:26.9 +42:51:15
Equinox of date position of star is 04:56:20.8 +42:53:44
Star is 87 degrees from the moon. Moon is 0% illuminated.
Stellar brightness G=16.2, apparent brightess of occulting body is G=16.1
Use an exposure time of 0.95 seconds with the standard RECON-QHY system.
SNR of 3.9 per integration for unocculted signal
Expected flux drop is 48% with SNR of 1.9 for the occulted depth (per occulted point)
Apparent velocity is 12.3 km/sec on the sky relative to the star, or, 11.7 arcsec/hr.
Position angle of asteroid motion is 54.6 degrees
The recommended exposure time corresponds to 11.7 km per image.
The 1-sigma error in the time of the event is 1.1 seconds.
The 1-sigma cross-track error in the shadow position is 33.5 km.
The sky-plane scale is 3784.6 km/arcsec.
Diameter estimates:
50.8 km assuming a 5% albedo, maximum of 4.1 sec for a central chord
20.8 km assuming a 30% albedo, maximum of 1.7 sec for a central chord
Cross-track diameter of 48.0 km used for deployment plan.

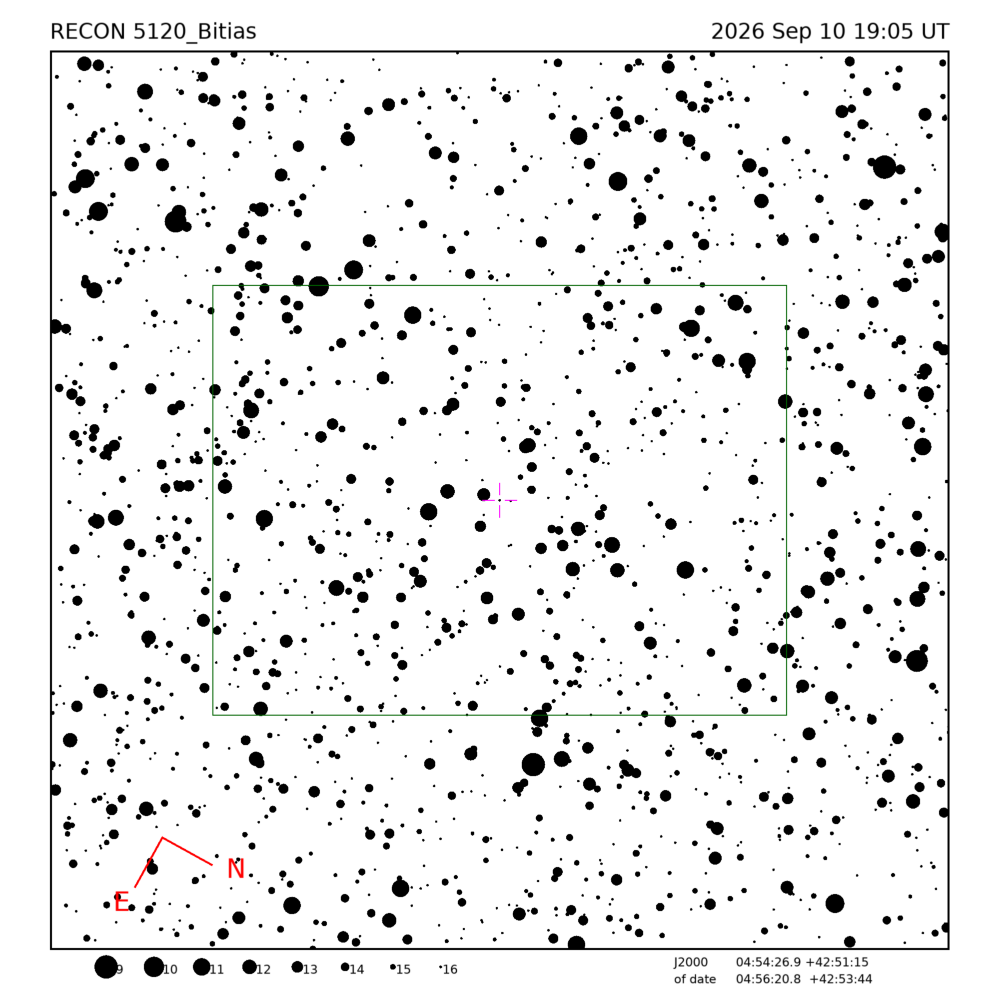

Star training set for 5120_Bitias, (2026/09/10 19:05UT) Object RA Dec mag sep mel Aldebaran 04:37:27.3 +16:33:39 0.8 26.64 94 3Iot Aur 04:58:44.2 +33:12:21 2.7 9.70 87 PPM 047447 04:54:41.2 +42:37:44 5.6 0.40 87 PPM 047487 04:56:55.7 +42:58:21 8.4 0.13 87 5120_Bitias 04:56:20.8 +42:53:44 16.1 87 Positions are for equinox of date

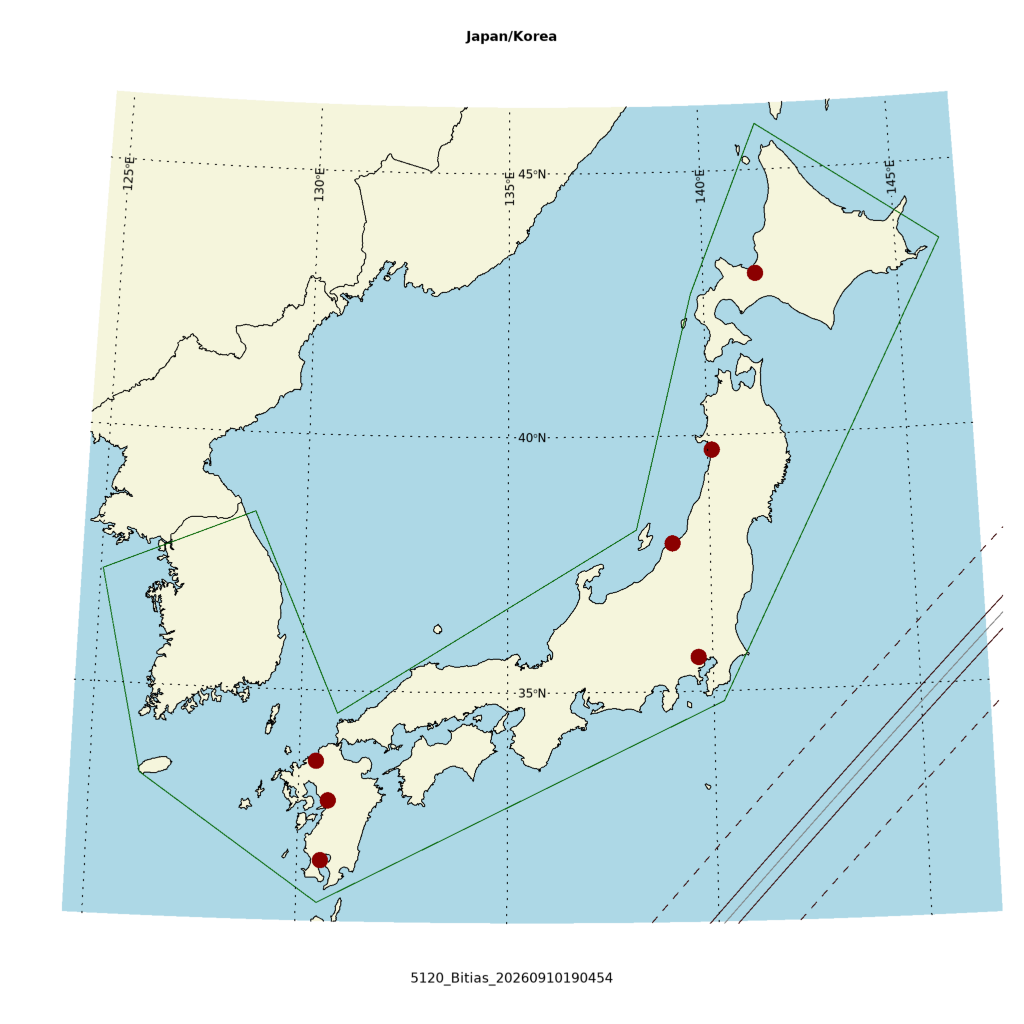

This table contains the target star visibility for registered Japan sites that are relevant for this occultation. This list has been filtered to only those sites that can see the field and are within range of the shadow given the uncertainties. The observing time range has been calculated to cover the time of the event at each site with allowances for the event timing uncertainty plus time for obtaining a pre and post event baseline lightcurve. This set of stations has a 0.0 % chance of getting at least one chord. There is a 0.0% chance of 2 or more chords assuming clear weather for all.
| Site Name | Site mid-time (UT) |
Sun alt (deg) |
Sky | Moon | Star alt (deg) |
Star az (deg) |
Target | Observing Time | Xtrack (km) |
Prob |
|---|---|---|---|---|---|---|---|---|---|---|
Star training set for 5120_Bitias, (2026/09/10 19:05UT) Object RA Dec mag sep mel Aldebaran 04:35:55.4 +16:30:29 0.8 26.64 94 3Iot Aur 04:56:59.6 +33:09:57 2.7 9.70 87 PPM 047447 04:52:47.7 +42:35:11 5.6 0.40 87 PPM 047487 04:55:01.7 +42:55:54 8.4 0.13 87 5120_Bitias 04:54:26.9 +42:51:15 16.1 87 Positions are for J2000
