Occultation event with (5120) Bitias, event index number 1685

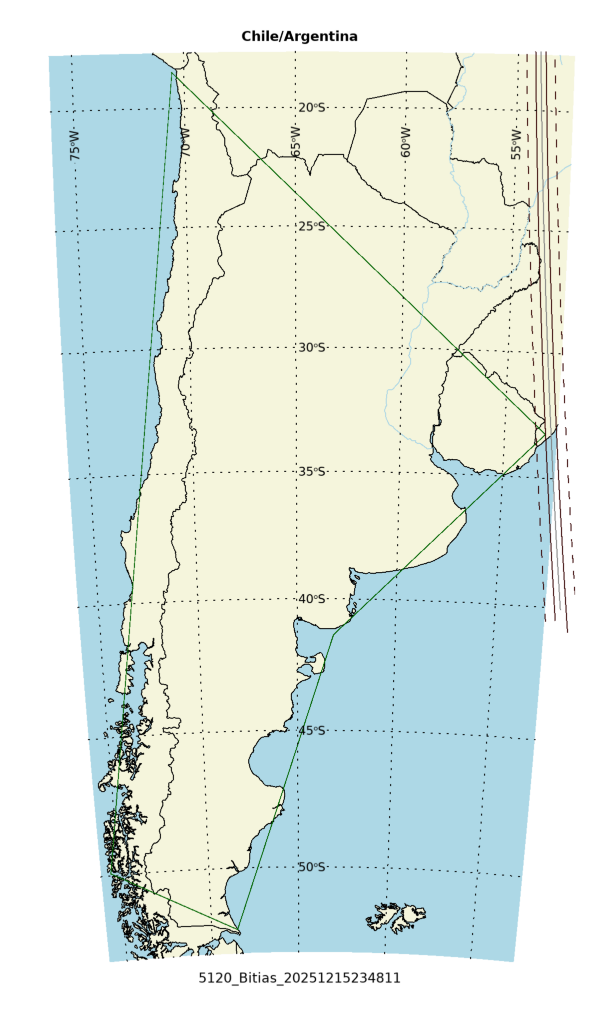

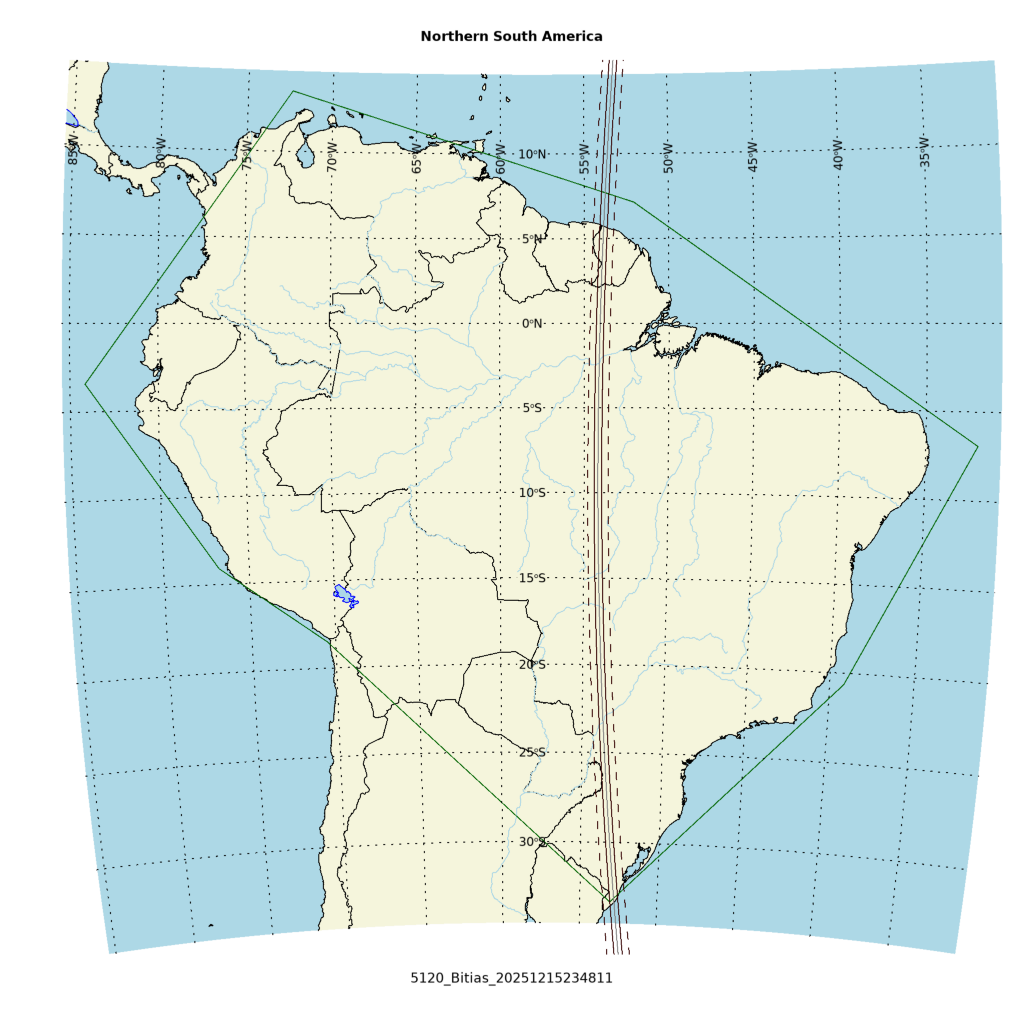

Regions able to see the event: SAmericaN,SAmericaS
Geocentric closest approach at 2025/12/15 23:48:11 UTC
J2000 position of star is 01:15:04.3 +38:02:27
Equinox of date position of star is 01:16:32.9 +38:10:39
Star is 156 degrees from the moon. Moon is 14% illuminated.
Stellar brightness G=15.6, apparent brightess of occulting body is G=15.6
Use an exposure time of 0.90 seconds with the standard RECON-QHY system.
SNR of 5.8 per integration for unocculted signal
Expected flux drop is 49% with SNR of 2.9 for the occulted depth (per occulted point)
Apparent velocity is 12.9 km/sec on the sky relative to the star, or, 14.2 arcsec/hr.
Position angle of asteroid motion is 179.9 degrees
The recommended exposure time corresponds to 11.6 km per image.
The 1-sigma error in the time of the event is 2.5 seconds.
The 1-sigma cross-track error in the shadow position is 13.7 km.
The sky-plane scale is 3254.4 km/arcsec.
Diameter estimates:
50.8 km assuming a 5% albedo, aximum of 4.0 sec for a central chord
20.8 km assuming a 30% albedo, maximum of 1.6 sec for a central chord
Cross-track diameter of 48.0 km used for deployment plan.

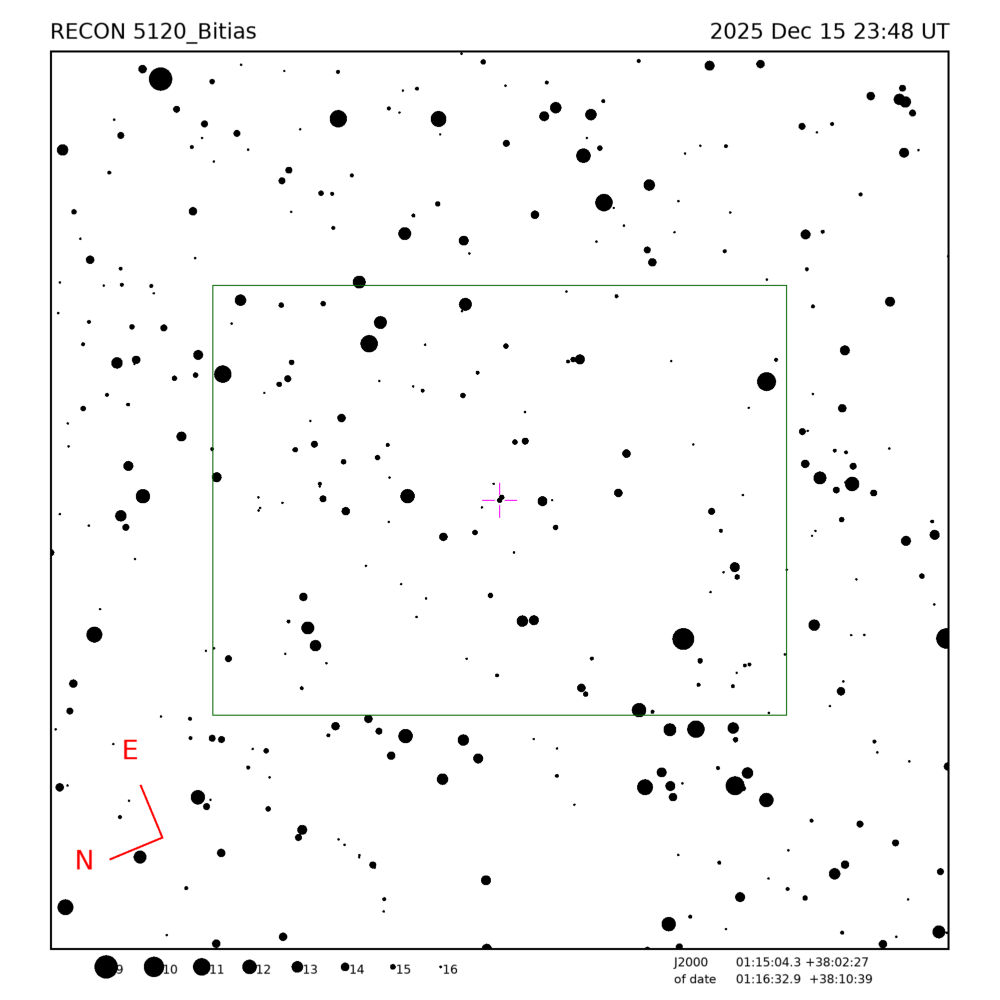

Star training set for 5120_Bitias, (2025/12/15 23:48UT) Object RA Dec mag sep mel Aldebaran 04:37:24.8 +16:33:34 0.8 48.83 149 57Gam1And 02:05:30.3 +42:27:11 2.3 10.25 156 45 And 01:12:38.4 +37:51:42 5.7 0.83 155 PPM 066134 01:18:26.1 +38:35:49 8.3 0.56 155 PPM 066122 01:17:37.9 +38:03:07 9.8 0.25 156 PPM 066093 01:16:03.0 +38:07:13 10.2 0.11 156 5120_Bitias 01:16:32.9 +38:10:39 15.6 156 Positions are for equinox of date
This table contains the target star visibility for registered SAmericaS sites that are relevant for this occultation. This list has been filtered to only those sites that can see the field and are within range of the shadow given the uncertainties. The observing time range has been calculated to cover the time of the event at each site with allowances for the event timing uncertainty plus time for obtaining a pre and post event baseline lightcurve. This set of stations has a 0.0 % chance of getting at least one chord. There is a 0.0% chance of 2 or more chords assuming clear weather for all.
| Site Name | Site mid-time (UT) |
Sun alt (deg) |
Sky | Moon | Star alt (deg) |
Star az (deg) |
Target | Observing Time | Xtrack (km) |
Prob |
|---|---|---|---|---|---|---|---|---|---|---|
Star training set for 5120_Bitias, (2025/12/15 23:48UT) Object RA Dec mag sep mel Aldebaran 04:35:55.4 +16:30:29 0.8 48.83 149 57Gam1And 02:03:54.1 +42:19:46 2.3 10.25 156 45 And 01:11:10.2 +37:43:27 5.7 0.83 155 PPM 066134 01:16:57.1 +38:27:38 8.3 0.56 155 PPM 066122 01:16:09.2 +37:54:56 9.8 0.25 156 PPM 066093 01:14:34.4 +37:59:00 10.2 0.11 156 5120_Bitias 01:15:04.3 +38:02:27 15.6 156 Positions are for J2000
