RECON observing guide for 5120_Bitias_20251126173120

Occultation event with (5120) Bitias, event index number 1596

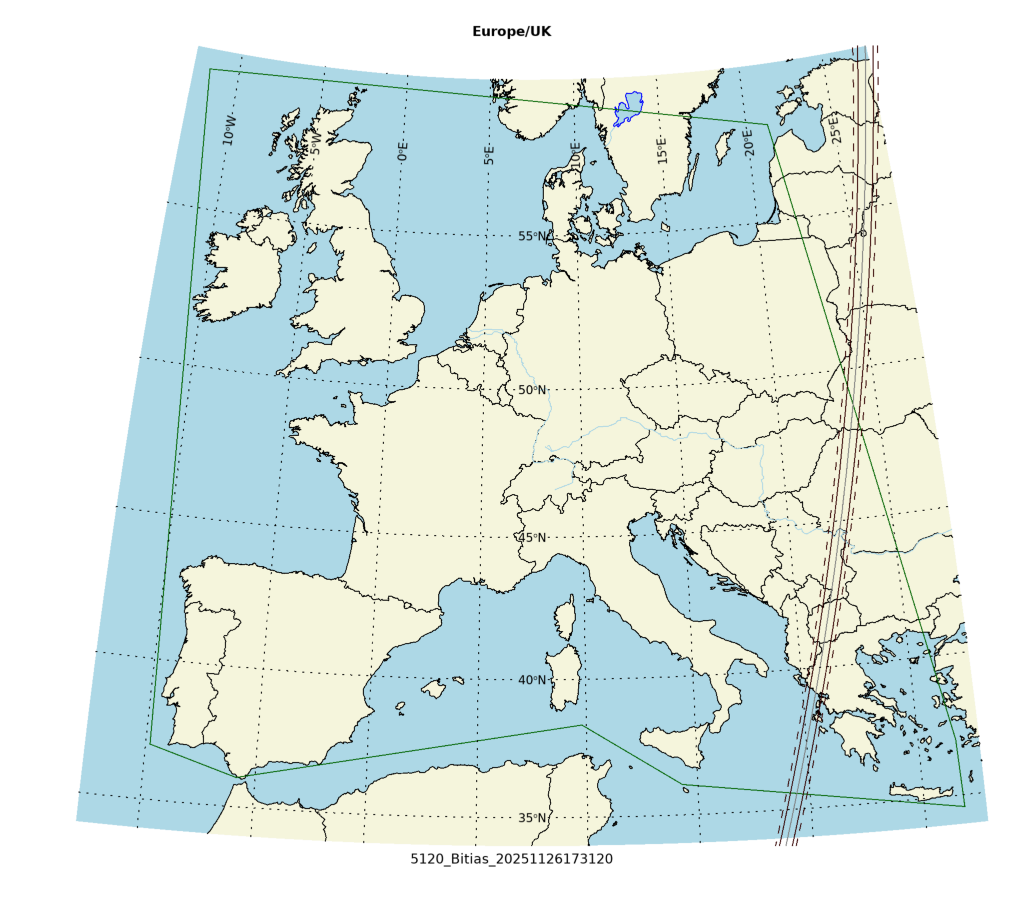

Regions able to see the event: Europe

Geocentric closest approach at 2025/11/26 17:31:20 UTC

J2000 position of star is 01:18:04.9 +39:56:46
Equinox of date position of star is 01:19:34.4 +40:04:55
Star is 81 degrees from the moon. Moon is 34% illuminated.
Stellar brightness G=16.2, apparent brightess of occulting body is G=15.4
Use an exposure time of 0.75 seconds with the standard RECON-QHY system.
SNR of 3.0 per integration for unocculted signal
Expected flux drop is 32% with SNR of 1.0 for the occulted depth (per occulted point)

Apparent velocity is 15.0 km/sec on the sky relative to the star, or, 17.4 arcsec/hr.
Position angle of asteroid motion is 30.9 degrees
The recommended exposure time corresponds to 11.3 km per image.
The 1-sigma error in the time of the event is 2.3 seconds.
The 1-sigma cross-track error in the shadow position is 4.9 km.
The sky-plane scale is 3116.2 km/arcsec.

Diameter estimates:
50.8 km assuming a 5% albedo, aximum of 3.4 sec for a central chord
20.8 km assuming a 30% albedo, maximum of 1.4 sec for a central chord
Cross-track diameter of 48.0 km used for deployment plan.

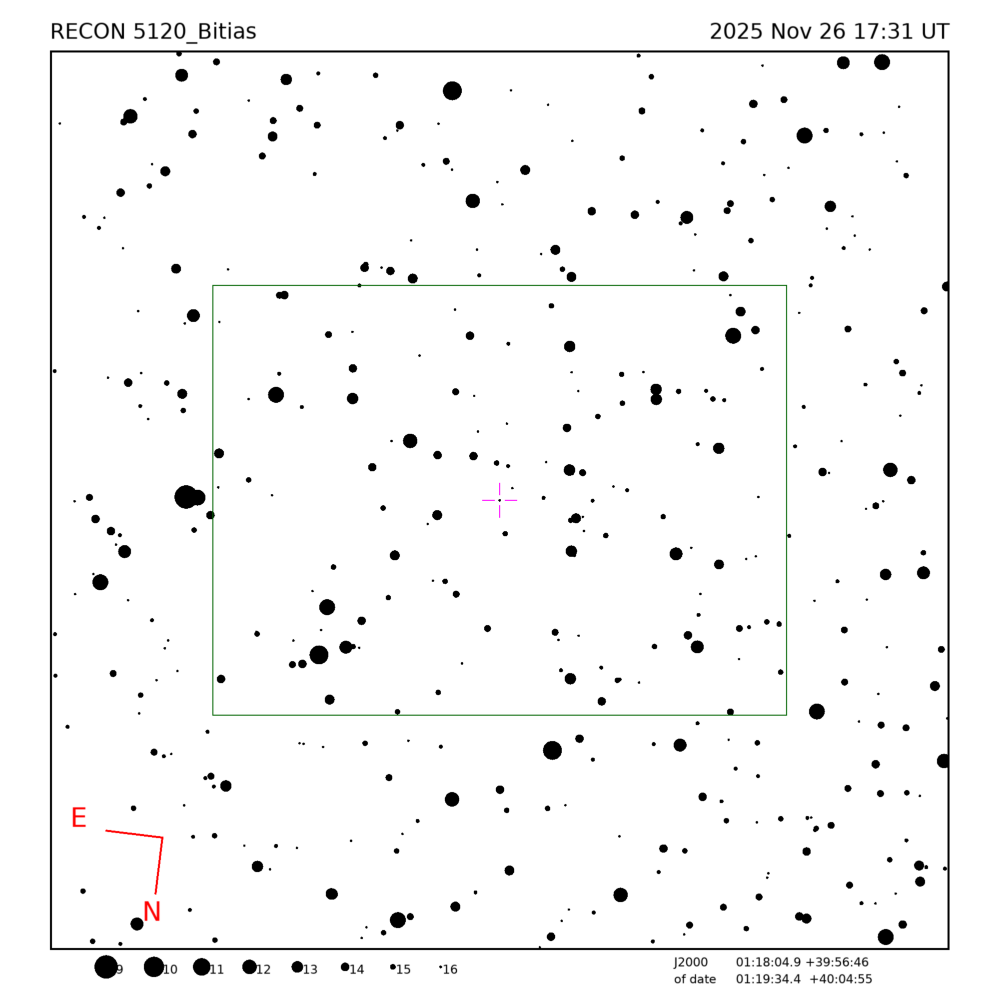

Star training set for 5120_Bitias, (2025/11/26 17:31UT)
Object            RA         Dec     mag  sep  mel
Aldebaran      04:37:24.6 +16:33:33  0.8 48.68 113
57Gam1And      02:05:30.1 +42:27:10  2.3  8.94  89
PPM 044012     01:29:17.6 +40:28:10  6.3  1.89  82
PPM 066156     01:20:22.7 +40:05:55  7.9  0.15  81
5120_Bitias    01:19:34.4 +40:04:55 15.4        81
Positions are for equinox of date

Azimuth is measured in degrees eastward from north. North is at an azimuth of 0, due East is at an azimuth of 90 degrees, due South is 180, and due West is 270.

Star training set for 5120_Bitias, (2025/11/26 17:31UT)
Object            RA         Dec     mag  sep  mel
Aldebaran      04:35:55.4 +16:30:29  0.8 48.68 113
57Gam1And      02:03:54.1 +42:19:46  2.3  8.94  89
PPM 044012     01:27:46.9 +40:20:09  6.3  1.89  82
PPM 066156     01:18:53.2 +39:57:47  7.9  0.15  81
5120_Bitias    01:18:04.9 +39:56:46 15.4        81
Positions are for J2000


Created by recondetail.pro, 2025/05/29 11:11:20 MT
