Occultation event with (5023) Agapenor, event index number 1590

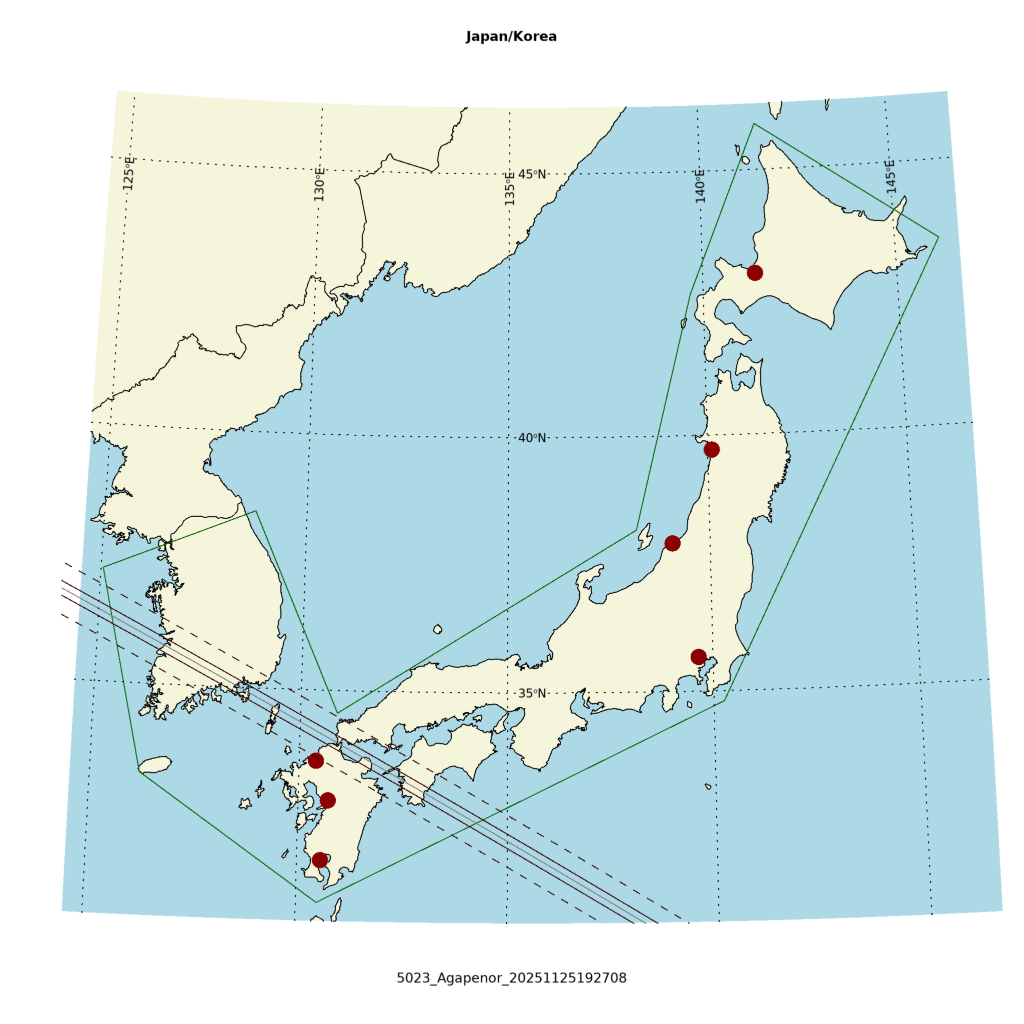

Regions able to see the event: Japan
Geocentric closest approach at 2025/11/25 19:27:08 UTC
J2000 position of star is 11:06:31.9 -00:22:30
Equinox of date position of star is 11:07:51.5 -00:30:55
Star is 136 degrees from the moon. Moon is 26% illuminated.
Stellar brightness G=14.7, apparent brightess of occulting body is G=16.2
Use an exposure time of 0.30 seconds with the standard RECON-QHY system.
SNR of 6.1 per integration for unocculted signal
Expected flux drop is 80% with SNR of 4.9 for the occulted depth (per occulted point)
Apparent velocity is 20.1 km/sec on the sky relative to the star, or, 18.3 arcsec/hr.
Position angle of asteroid motion is 127.1 degrees
The recommended exposure time corresponds to 6.0 km per image.
The 1-sigma error in the time of the event is 1.6 seconds.
The 1-sigma cross-track error in the shadow position is 12.0 km.
The sky-plane scale is 3948.9 km/arcsec.
Diameter estimates:
49.4 km assuming a 5% albedo, aximum of 2.5 sec for a central chord
20.2 km assuming a 30% albedo, maximum of 1.0 sec for a central chord
Cross-track diameter of 27.9 km used for deployment plan.

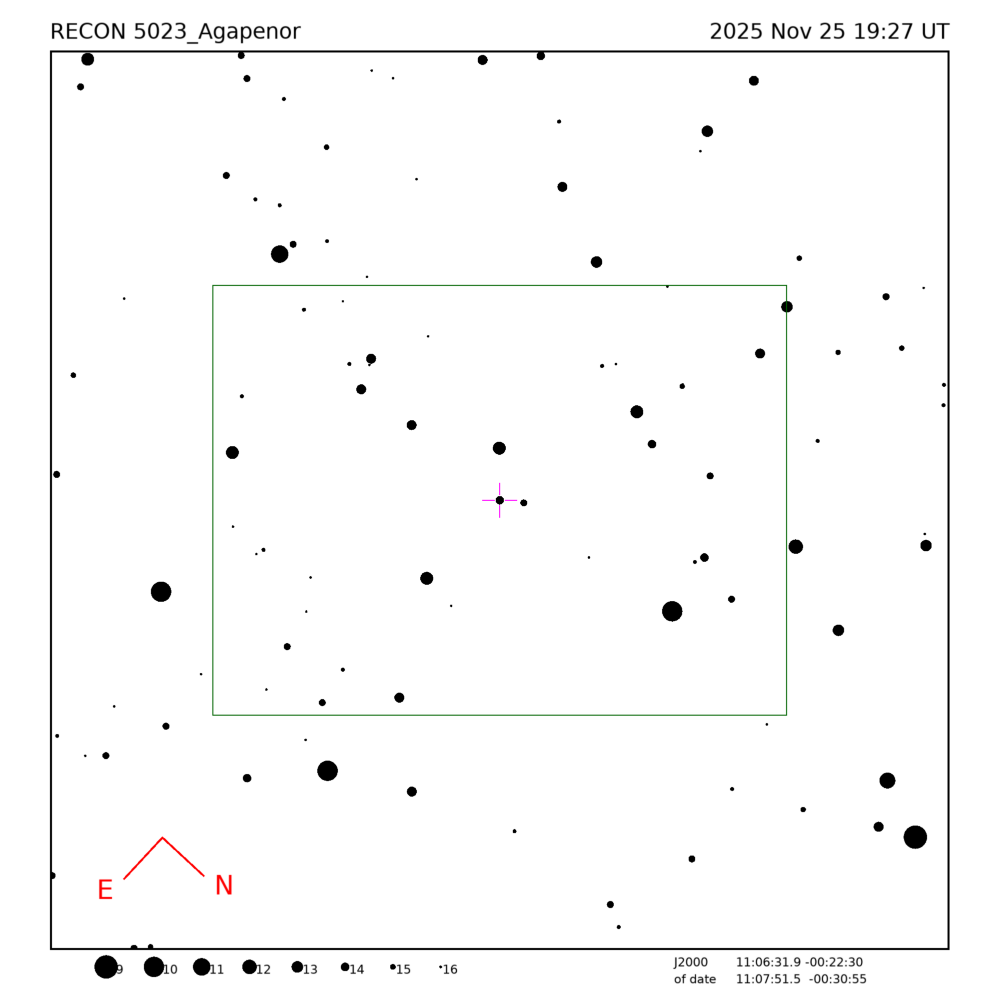

Star training set for 5023_Agapenor, (2025/11/25 19:27UT) Object RA Dec mag sep mel Regulus 10:09:44.9 +11:50:23 1.3 18.99 155 Denebola 11:50:22.8 +14:25:38 2.1 18.27 133 PPM 178367 11:04:34.1 -00:53:36 6.2 0.91 137 PPM 178386 11:07:47.2 -00:15:06 7.7 0.26 136 PPM 178385 11:07:47.3 -00:24:56 9.9 0.10 136 5023_Agapenor 11:07:51.5 -00:30:55 16.2 136 Positions are for equinox of date
This table contains the target star visibility for registered Japan sites that are relevant for this occultation. This list has been filtered to only those sites that can see the field and are within range of the shadow given the uncertainties. The observing time range has been calculated to cover the time of the event at each site with allowances for the event timing uncertainty plus time for obtaining a pre and post event baseline lightcurve. This set of stations has a 0.0 % chance of getting at least one chord. There is a 0.0% chance of 2 or more chords assuming clear weather for all.
| Site Name | Site mid-time (UT) |
Sun alt (deg) |
Sky | Moon | Star alt (deg) |
Star az (deg) |
Target | Observing Time | Xtrack (km) |
Prob |
|---|---|---|---|---|---|---|---|---|---|---|
| Fukuoka | 19:23:07 | -32.3 | Dark | Down | 39.1 | 123.3 | Up | 19:20:10-19:26:10 | -57.1 | 0.000 | Kumamoto | 19:23:08 | -31.9 | Dark | Down | 39.7 | 123.1 | Up | 19:20:08-19:26:08 | -120.3 | 0.000 |
Star training set for 5023_Agapenor, (2025/11/25 19:27UT) Object RA Dec mag sep mel Regulus 10:08:21.9 +11:58:02 1.3 18.99 155 Denebola 11:49:02.7 +14:34:16 2.1 18.27 133 PPM 178367 11:03:14.5 -00:45:12 6.2 0.91 137 PPM 178386 11:06:27.6 -00:06:41 7.7 0.26 136 PPM 178385 11:06:27.6 -00:16:31 9.9 0.10 136 5023_Agapenor 11:06:31.9 -00:22:30 16.2 136 Positions are for J2000
