RECON observing guide for 4057_Demophon_20260728213917

Occultation event with (4057) Demophon, event index number 3901

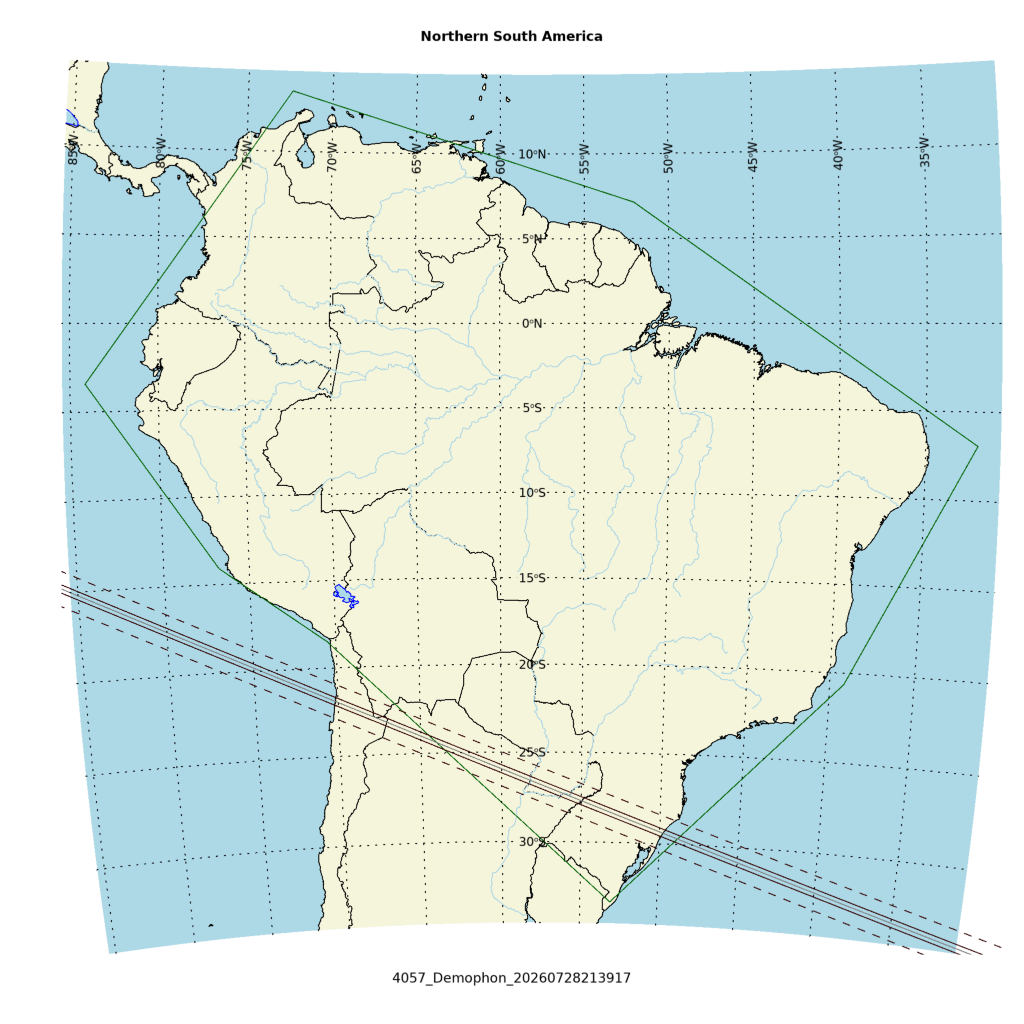

Regions able to see the event: SAmericaN

Geocentric closest approach at 2026/07/28 21:39:17 UTC

J2000 position of star is 11:48:04.1 +02:13:23
Equinox of date position of star is 11:49:25.9 +02:04:31
Star is 122 degrees from the moon. Moon is 99% illuminated.
Stellar brightness G=14.4, apparent brightess of occulting body is G=16.1
Use an exposure time of 0.35 seconds with the standard RECON-QHY system.
SNR of 8.3 per integration for unocculted signal
Expected flux drop is 83% with SNR of 6.9 for the occulted depth (per occulted point)

Apparent velocity is 31.6 km/sec on the sky relative to the star, or, 26.8 arcsec/hr.
Position angle of asteroid motion is 115.1 degrees
The recommended exposure time corresponds to 11.0 km per image.
The 1-sigma error in the time of the event is 1.0 seconds.
The 1-sigma cross-track error in the shadow position is 24.7 km.
The sky-plane scale is 4240.5 km/arcsec.

Diameter estimates:
53.2 km assuming a 5% albedo, maximum of 1.7 sec for a central chord
21.7 km assuming a 30% albedo, maximum of 0.7 sec for a central chord
Cross-track diameter of 45.7 km used for deployment plan.

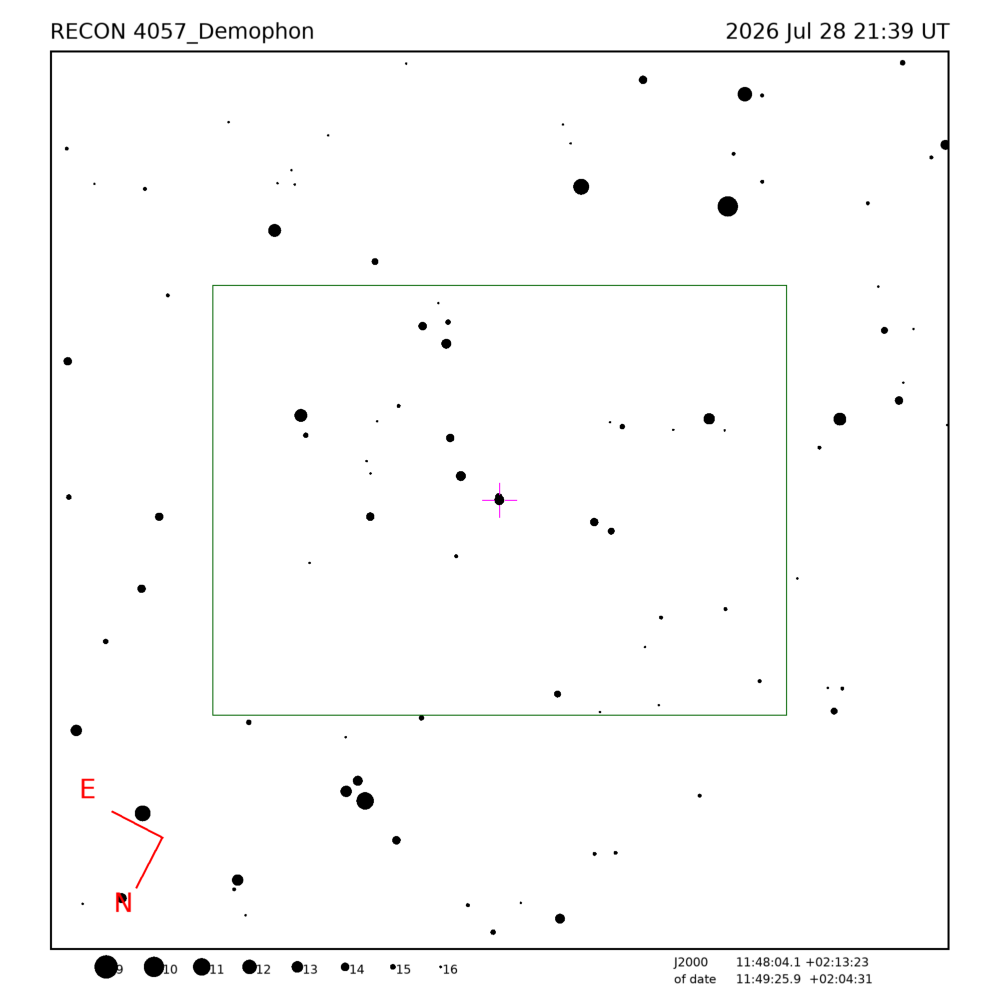

Star training set for 4057_Demophon, (2026/07/28 21:39UT)
Object            RA         Dec     mag  sep  mel
Regulus        10:09:47.1 +11:50:11  1.3 26.55 148
Denebola       11:50:24.8 +14:25:24  2.1 12.35 126
5Bet Vir       11:52:04.7 +01:36:54  3.6  0.81 121
PPM 158245     11:51:08.5 +02:05:02  8.0  0.43 121
PPM 158212     11:48:47.3 +01:51:56  8.9  0.26 122
4057_Demophon  11:49:25.9 +02:04:31 16.1       121
Positions are for equinox of date

Azimuth is measured in degrees eastward from north. North is at an azimuth of 0, due East is at an azimuth of 90 degrees, due South is 180, and due West is 270.

Star training set for 4057_Demophon, (2026/07/28 21:39UT)
Object            RA         Dec     mag  sep  mel
Regulus        10:08:21.9 +11:58:02  1.3 26.55 148
Denebola       11:49:02.7 +14:34:16  2.1 12.35 126
5Bet Vir       11:50:43.0 +01:45:46  3.6  0.81 121
PPM 158245     11:49:46.7 +02:13:54  8.0  0.43 121
PPM 158212     11:47:25.5 +02:00:48  8.9  0.26 122
4057_Demophon  11:48:04.1 +02:13:23 16.1       122
Positions are for J2000


Created by recondetail.pro, 2025/06/19 18:25:37 MT
