RECON observing guide for 3451_Mentor_20260905103030

Occultation event with (3451) Mentor, event index number 4184

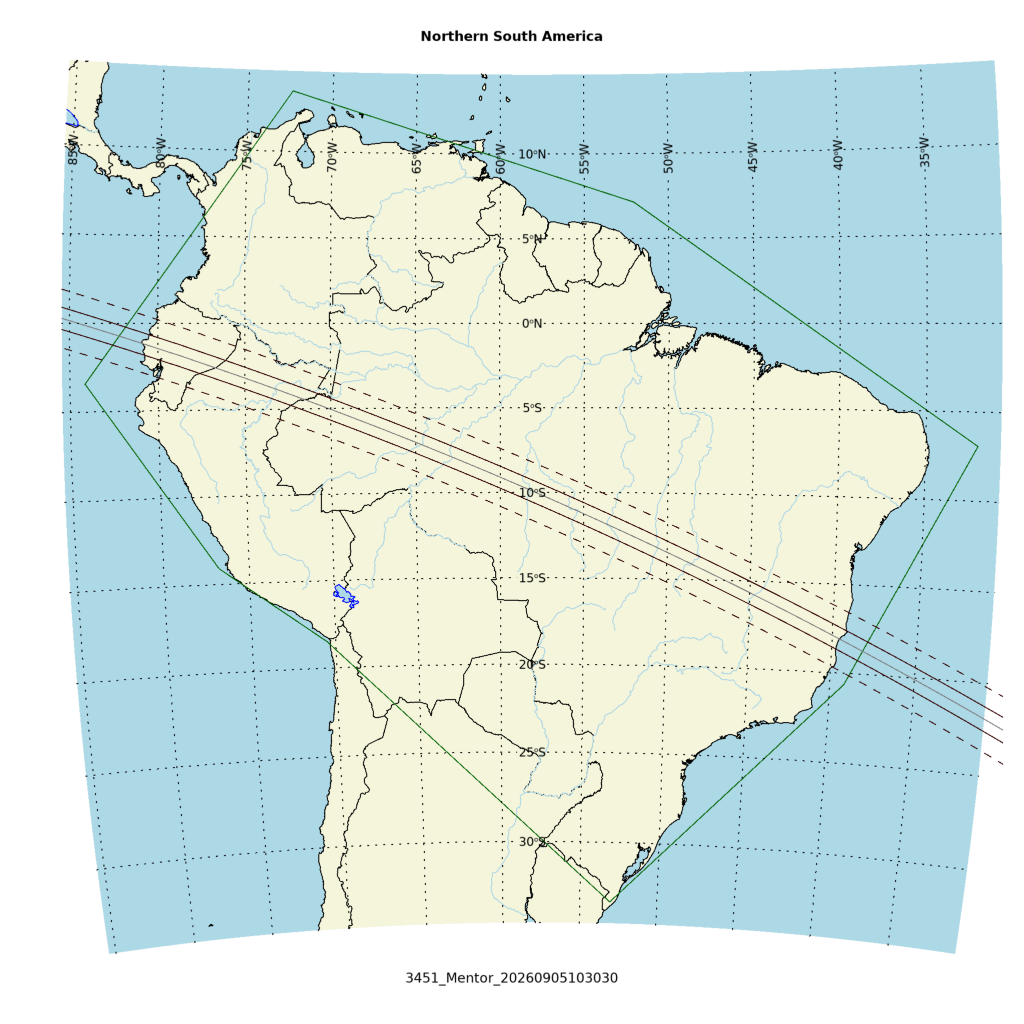

Regions able to see the event: SAmericaN

Geocentric closest approach at 2026/09/05 10:30:30 UTC

J2000 position of star is 06:50:03.7 +00:07:46
Equinox of date position of star is 06:51:25.8 +00:05:49
Star is 32 degrees from the moon. Moon is 37% illuminated.
Stellar brightness G=13.3, apparent brightess of occulting body is G=14.4
Use an exposure time of 0.15 seconds with the standard RECON-QHY system.
SNR of 9.6 per integration for unocculted signal
Expected flux drop is 73% with SNR of 7.0 for the occulted depth (per occulted point)

Apparent velocity is 28.3 km/sec on the sky relative to the star, or, 23.9 arcsec/hr.
Position angle of asteroid motion is 113.2 degrees
The recommended exposure time corresponds to 4.2 km per image.
The 1-sigma error in the time of the event is 0.5 seconds.
The 1-sigma cross-track error in the shadow position is 34.4 km.
The sky-plane scale is 4265.7 km/arcsec.

Diameter estimates:
122.5 km assuming a 5% albedo, maximum of 4.3 sec for a central chord
50.0 km assuming a 30% albedo, maximum of 1.8 sec for a central chord
Cross-track diameter of 126.3 km used for deployment plan.

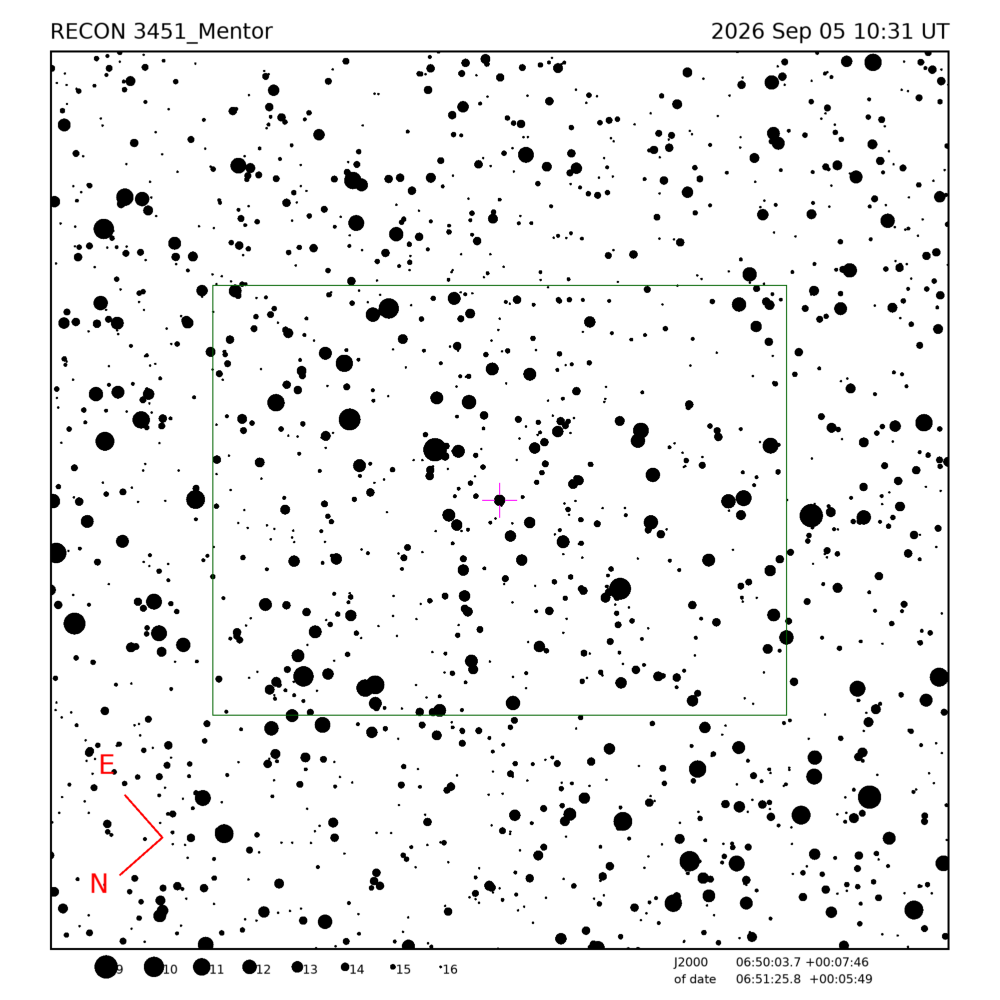

Star training set for 3451_Mentor, (2026/09/05 10:31UT)
Object            RA         Dec     mag  sep  mel
Betelgeuse     05:56:37.0 +07:24:35  0.4 15.50  21
Alhena         06:39:15.2 +16:22:27  1.9 16.55  16
PPM 151313     06:50:26.3 +00:58:12  5.9  0.91  31
PPM 151351     06:51:35.4 +00:06:16  8.5  0.04  32
3451_Mentor    06:51:25.8 +00:05:49 14.4        32
Positions are for equinox of date

Azimuth is measured in degrees eastward from north. North is at an azimuth of 0, due East is at an azimuth of 90 degrees, due South is 180, and due West is 270.

Star training set for 3451_Mentor, (2026/09/05 10:31UT)
Object            RA         Dec     mag  sep  mel
Betelgeuse     05:55:10.3 +07:24:26  0.4 15.50  21
Alhena         06:37:42.8 +16:23:56  1.9 16.55  16
PPM 151313     06:49:03.7 +01:00:07  5.9  0.91  31
PPM 151351     06:50:13.3 +00:08:14  8.5  0.04  32
3451_Mentor    06:50:03.7 +00:07:46 14.4        32
Positions are for J2000


Created by recondetail.pro, 2025/06/20 02:31:52 MT
