RECON observing guide for 3240_Laocoon_20260208010101

Occultation event with (3240) Laocoon, event index number 3225

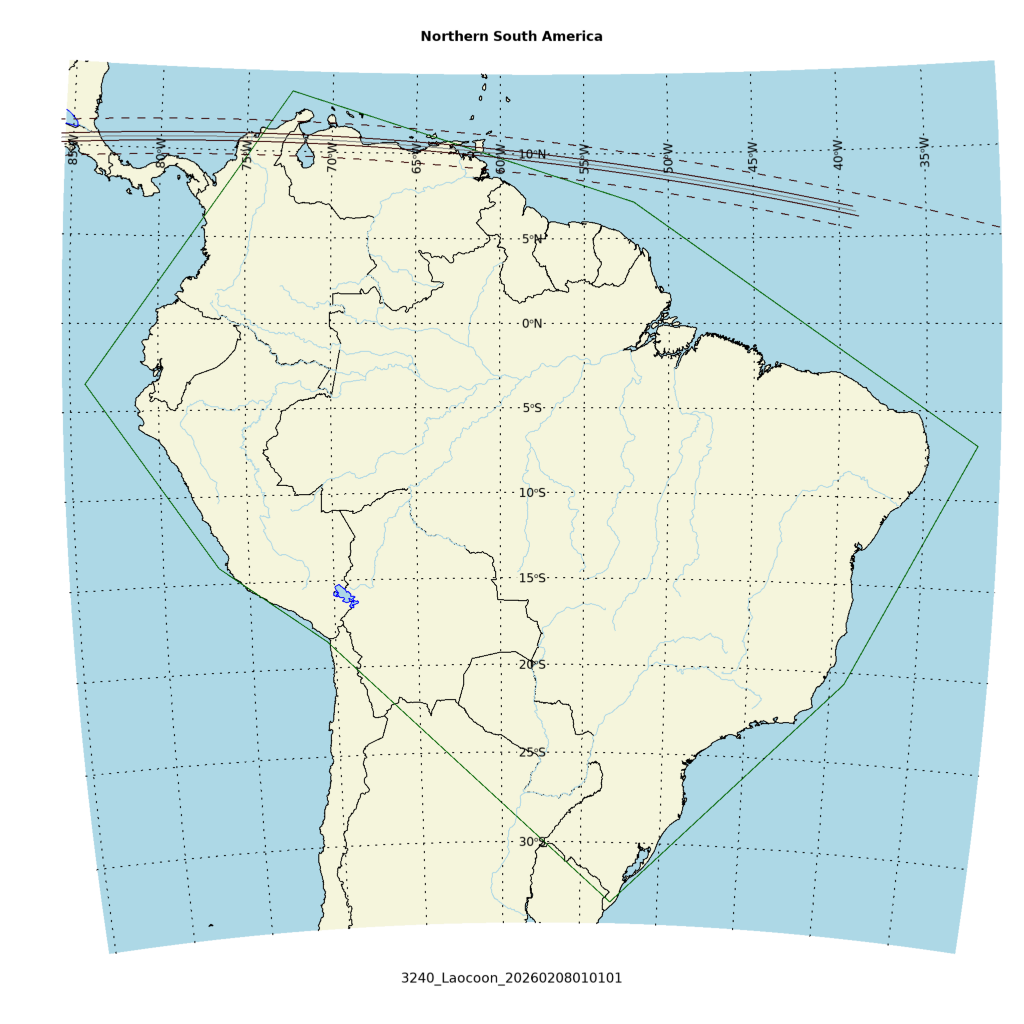

Regions able to see the event: SAmericaN

Geocentric closest approach at 2026/02/08 01:01:01 UTC

J2000 position of star is 02:18:59.2 +16:07:33
Equinox of date position of star is 02:20:25.3 +16:14:42
Star is 175 degrees from the moon. Moon is 64% illuminated.
Stellar brightness G=14.8, apparent brightess of occulting body is G=16.0
Use an exposure time of 0.65 seconds with the standard RECON-QHY system.
SNR of 9.3 per integration for unocculted signal
Expected flux drop is 74% with SNR of 6.9 for the occulted depth (per occulted point)

Apparent velocity is 18.6 km/sec on the sky relative to the star, or, 17.4 arcsec/hr.
Position angle of asteroid motion is 74.6 degrees
The recommended exposure time corresponds to 12.1 km per image.
The 1-sigma error in the time of the event is 1.0 seconds.
The 1-sigma cross-track error in the shadow position is 27.7 km.
The sky-plane scale is 3844.2 km/arcsec.

Diameter estimates:
52.7 km assuming a 5% albedo, maximum of 2.8 sec for a central chord
21.5 km assuming a 30% albedo, maximum of 1.2 sec for a central chord
Cross-track diameter of 51.7 km used for deployment plan.

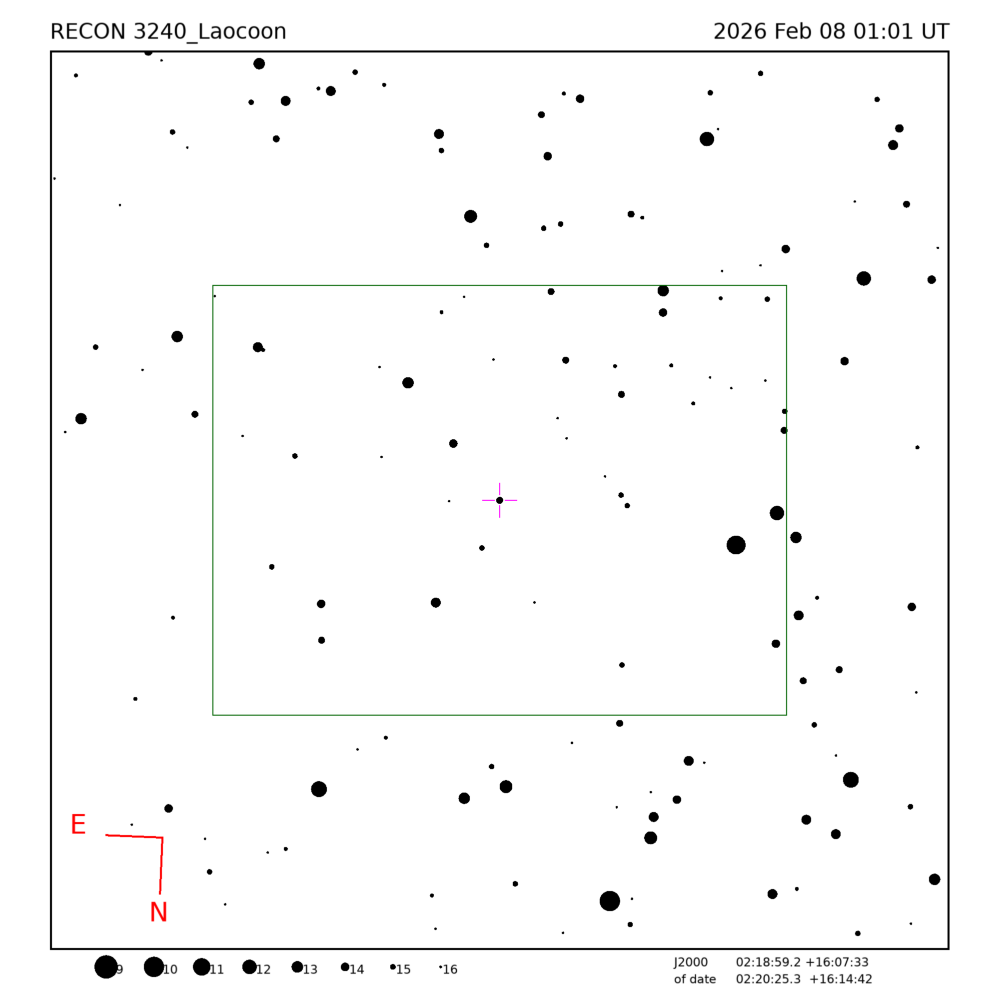

Star training set for 3240_Laocoon, (2026/02/08 01:01UT)
Object            RA         Dec     mag  sep  mel
Aldebaran      04:37:25.3 +16:33:35  0.8 32.82 142
6Bet Ari       01:56:05.3 +20:56:04  2.6  7.43 176
19 Ari         02:14:29.0 +15:24:03  5.7  1.66 176
PPM 118153     02:23:16.6 +16:16:50  8.4  0.69 174
PPM 118131     02:21:23.1 +16:21:16 10.0  0.26 174
3240_Laocoon   02:20:25.3 +16:14:42 16.0       174
Positions are for equinox of date

Azimuth is measured in degrees eastward from north. North is at an azimuth of 0, due East is at an azimuth of 90 degrees, due South is 180, and due West is 270.

Star training set for 3240_Laocoon, (2026/02/08 01:01UT)
Object            RA         Dec     mag  sep  mel
Aldebaran      04:35:55.4 +16:30:29  0.8 32.82 142
6Bet Ari       01:54:38.6 +20:48:26  2.6  7.43 176
19 Ari         02:13:03.5 +15:16:47  5.7  1.66 176
PPM 118153     02:21:50.4 +16:09:45  8.4  0.69 174
PPM 118131     02:19:57.0 +16:14:09 10.0  0.26 174
3240_Laocoon   02:18:59.2 +16:07:33 16.0       175
Positions are for J2000


Created by recondetail.pro, 2025/06/18 20:40:10 MT
