RECON observing guide for 23135_Pheidas_20260412022341

Occultation event with (23135) Pheidas, event index number 3616
Regions able to see the event: SAmericaS

Geocentric closest approach at 2026/04/12 02:23:41 UTC

J2000 position of star is 12:07:31.1 -21:56:58
Equinox of date position of star is 12:08:52.4 -22:05:44
Star is 120 degrees from the moon. Moon is 32% illuminated.
Stellar brightness G=16.5, apparent brightess of occulting body is G=14.8
Use an exposure time of 1.30 seconds with the standard RECON-QHY system.
SNR of 3.0 per integration for unocculted signal
Expected flux drop is 17% with SNR of 0.5 for the occulted depth (per occulted point)

Apparent velocity is 16.2 km/sec on the sky relative to the star, or, 19.5 arcsec/hr.
Position angle of asteroid motion is 126.9 degrees
The recommended exposure time corresponds to 21.1 km per image.
The 1-sigma error in the time of the event is 2.2 seconds.
The 1-sigma cross-track error in the shadow position is 24.7 km.
The sky-plane scale is 2988.9 km/arcsec.

Diameter estimates:
60.0 km assuming a 5% albedo, maximum of 3.7 sec for a central chord
24.5 km assuming a 30% albedo, maximum of 1.5 sec for a central chord
Cross-track diameter of 66.2 km used for deployment plan.

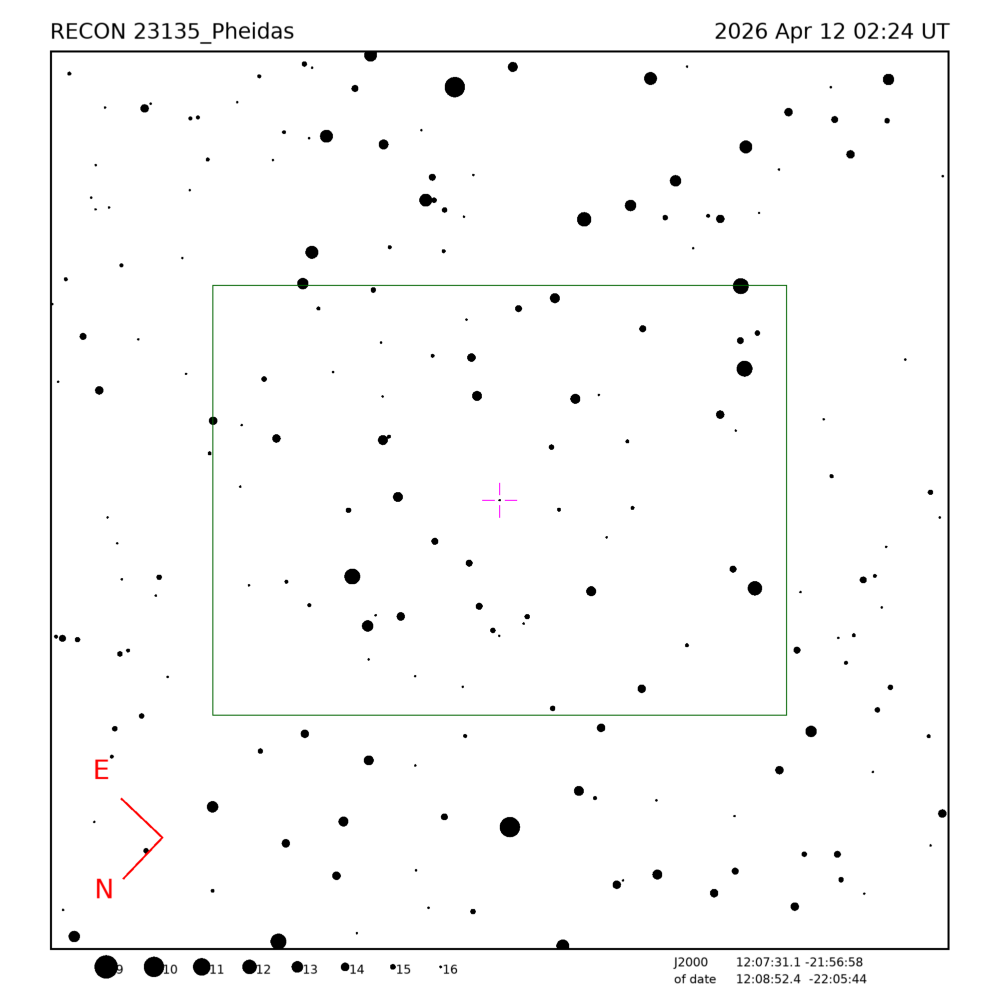

Star training set for 23135_Pheidas, (2026/04/12 02:24UT)
Object            RA         Dec     mag  sep  mel
Spica          13:26:34.9 -11:17:52  1.0 21.48 110
4Gam Crv       12:17:09.7 -17:41:16  2.6  4.82 121
2Eps Crv       12:11:28.9 -22:45:57  3.0  0.90 119
PPM 259884     12:08:33.2 -22:31:01  7.9  0.43 120
PPM 259907     12:09:33.0 -22:13:42  9.9  0.21 120
23135_Pheidas  12:08:52.4 -22:05:44 14.8       120
Positions are for equinox of date

Azimuth is measured in degrees eastward from north. North is at an azimuth of 0, due East is at an azimuth of 90 degrees, due South is 180, and due West is 270.

Star training set for 23135_Pheidas, (2026/04/12 02:24UT)
Object            RA         Dec     mag  sep  mel
Spica          13:25:11.5 -11:09:41  1.0 21.48 110
4Gam Crv       12:15:48.1 -17:32:30  2.6  4.82 121
2Eps Crv       12:10:07.4 -22:37:11  3.0  0.90 119
PPM 259884     12:07:11.9 -22:22:14  7.9  0.43 120
PPM 259907     12:08:11.6 -22:04:56  9.9  0.21 120
23135_Pheidas  12:07:31.1 -21:56:58 14.8       120
Positions are for J2000


Created by recondetail.pro, 2025/06/19 09:42:38 MT
