RECON observing guide for 22149_00WD49_20251226045116

Occultation event with (22149) 00WD49, event index number 1721

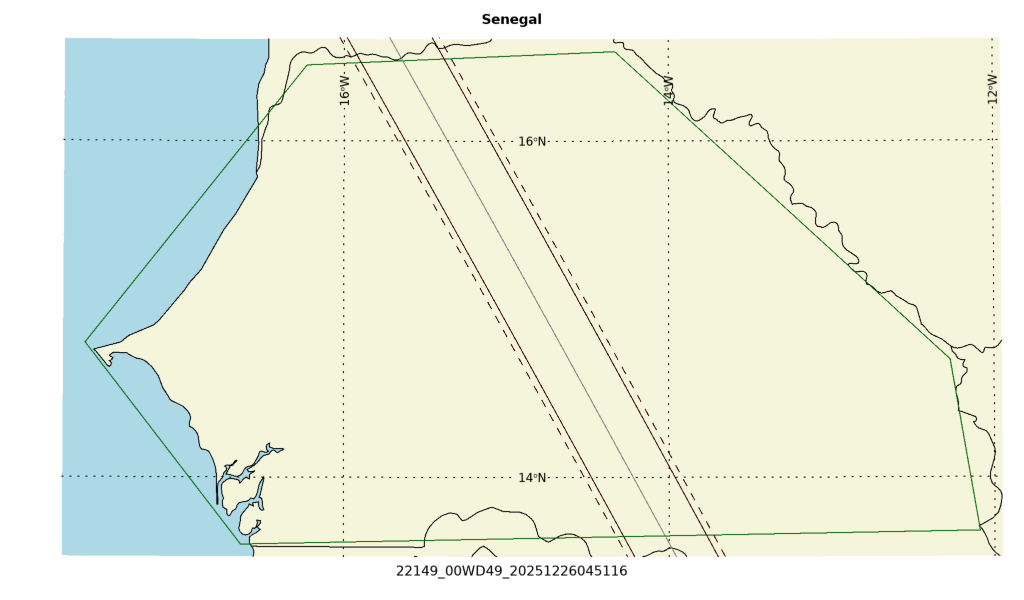

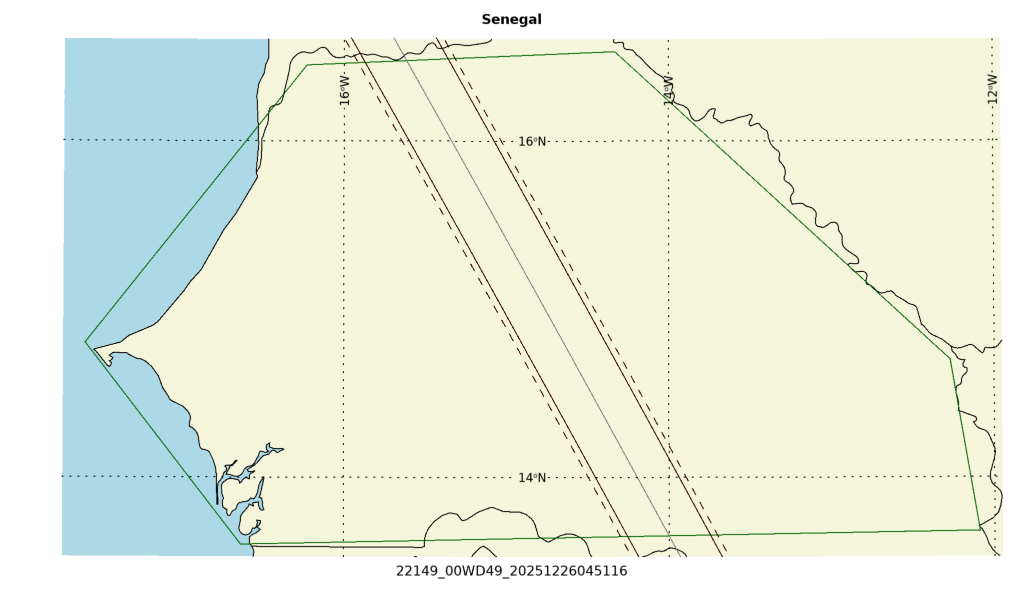

Regions able to see the event: Senegal

Geocentric closest approach at 2025/12/26 04:51:16 UTC

J2000 position of star is 11:57:30.7 -21:07:55
Equinox of date position of star is 11:58:50.5 -21:16:36
Star is 150 degrees from the moon. Moon is 33% illuminated.
Stellar brightness G=10.3, apparent brightess of occulting body is G=15.8
Use an exposure time of 0.12 seconds with the standard RECON-QHY system.
SNR of 51.7 per integration for unocculted signal
Expected flux drop is 99% with SNR of 51.4 for the occulted depth (per occulted point)

Apparent velocity is 19.0 km/sec on the sky relative to the star, or, 19.2 arcsec/hr.
Position angle of asteroid motion is 151.7 degrees
The recommended exposure time corresponds to 2.3 km per image.
The 1-sigma error in the time of the event is 1.9 seconds.
The 1-sigma cross-track error in the shadow position is 1.4 km.
The sky-plane scale is 3563.0 km/arcsec.

Diameter estimates:
52.0 km assuming a 5% albedo, aximum of 2.7 sec for a central chord
21.2 km assuming a 30% albedo, maximum of 1.1 sec for a central chord
Cross-track diameter of 48.2 km used for deployment plan.

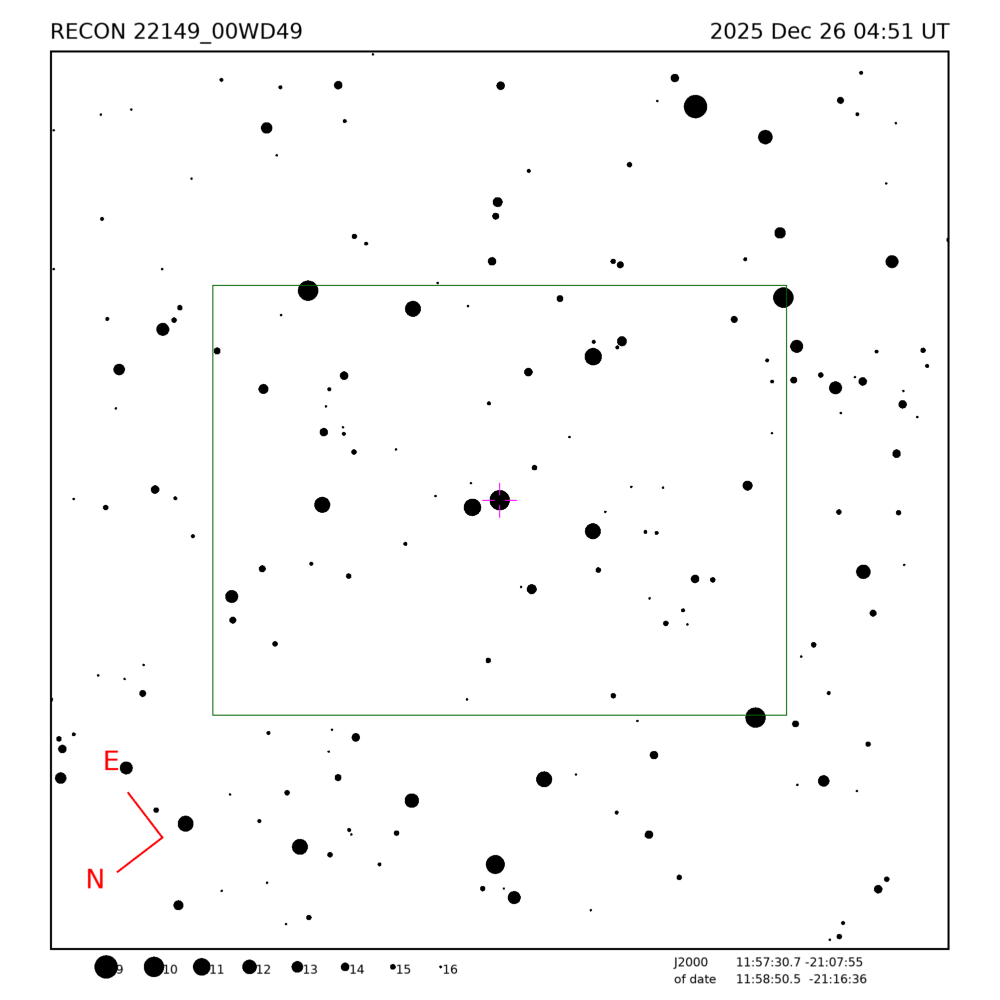

Star training set for 22149_00WD49, (2025/12/26 04:51UT)
Object            RA         Dec     mag  sep  mel
Spica          13:26:33.9 -11:17:46  1.0 23.26 141
4Gam Crv       12:17:08.8 -17:41:10  2.6  5.61 151
PPM 225249     12:02:11.1 -19:48:13  5.4  1.67 151
PPM 259745     12:02:17.2 -21:23:44  8.3  0.81 150
PPM 259687     11:59:15.2 -21:28:18  8.7  0.22 150
PPM 259680     11:58:49.1 -21:26:56 10.1  0.17 150
22149_00WD49   11:58:50.5 -21:16:36 15.8       150
Positions are for equinox of date

Azimuth is measured in degrees eastward from north. North is at an azimuth of 0, due East is at an azimuth of 90 degrees, due South is 180, and due West is 270.

Star training set for 22149_00WD49, (2025/12/26 04:51UT)
Object            RA         Dec     mag  sep  mel
Spica          13:25:11.5 -11:09:41  1.0 23.26 141
4Gam Crv       12:15:48.1 -17:32:30  2.6  5.61 151
PPM 225249     12:00:51.1 -19:39:32  5.4  1.67 151
PPM 259745     12:00:57.2 -21:15:04  8.3  0.81 150
PPM 259687     11:57:55.4 -21:19:37  8.7  0.22 150
PPM 259680     11:57:29.3 -21:18:15 10.1  0.17 150
22149_00WD49   11:57:30.7 -21:07:55 15.8       150
Positions are for J2000


Created by recondetail.pro, 2025/05/22 13:00:55 MT
