RECON observing guide for 22014_99XQ96_20260316013230

Occultation event with (22014) 99XQ96, event index number 3442
Regions able to see the event: SAmericaS

Geocentric closest approach at 2026/03/16 01:32:30 UTC

J2000 position of star is 11:11:40.7 -34:02:21
Equinox of date position of star is 11:12:56.4 -34:10:55
Star is 123 degrees from the moon. Moon is 10% illuminated.
Stellar brightness G=15.9, apparent brightess of occulting body is G=15.1
Use an exposure time of 0.60 seconds with the standard RECON-QHY system.
SNR of 3.4 per integration for unocculted signal
Expected flux drop is 33% with SNR of 1.1 for the occulted depth (per occulted point)

Apparent velocity is 16.2 km/sec on the sky relative to the star, or, 19.4 arcsec/hr.
Position angle of asteroid motion is 114.1 degrees
The recommended exposure time corresponds to 9.7 km per image.
The 1-sigma error in the time of the event is 1.8 seconds.
The 1-sigma cross-track error in the shadow position is 28.9 km.
The sky-plane scale is 3003.6 km/arcsec.

Diameter estimates:
54.5 km assuming a 5% albedo, maximum of 3.4 sec for a central chord
22.2 km assuming a 30% albedo, maximum of 1.4 sec for a central chord
Cross-track diameter of 39.5 km used for deployment plan.

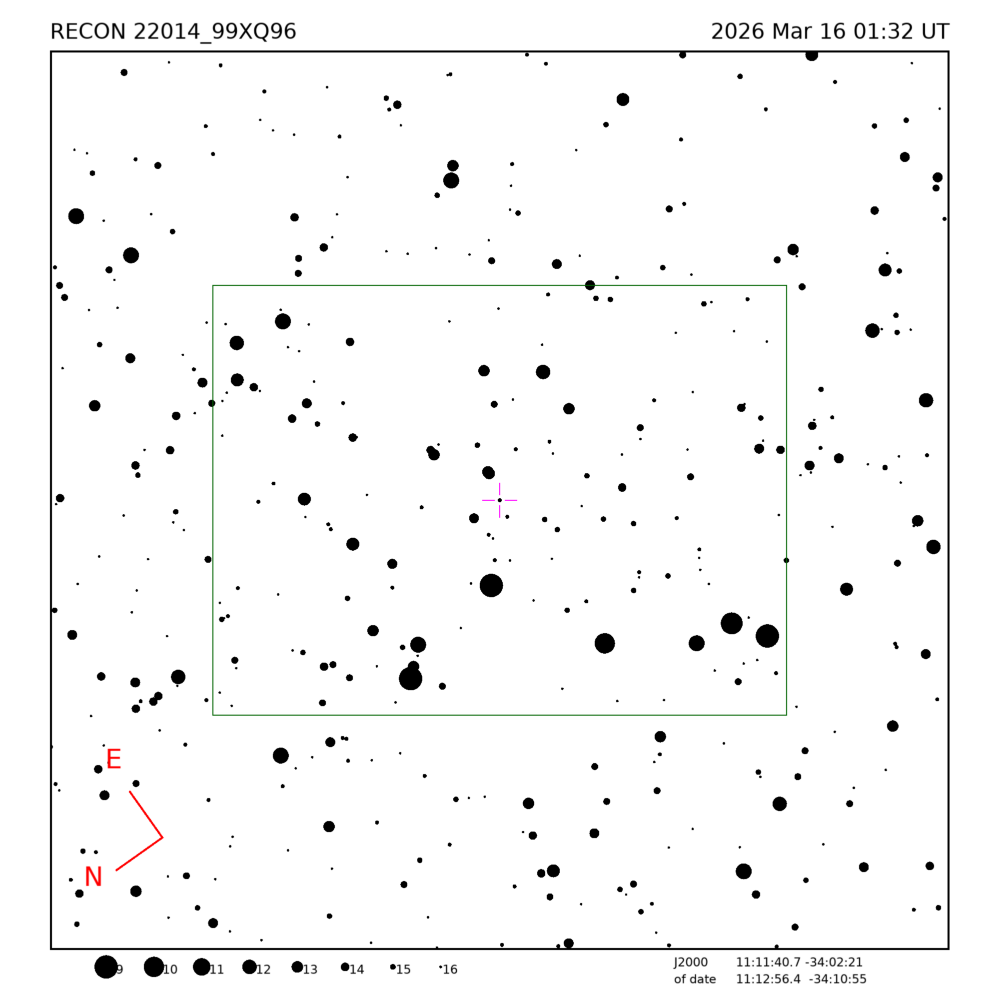

Star training set for 22014_99XQ96, (2026/03/16 01:32UT)
Object            RA         Dec     mag  sep  mel
Bet Cru        12:49:16.3 -59:49:53  1.3 30.09  93
Mu Vel         10:47:54.3 -49:33:32  2.8 16.05 111
PPM 288630     11:13:30.9 -32:34:36  6.3  1.61 124
PPM 288649     11:14:39.3 -34:05:34  8.3  0.37 123
PPM 288612     11:12:47.2 -34:09:15  9.2  0.04 123
22014_99XQ96   11:12:56.4 -34:10:55 15.1       123
Positions are for equinox of date

Azimuth is measured in degrees eastward from north. North is at an azimuth of 0, due East is at an azimuth of 90 degrees, due South is 180, and due West is 270.

Star training set for 22014_99XQ96, (2026/03/16 01:32UT)
Object            RA         Dec     mag  sep  mel
Bet Cru        12:47:43.1 -59:41:20  1.3 30.09  93
Mu Vel         10:46:46.5 -49:25:13  2.8 16.05 111
PPM 288630     11:12:14.8 -32:26:02  6.3  1.61 124
PPM 288649     11:13:23.4 -33:57:00  8.3  0.37 123
PPM 288612     11:11:31.5 -34:00:41  9.2  0.04 123
22014_99XQ96   11:11:40.7 -34:02:21 15.1       123
Positions are for J2000


Created by recondetail.pro, 2025/06/19 03:17:52 MT
