Occultation event with (17171) 99NB38, event index number 1593
Regions able to see the event: US,RECON,SwRI-CO
Geocentric closest approach at 2025/11/26 11:22:34 UTC
J2000 position of star is 02:39:10.8 +47:49:11
Equinox of date position of star is 02:40:55.1 +47:55:49
Star is 100 degrees from the moon. Moon is 32% illuminated.
Stellar brightness G=15.1, apparent brightess of occulting body is G=15.6
Use an exposure time of 0.60 seconds with the standard RECON-QHY system.
SNR of 7.1 per integration for unocculted signal
Expected flux drop is 62% with SNR of 4.4 for the occulted depth (per occulted point)
Apparent velocity is 16.9 km/sec on the sky relative to the star, or, 19.5 arcsec/hr.
Position angle of asteroid motion is 56.8 degrees
The recommended exposure time corresponds to 10.2 km per image.
The 1-sigma error in the time of the event is 1.3 seconds.
The 1-sigma cross-track error in the shadow position is 17.4 km.
The sky-plane scale is 3124.9 km/arcsec.
Diameter estimates:
46.1 km assuming a 5% albedo, aximum of 2.7 sec for a central chord
18.8 km assuming a 30% albedo, maximum of 1.1 sec for a central chord
Cross-track diameter of 40.9 km used for deployment plan.

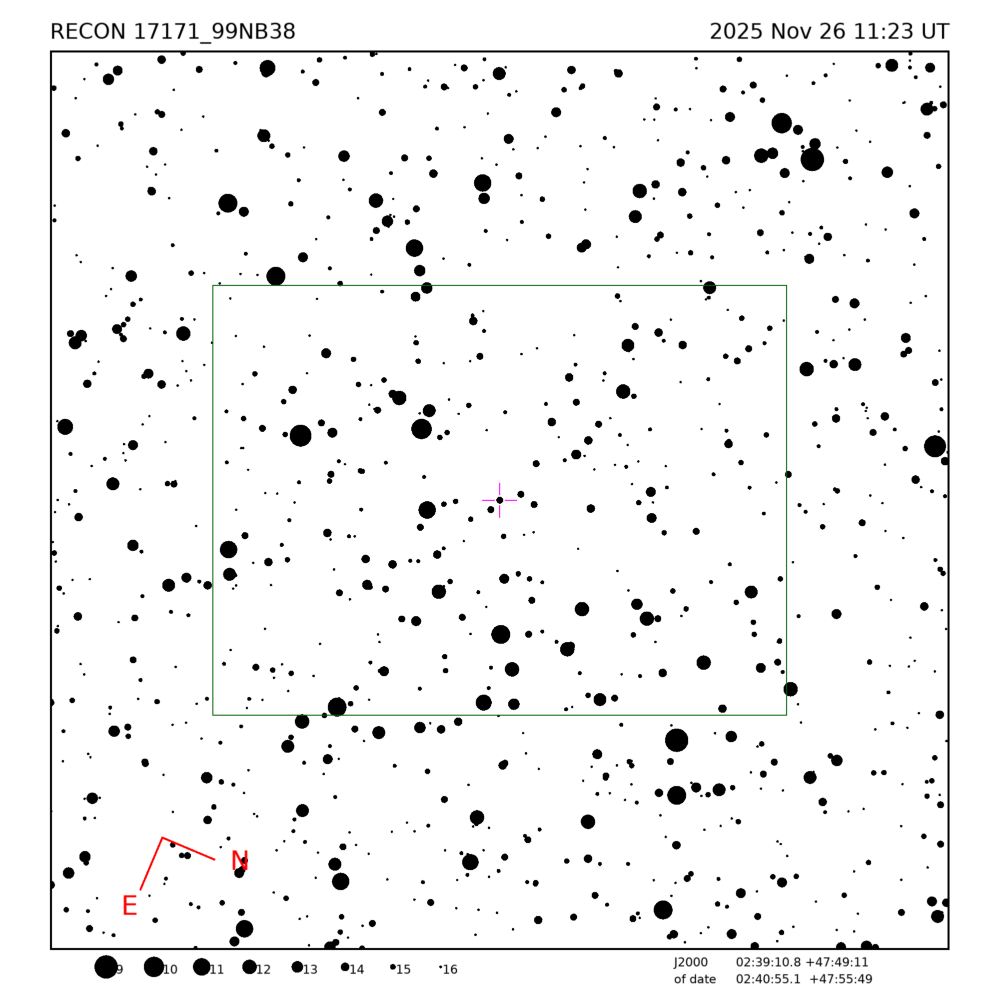

Star training set for 17171_99NB38, (2025/11/26 11:23UT) Object RA Dec mag sep mel Aldebaran 04:37:24.6 +16:33:33 0.8 39.41 116 Mirphak 03:26:11.2 +49:57:04 1.8 7.69 108 13The Per 02:45:59.0 +49:20:10 4.1 1.64 101 PPM 045344 02:42:57.5 +47:40:52 7.5 0.42 100 PPM 045280 02:39:38.0 +48:00:25 8.7 0.23 100 17171_99NB38 02:40:55.1 +47:55:49 15.6 100 Positions are for equinox of date

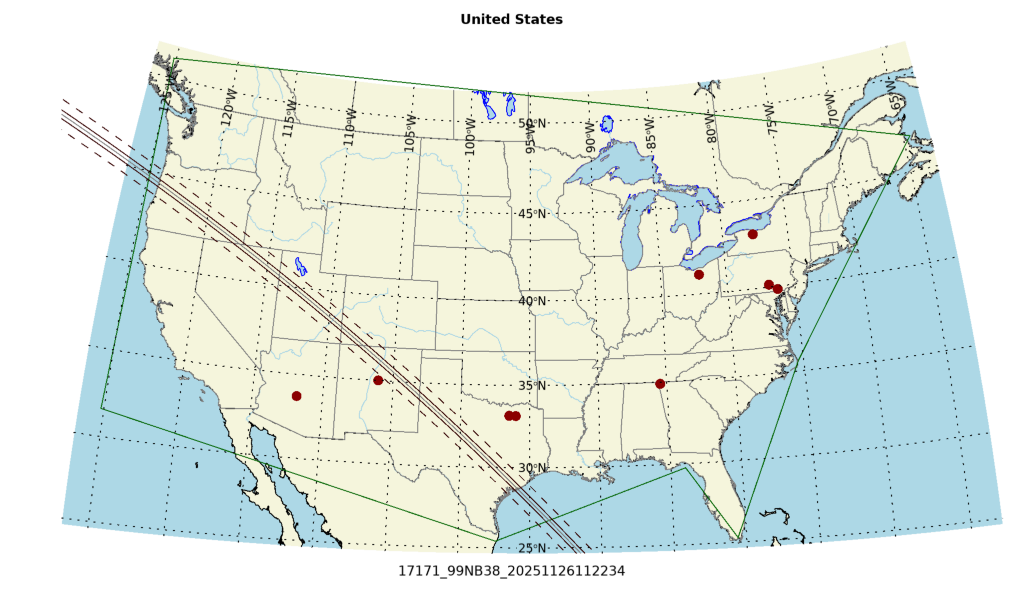

This table contains the target star visibility for registered US sites that are relevant for this occultation. This list has been filtered to only those sites that can see the field and are within range of the shadow given the uncertainties. The observing time range has been calculated to cover the time of the event at each site with allowances for the event timing uncertainty plus time for obtaining a pre and post event baseline lightcurve. This set of stations has a 0.0 % chance of getting at least one chord. There is a 0.0% chance of 2 or more chords assuming clear weather for all.
| Site Name | Site mid-time (UT) |
Sun alt (deg) |
Sky | Moon | Star alt (deg) |
Star az (deg) |
Target | Observing Time | Xtrack (km) |
Prob |
|---|---|---|---|---|---|---|---|---|---|---|
| Patrick | 11:17:00 | -30.9 | Dark | Down | 25.8 | 311.8 | Really Low | 11:13:36-11:19:36 | -105.2 | 0.000 |

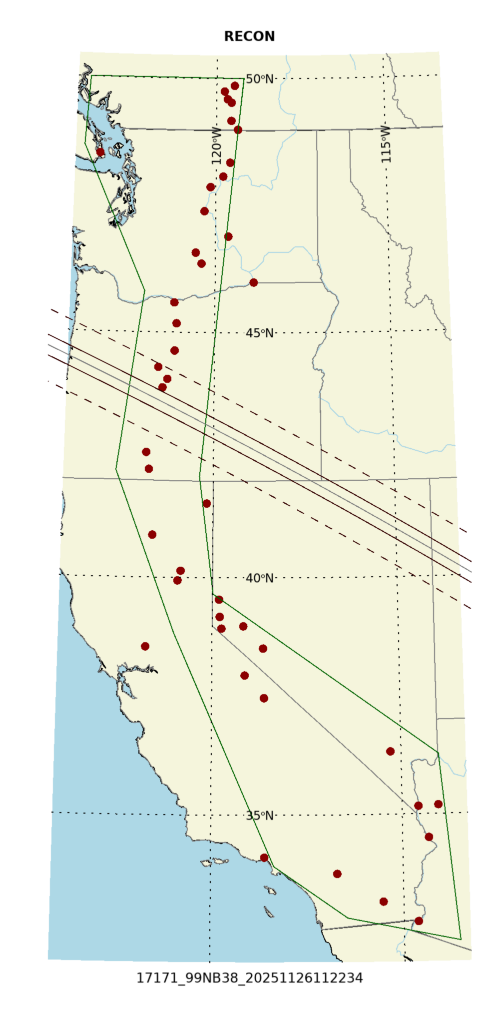

This table contains the target star visibility for registered RECON sites that are relevant for this occultation. This list has been filtered to only those sites that can see the field and are within range of the shadow given the uncertainties. The observing time range has been calculated to cover the time of the event at each site with allowances for the event timing uncertainty plus time for obtaining a pre and post event baseline lightcurve. This set of stations has a 24.3 % chance of getting at least one chord. There is a 2.7% chance of 2 or more chords assuming clear weather for all.
| Site Name | Site mid-time (UT) |
Sun alt (deg) |
Sky | Moon | Star alt (deg) |
Star az (deg) |
Target | Observing Time | Xtrack (km) |
Prob |
|---|---|---|---|---|---|---|---|---|---|---|
| Maupin | 11:17:53 | -41.6 | Dark | Down | 40.9 | 301.3 | Up | 11:14:42-11:20:42 | 170.8 | 0.000 | Madras | 11:17:52 | -41.7 | Dark | Down | 40.6 | 301.7 | Up | 11:14:41-11:20:41 | 115.0 | 0.000 | Sisters | 11:17:53 | -42.1 | Dark | Down | 40.7 | 301.8 | Up | 11:14:39-11:20:39 | 66.1 | 0.002 | Bend | 11:17:52 | -42.0 | Dark | Down | 40.4 | 302.0 | Up | 11:14:41-11:20:41 | 51.6 | 0.028 | Oregon Observatory | 11:17:52 | -42.1 | Dark | Down | 40.4 | 302.1 | Up | 11:14:37-11:20:37 | 29.8 | 0.240 | Chiloquin | 11:17:52 | -42.7 | Dark | Down | 40.0 | 302.9 | Up | 11:14:38-11:20:38 | -115.4 | 0.000 | Klamath Falls | 11:17:51 | -42.7 | Dark | Down | 39.7 | 303.2 | Up | 11:14:36-11:20:36 | -146.3 | 0.000 | Cedarville | 11:17:45 | -41.6 | Dark | Down | 38.4 | 304.2 | Up | 11:14:21-11:20:21 | -155.9 | 0.000 |

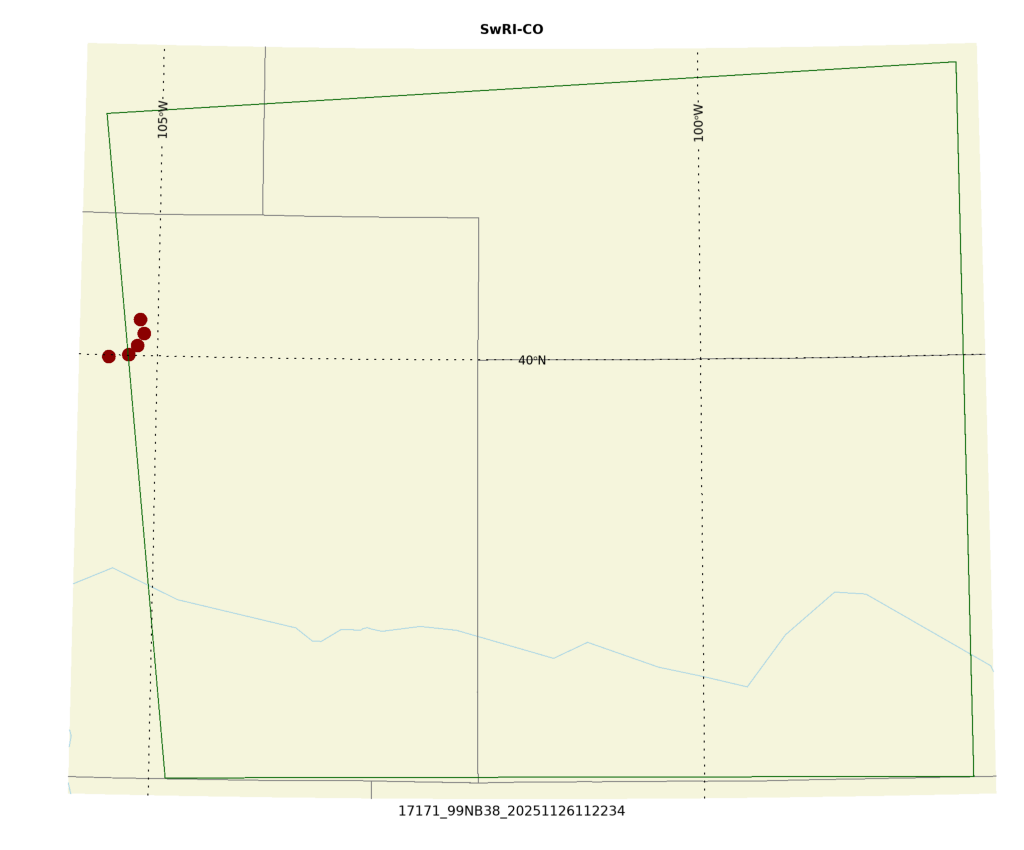

This table contains the target star visibility for registered SwRI-CO sites that are relevant for this occultation. This list has been filtered to only those sites that can see the field and are within range of the shadow given the uncertainties. The observing time range has been calculated to cover the time of the event at each site with allowances for the event timing uncertainty plus time for obtaining a pre and post event baseline lightcurve. This set of stations has a 0.0 % chance of getting at least one chord. There is a 0.0% chance of 2 or more chords assuming clear weather for all.
| Site Name | Site mid-time (UT) |
Sun alt (deg) |
Sky | Moon | Star alt (deg) |
Star az (deg) |
Target | Observing Time | Xtrack (km) |
Prob |
|---|---|---|---|---|---|---|---|---|---|---|
Star training set for 17171_99NB38, (2025/11/26 11:23UT) Object RA Dec mag sep mel Aldebaran 04:35:55.4 +16:30:29 0.8 39.41 116 Mirphak 03:24:19.4 +49:51:40 1.8 7.69 108 13The Per 02:44:12.9 +49:13:40 4.1 1.64 101 PPM 045344 02:41:13.2 +47:34:17 7.5 0.42 100 PPM 045280 02:37:53.8 +47:53:46 8.7 0.23 100 17171_99NB38 02:39:10.8 +47:49:11 15.6 100 Positions are for J2000
