RECON observing guide for 16667_93XM1_20250804020350

Occultation event with (16667) 93XM1, event index number 1204

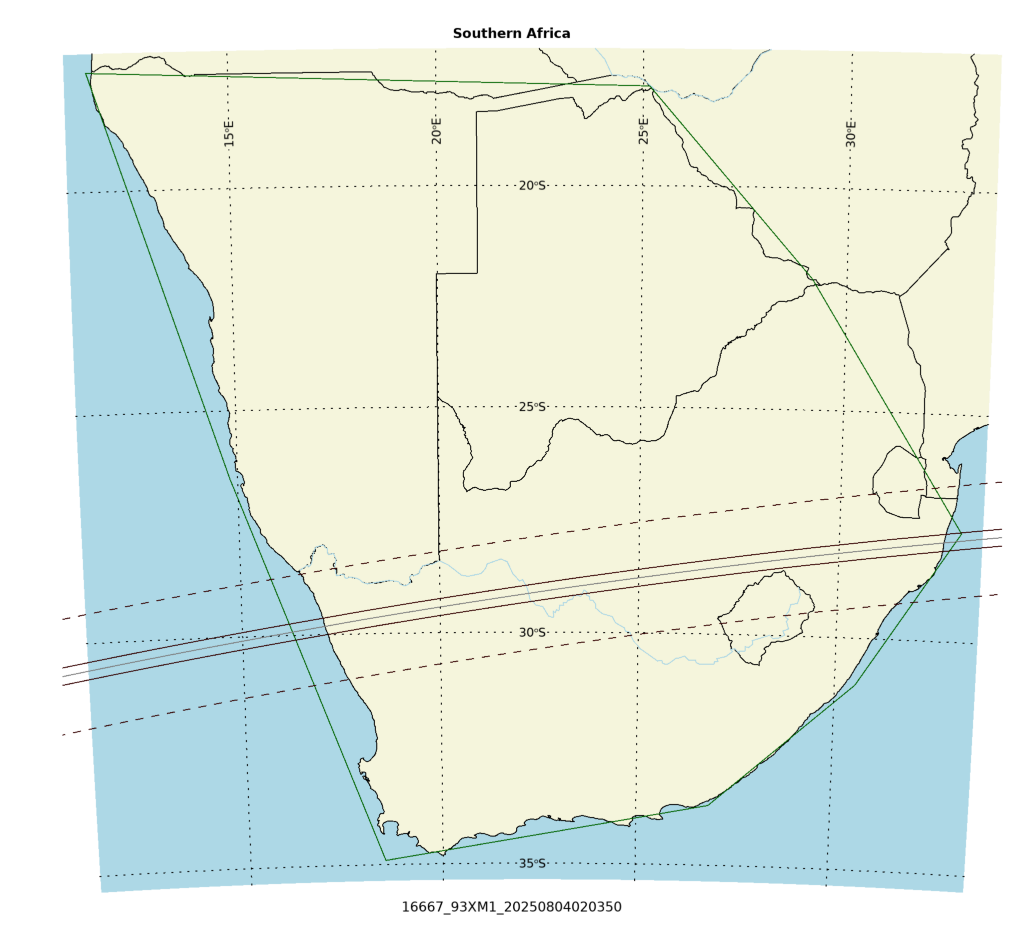

Regions able to see the event: SAfrica

Geocentric closest approach at 2025/08/04 02:03:50 UTC

J2000 position of star is 03:45:45.8 +06:19:39
Equinox of date position of star is 03:47:07.7 +06:24:21
Star is 157 degrees from the moon. Moon is 74% illuminated.
Stellar brightness G=15.5, apparent brightess of occulting body is G=16.0
Use an exposure time of 0.40 seconds with the standard RECON-QHY system.
SNR of 3.6 per integration for unocculted signal
Expected flux drop is 60% with SNR of 2.2 for the occulted depth (per occulted point)

Apparent velocity is 20.4 km/sec on the sky relative to the star, or, 21.4 arcsec/hr.
Position angle of asteroid motion is 86.5 degrees
The recommended exposure time corresponds to 8.2 km per image.
The 1-sigma error in the time of the event is 0.9 seconds.
The 1-sigma cross-track error in the shadow position is 33.3 km.
The sky-plane scale is 3434.5 km/arcsec.

Diameter estimates:
42.3 km assuming a 5% albedo, aximum of 2.1 sec for a central chord
17.3 km assuming a 30% albedo, maximum of 0.8 sec for a central chord
Cross-track diameter of 35.4 km used for deployment plan.

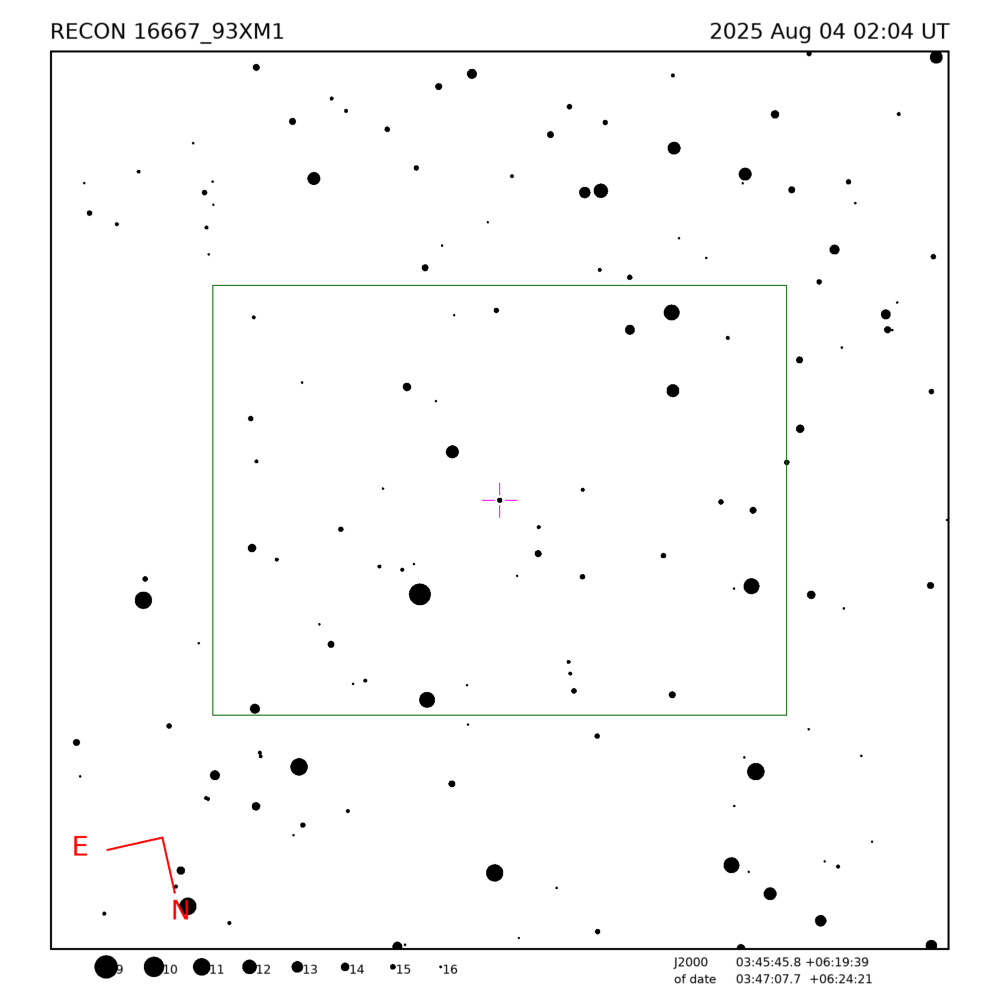

Star training set for 16667_93XM1, (2025/08/04 02:04UT)
Object            RA         Dec     mag  sep  mel
Aldebaran      04:37:23.5 +16:33:31  0.8 15.95 169
Menkar         03:03:37.2 +04:11:19  2.5 11.05 149
29 Tau         03:47:02.2 +06:07:42  5.3  0.28 157
PPM 146878     03:46:24.8 +06:42:56  8.5  0.36 157
29 Tau         03:47:02.2 +06:07:42  5.3  0.28 157
PPM 146891     03:47:19.4 +06:26:33 10.1  0.06 157
16667_93XM1    03:47:07.7 +06:24:21 16.0       157
Positions are for equinox of date

Azimuth is measured in degrees eastward from north. North is at an azimuth of 0, due East is at an azimuth of 90 degrees, due South is 180, and due West is 270.

Star training set for 16667_93XM1, (2025/08/04 02:04UT)
Object            RA         Dec     mag  sep  mel
Aldebaran      04:35:55.4 +16:30:29  0.8 15.95 169
Menkar         03:02:16.8 +04:05:21  2.5 11.05 149
29 Tau         03:45:40.5 +06:03:00  5.3  0.28 157
PPM 146878     03:45:02.8 +06:38:13  8.5  0.36 157
29 Tau         03:45:40.5 +06:03:00  5.3  0.28 157
PPM 146891     03:45:57.5 +06:21:51 10.1  0.06 157
16667_93XM1    03:45:45.8 +06:19:39 16.0       157
Positions are for J2000


Created by recondetail.pro, 2025/05/22 00:30:33 MT
