RECON observing guide for 16070_Charops_20261007063514

Occultation event with (16070) Charops, event index number 4358

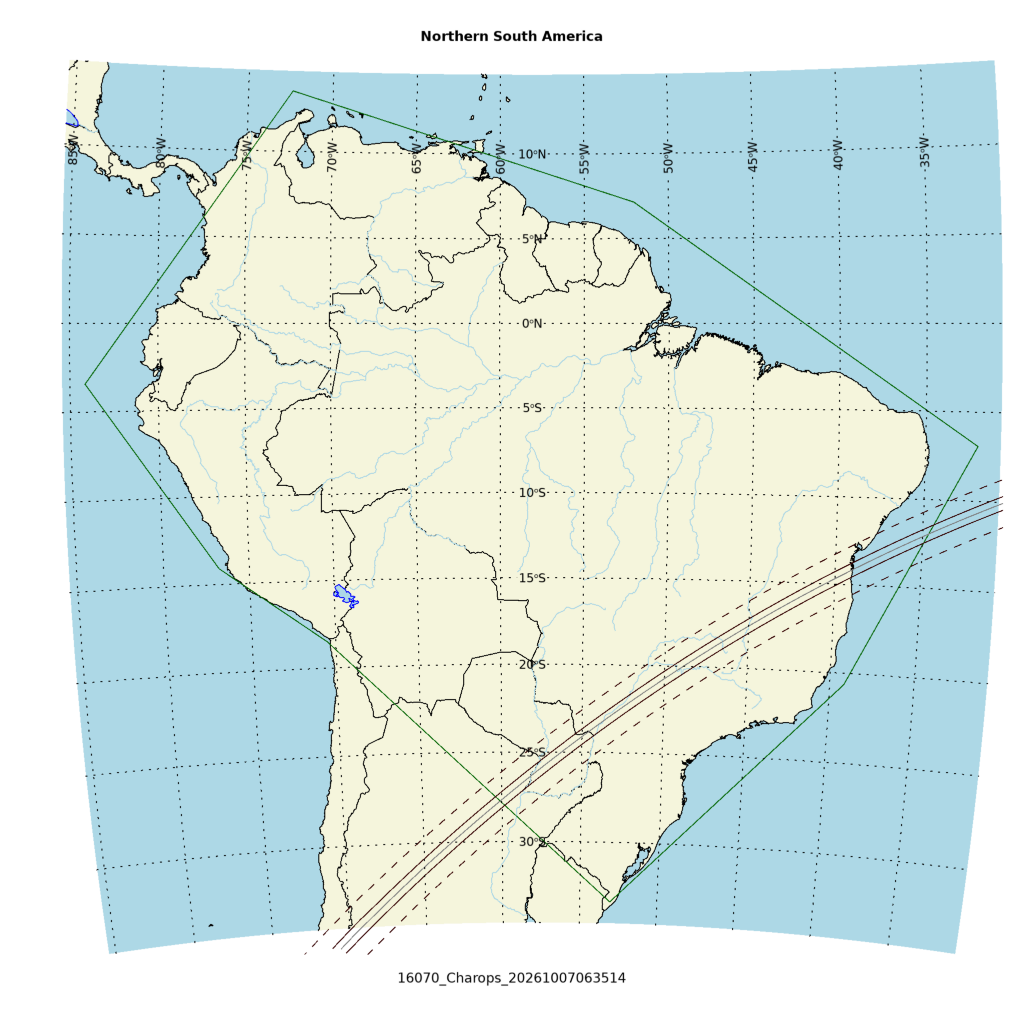

Regions able to see the event: SAmericaN

Geocentric closest approach at 2026/10/07 06:35:14 UTC

J2000 position of star is 06:36:45.7 +32:31:44
Equinox of date position of star is 06:38:30.5 +32:30:16
Star is 55 degrees from the moon. Moon is 13% illuminated.
Stellar brightness G=16.9, apparent brightess of occulting body is G=15.7
Use an exposure time of 2.00 seconds with the standard RECON-QHY system.
SNR of 3.2 per integration for unocculted signal
Expected flux drop is 25% with SNR of 0.8 for the occulted depth (per occulted point)

Apparent velocity is 7.8 km/sec on the sky relative to the star, or, 7.0 arcsec/hr.
Position angle of asteroid motion is 80.9 degrees
The recommended exposure time corresponds to 15.5 km per image.
The 1-sigma error in the time of the event is 0.6 seconds.
The 1-sigma cross-track error in the shadow position is 26.3 km.
The sky-plane scale is 3996.5 km/arcsec.

Diameter estimates:
66.4 km assuming a 5% albedo, maximum of 8.6 sec for a central chord
27.1 km assuming a 30% albedo, maximum of 3.5 sec for a central chord
Cross-track diameter of 63.2 km used for deployment plan.

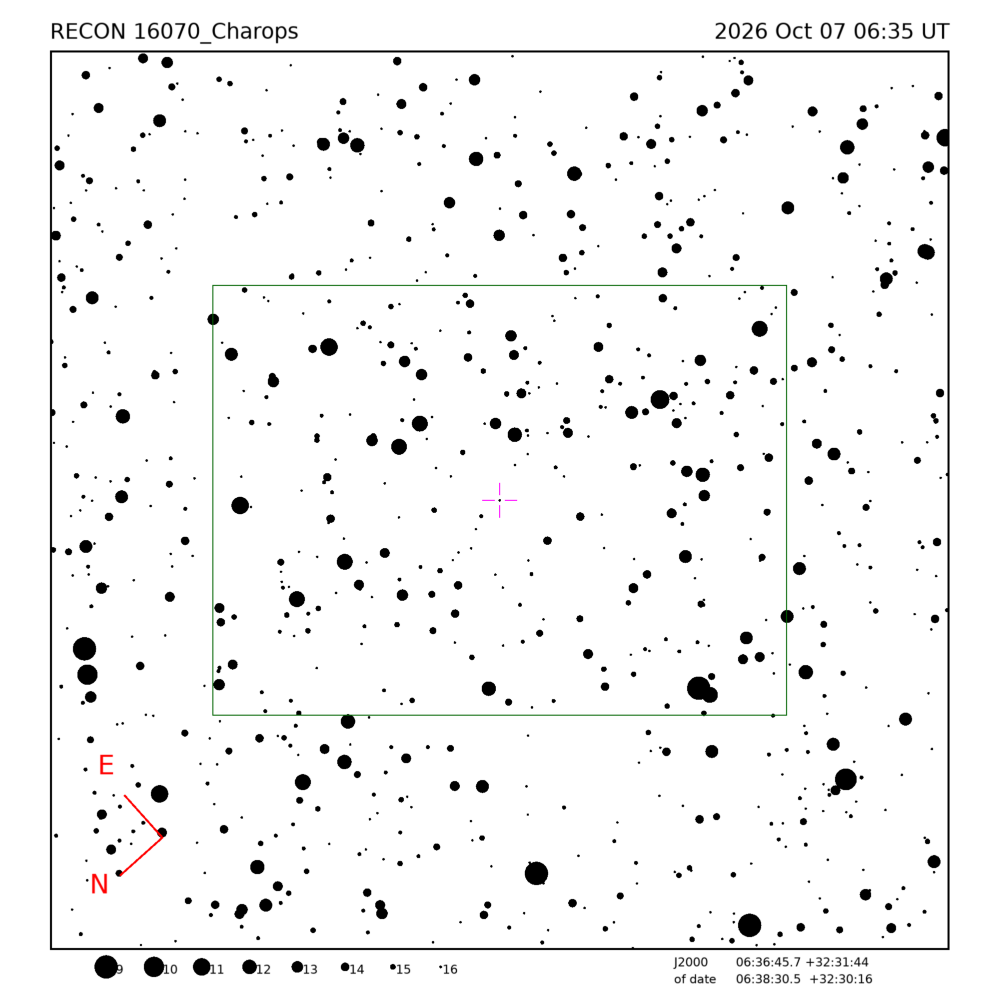

Star training set for 16070_Charops, (2026/10/07 06:35UT)
Object            RA         Dec     mag  sep  mel
Pollux         07:46:57.1 +27:57:33  1.1 15.45  39
34Bet Aur      06:01:29.6 +44:56:50  1.9 14.36  64
PPM 071742     06:34:11.9 +32:26:00  6.0  0.91  56
PPM 071825     06:37:22.5 +32:33:12  7.9  0.24  55
PPM 071834     06:37:48.0 +32:36:51  8.7  0.19  55
16070_Charops  06:38:30.5 +32:30:16 15.7        54
Positions are for equinox of date

Azimuth is measured in degrees eastward from north. North is at an azimuth of 0, due East is at an azimuth of 90 degrees, due South is 180, and due West is 270.

Star training set for 16070_Charops, (2026/10/07 06:35UT)
Object            RA         Dec     mag  sep  mel
Pollux         07:45:17.7 +28:01:33  1.1 15.45  39
34Bet Aur      05:59:31.6 +44:56:51  1.9 14.36  64
PPM 071742     06:32:27.1 +32:27:18  6.0  0.91  56
PPM 071825     06:35:37.7 +32:34:37  7.9  0.24  55
PPM 071834     06:36:03.1 +32:38:17  8.7  0.19  55
16070_Charops  06:36:45.7 +32:31:44 15.7        55
Positions are for J2000


Created by recondetail.pro, 2025/06/20 09:45:36 MT
