Occultation event with (1208) Troilus, event index number 4917

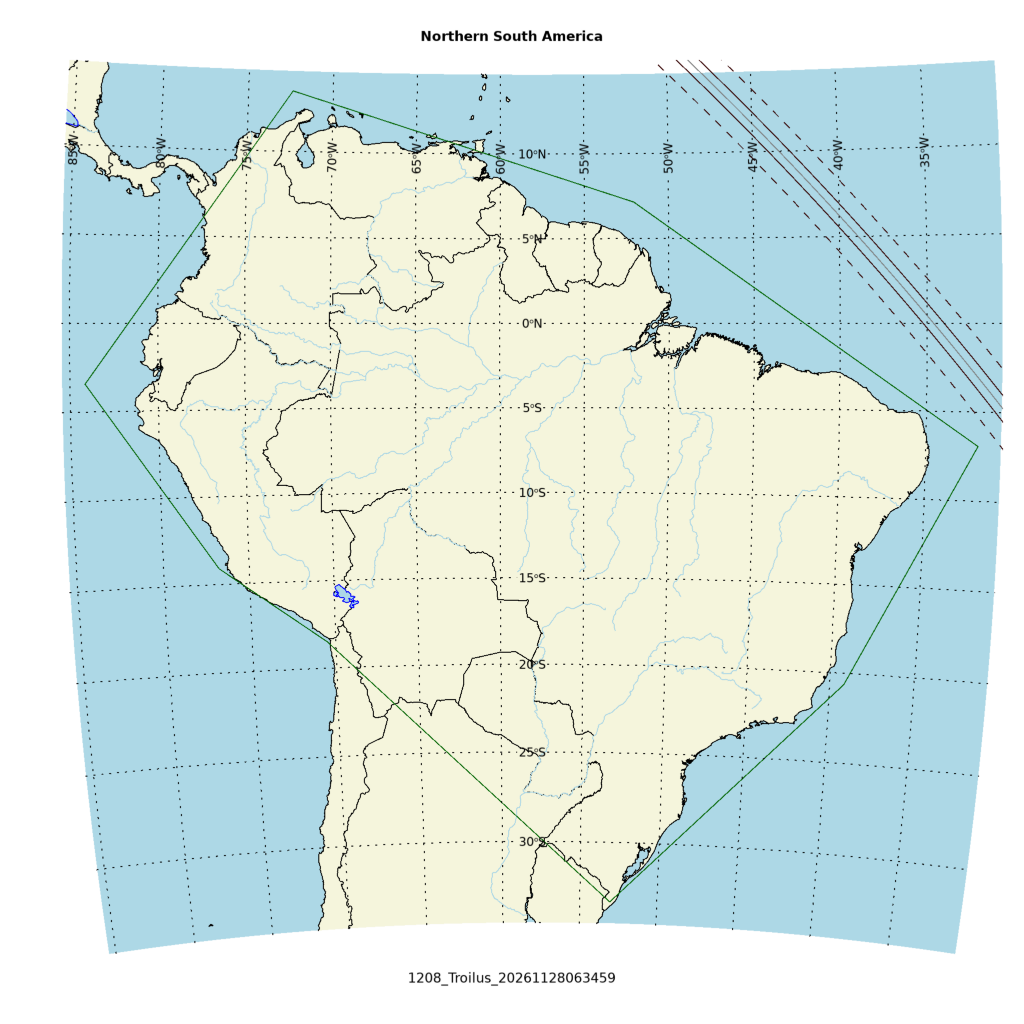

Regions able to see the event: US,SAmericaN,RECON,SwRI-CO
Geocentric closest approach at 2026/11/28 06:34:59 UTC
J2000 position of star is 05:23:19.0 +46:10:45
Equinox of date position of star is 05:25:18.8 +46:12:08
Star is 39 degrees from the moon. Moon is 81% illuminated.
Stellar brightness G=15.7, apparent brightess of occulting body is G=14.1
Use an exposure time of 1.25 seconds with the standard RECON-QHY system.
SNR of 5.2 per integration for unocculted signal
Expected flux drop is 18% with SNR of 1.0 for the occulted depth (per occulted point)
Apparent velocity is 19.8 km/sec on the sky relative to the star, or, 22.3 arcsec/hr.
Position angle of asteroid motion is 113.6 degrees
The recommended exposure time corresponds to 24.7 km per image.
The 1-sigma error in the time of the event is 0.2 seconds.
The 1-sigma cross-track error in the shadow position is 33.9 km.
The sky-plane scale is 3191.3 km/arcsec.
Diameter estimates:
92.9 km assuming a 5% albedo, maximum of 4.7 sec for a central chord
37.9 km assuming a 30% albedo, maximum of 1.9 sec for a central chord
Cross-track diameter of 100.5 km used for deployment plan.

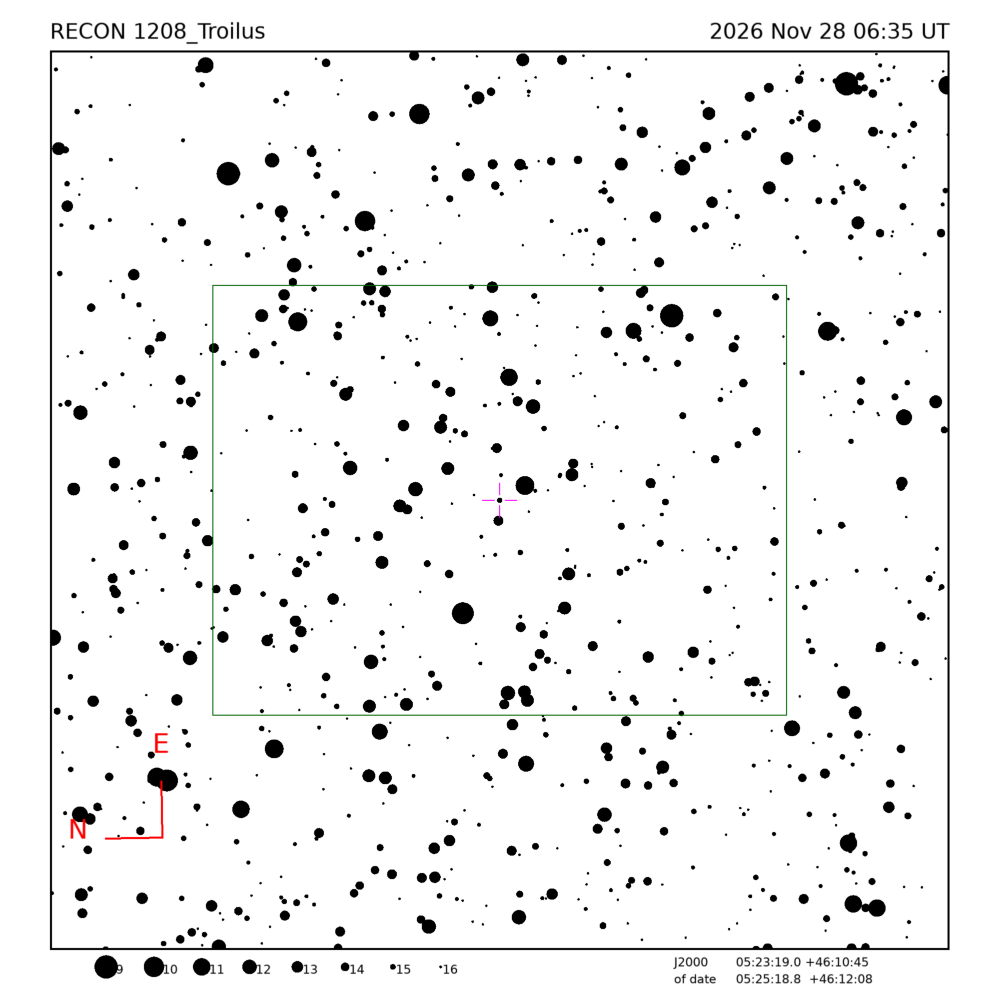

Star training set for 1208_Troilus, (2026/11/28 06:35UT) Object RA Dec mag sep mel Aldebaran 04:37:28.1 +16:33:40 0.8 31.27 48 34Bet Aur 06:01:30.2 +44:56:50 1.9 6.45 33 PPM 047798 05:12:43.5 +46:59:32 6.0 2.30 41 PPM 048090 05:27:13.2 +46:57:37 7.7 0.83 39 PPM 048027 05:23:32.7 +46:08:51 8.6 0.31 39 PPM 048071 05:25:49.7 +46:06:55 10.3 0.12 39 1208_Troilus 05:25:18.8 +46:12:08 14.1 39 Positions are for equinox of date

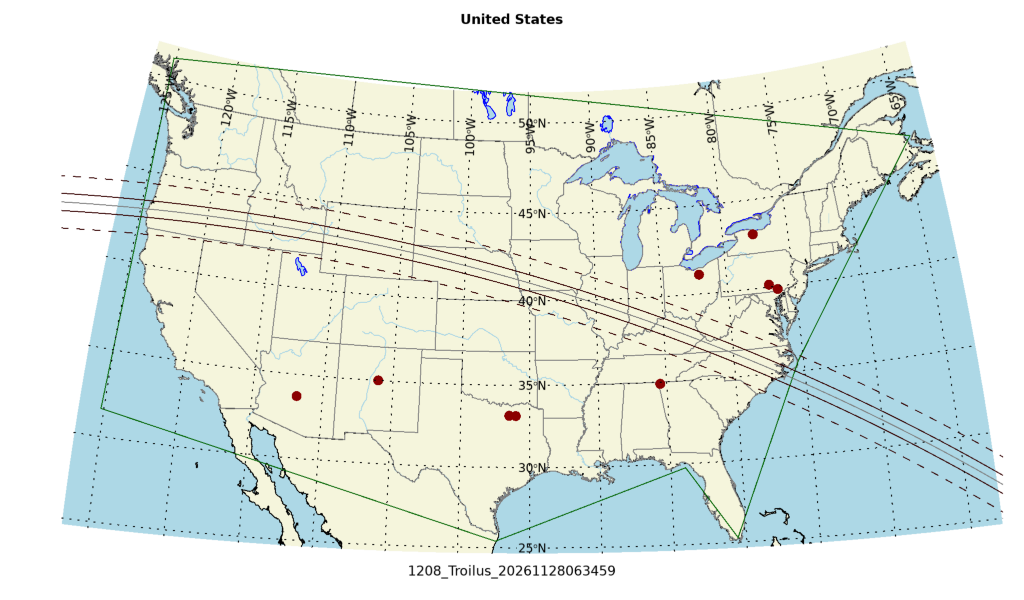

This table contains the target star visibility for registered US sites that are relevant for this occultation. This list has been filtered to only those sites that can see the field and are within range of the shadow given the uncertainties. The observing time range has been calculated to cover the time of the event at each site with allowances for the event timing uncertainty plus time for obtaining a pre and post event baseline lightcurve. This set of stations has a 0.0 % chance of getting at least one chord. There is a 0.0% chance of 2 or more chords assuming clear weather for all.
| Site Name | Site mid-time (UT) |
Sun alt (deg) |
Sky | Moon | Star alt (deg) |
Star az (deg) |
Target | Observing Time | Xtrack (km) |
Prob |
|---|---|---|---|---|---|---|---|---|---|---|

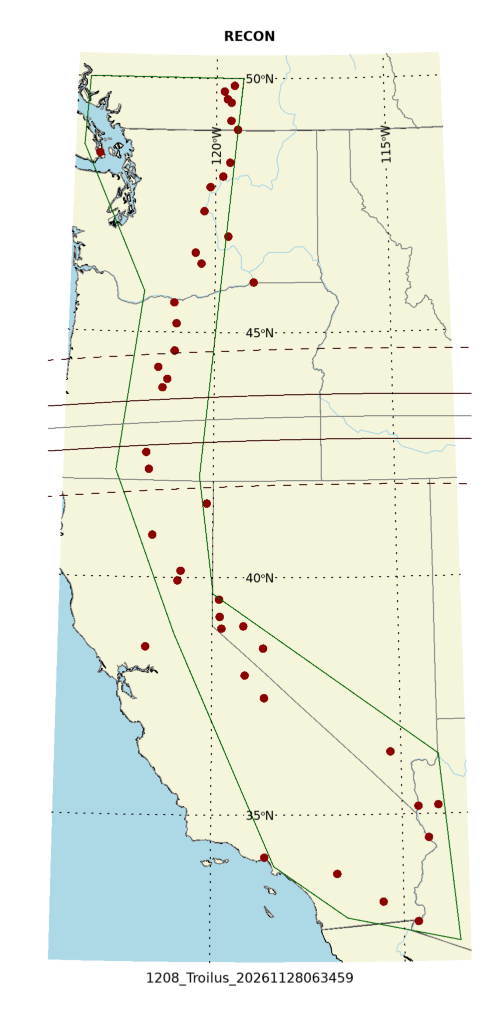

This table contains the target star visibility for registered RECON sites that are relevant for this occultation. This list has been filtered to only those sites that can see the field and are within range of the shadow given the uncertainties. The observing time range has been calculated to cover the time of the event at each site with allowances for the event timing uncertainty plus time for obtaining a pre and post event baseline lightcurve. This set of stations has a 41.7 % chance of getting at least one chord. There is a 9.7% chance of 2 or more chords assuming clear weather for all.
| Site Name | Site mid-time (UT) |
Sun alt (deg) |
Sky | Moon | Star alt (deg) |
Star az (deg) |
Target | Observing Time | Xtrack (km) |
Prob |
|---|---|---|---|---|---|---|---|---|---|---|
| Maupin | 06:36:54 | -61.6 | Dark | Up | 65.4 | 74.9 | Up | 06:33:49-06:39:49 | 218.4 | 0.000 | Madras | 06:36:54 | -62.0 | Dark | Up | 65.2 | 73.7 | Up | 06:33:49-06:39:49 | 158.1 | 0.000 | Sisters | 06:36:56 | -62.0 | Dark | Up | 64.8 | 72.9 | Up | 06:33:46-06:39:46 | 123.6 | 0.009 | Bend | 06:36:55 | -62.3 | Dark | Up | 64.9 | 72.5 | Up | 06:33:49-06:39:49 | 96.0 | 0.059 | Oregon Observatory | 06:36:56 | -62.4 | Dark | Up | 64.8 | 72.1 | Up | 06:33:44-06:39:44 | 77.5 | 0.153 | Chiloquin | 06:36:57 | -63.2 | Dark | Up | 64.1 | 69.4 | Up | 06:33:46-06:39:46 | -65.0 | 0.263 | Klamath Falls | 06:36:57 | -63.4 | Dark | Up | 64.0 | 68.8 | Up | 06:33:44-06:39:44 | -103.0 | 0.039 | Cedarville | 06:36:51 | -64.8 | Dark | Up | 64.8 | 67.6 | Up | 06:33:24-06:39:24 | -187.2 | 0.000 | Burney | 06:36:56 | -64.5 | Dark | Up | 63.6 | 66.3 | Up | 06:33:26-06:39:26 | -251.5 | 0.000 |

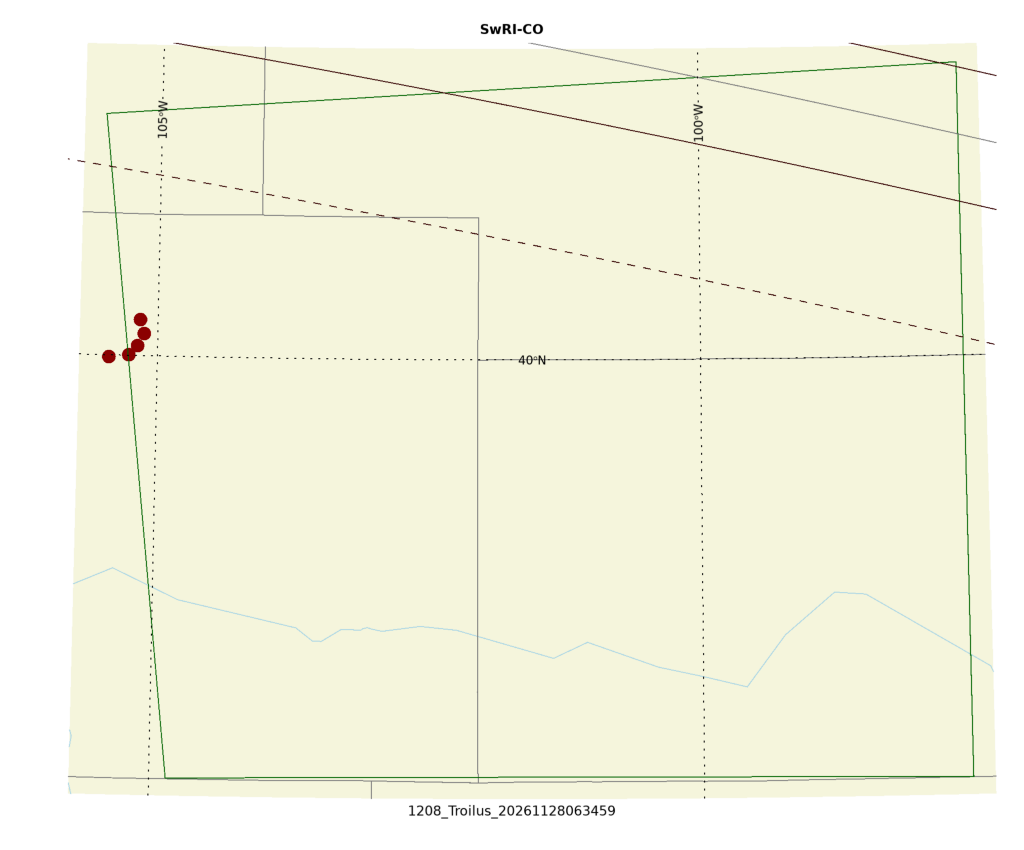

This table contains the target star visibility for registered SwRI-CO sites that are relevant for this occultation. This list has been filtered to only those sites that can see the field and are within range of the shadow given the uncertainties. The observing time range has been calculated to cover the time of the event at each site with allowances for the event timing uncertainty plus time for obtaining a pre and post event baseline lightcurve. This set of stations has a 0.0 % chance of getting at least one chord. There is a 0.0% chance of 2 or more chords assuming clear weather for all.
| Site Name | Site mid-time (UT) |
Sun alt (deg) |
Sky | Moon | Star alt (deg) |
Star az (deg) |
Target | Observing Time | Xtrack (km) |
Prob |
|---|---|---|---|---|---|---|---|---|---|---|
Star training set for 1208_Troilus, (2026/11/28 06:35UT) Object RA Dec mag sep mel Aldebaran 04:35:55.4 +16:30:29 0.8 31.27 48 34Bet Aur 05:59:31.6 +44:56:51 1.9 6.45 33 PPM 047798 05:10:43.1 +46:57:40 6.0 2.30 41 PPM 048090 05:25:12.4 +46:56:18 7.7 0.83 39 PPM 048027 05:21:33.0 +46:07:23 8.6 0.31 39 PPM 048071 05:23:50.0 +46:05:33 10.3 0.12 39 1208_Troilus 05:23:19.0 +46:10:45 14.1 39 Positions are for J2000
