RECON observing guide for 1208_Troilus_20261110232518

Occultation event with (1208) Troilus, event index number 4639

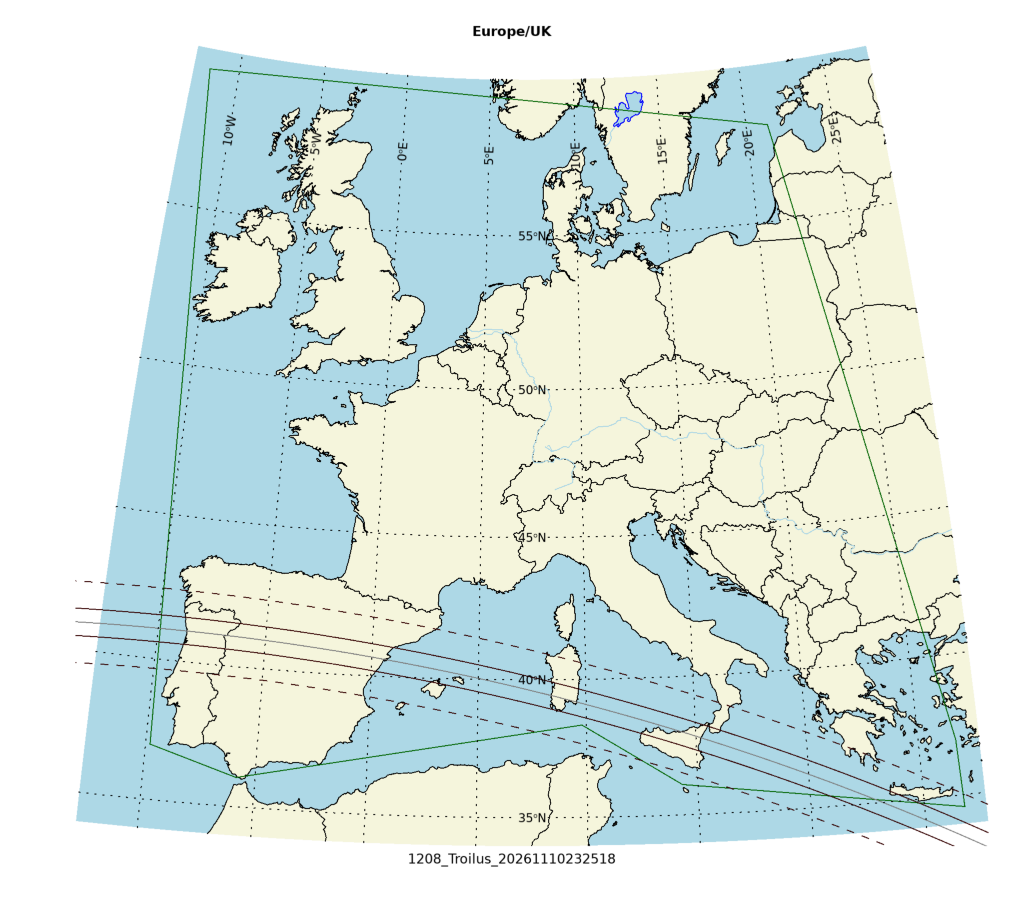

Regions able to see the event: Europe

Geocentric closest approach at 2026/11/10 23:25:18 UTC

J2000 position of star is 05:35:08.4 +44:54:50
Equinox of date position of star is 05:37:06.6 +44:55:46
Star is 156 degrees from the moon. Moon is 3% illuminated.
Stellar brightness G=11.8, apparent brightess of occulting body is G=14.3
Use an exposure time of 0.12 seconds with the standard RECON-QHY system.
SNR of 23.5 per integration for unocculted signal
Expected flux drop is 91% with SNR of 21.3 for the occulted depth (per occulted point)

Apparent velocity is 17.7 km/sec on the sky relative to the star, or, 19.6 arcsec/hr.
Position angle of asteroid motion is 130.6 degrees
The recommended exposure time corresponds to 2.1 km per image.
The 1-sigma error in the time of the event is 0.4 seconds.
The 1-sigma cross-track error in the shadow position is 33.0 km.
The sky-plane scale is 3263.2 km/arcsec.

Diameter estimates:
92.9 km assuming a 5% albedo, maximum of 5.2 sec for a central chord
37.9 km assuming a 30% albedo, maximum of 2.1 sec for a central chord
Cross-track diameter of 100.5 km used for deployment plan.

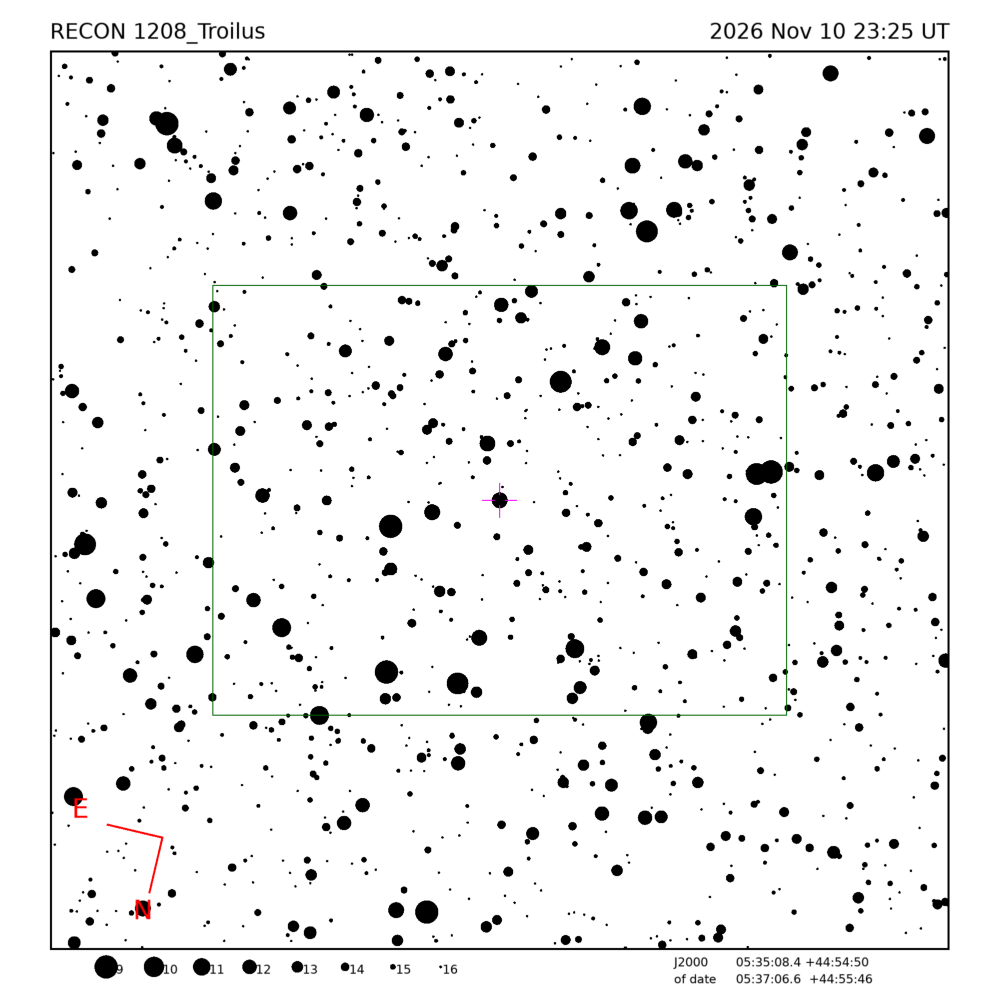

Star training set for 1208_Troilus, (2026/11/10 23:25UT)
Object            RA         Dec     mag  sep  mel
Pollux         07:46:57.4 +27:57:33  1.1 30.82 135
34Bet Aur      06:01:30.0 +44:56:50  1.9  4.32 153
PPM 048270     05:38:17.8 +47:43:48  6.1  2.81 154
PPM 048271     05:38:15.0 +44:47:05  8.3  0.25 156
PPM 048254     05:37:23.5 +44:57:15  8.9  0.06 156
1208_Troilus   05:37:06.6 +44:55:46 14.3       156
Positions are for equinox of date

Azimuth is measured in degrees eastward from north. North is at an azimuth of 0, due East is at an azimuth of 90 degrees, due South is 180, and due West is 270.

Star training set for 1208_Troilus, (2026/11/10 23:25UT)
Object            RA         Dec     mag  sep  mel
Pollux         07:45:17.7 +28:01:33  1.1 30.82 135
34Bet Aur      05:59:31.6 +44:56:51  1.9  4.32 153
PPM 048270     05:36:16.0 +47:42:55  6.1  2.81 154
PPM 048271     05:36:17.0 +44:46:12  8.3  0.25 156
PPM 048254     05:35:25.3 +44:56:19  8.9  0.06 156
1208_Troilus   05:35:08.4 +44:54:50 14.3       156
Positions are for J2000


Created by recondetail.pro, 2025/06/20 22:15:12 MT
