RECON observing guide for 11397_98XX93_20260315052313

Occultation event with (11397) 98XX93, event index number 3433

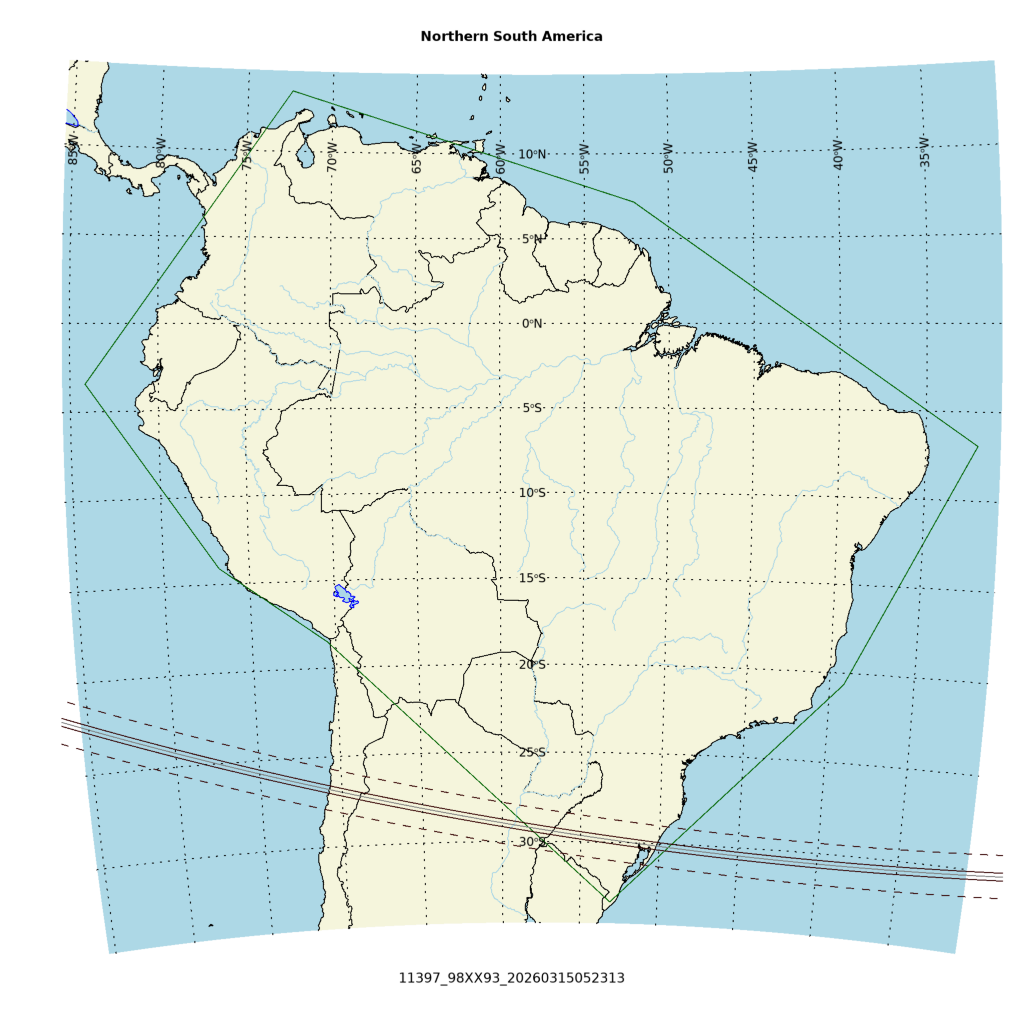

Regions able to see the event: SAmericaN,SAmericaS

Geocentric closest approach at 2026/03/15 05:23:13 UTC

J2000 position of star is 13:17:10.9 -30:57:58
Equinox of date position of star is 13:18:38.5 -31:06:13
Star is 96 degrees from the moon. Moon is 16% illuminated.
Stellar brightness G=16.0, apparent brightess of occulting body is G=15.6
Use an exposure time of 0.85 seconds with the standard RECON-QHY system.
SNR of 4.3 per integration for unocculted signal
Expected flux drop is 43% with SNR of 1.9 for the occulted depth (per occulted point)

Apparent velocity is 12.7 km/sec on the sky relative to the star, or, 13.3 arcsec/hr.
Position angle of asteroid motion is 97.5 degrees
The recommended exposure time corresponds to 10.8 km per image.
The 1-sigma error in the time of the event is 0.9 seconds.
The 1-sigma cross-track error in the shadow position is 34.0 km.
The sky-plane scale is 3448.8 km/arcsec.

Diameter estimates:
54.5 km assuming a 5% albedo, maximum of 4.3 sec for a central chord
22.2 km assuming a 30% albedo, maximum of 1.7 sec for a central chord
Cross-track diameter of 45.4 km used for deployment plan.

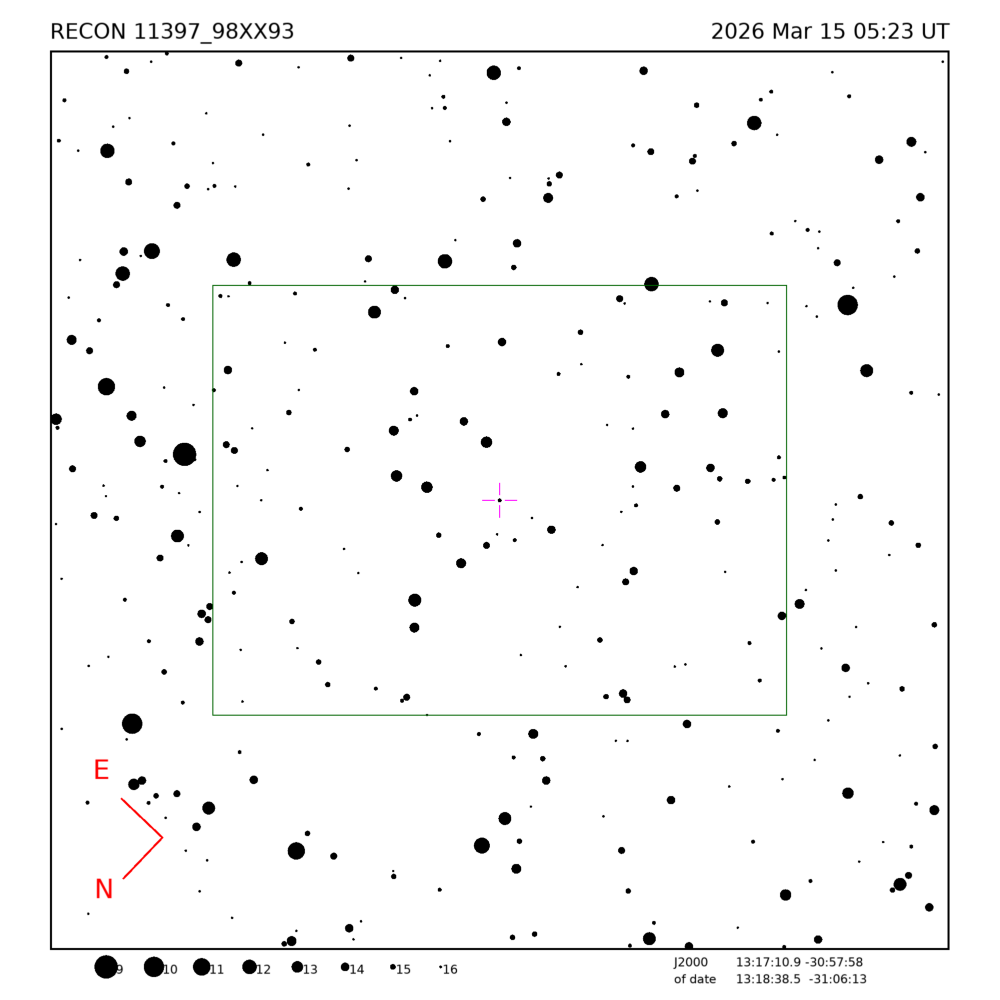

Star training set for 11397_98XX93, (2026/03/15 05:23UT)
Object            RA         Dec     mag  sep  mel
Spica          13:26:34.6 -11:17:50  1.0 19.89 103
Iot Cen        13:22:04.8 -36:50:59  2.8  5.79  93
PPM 291197     13:18:20.9 -31:38:39  5.1  0.54  96
PPM 291226     13:19:32.9 -30:52:11  8.4  0.30  96
PPM 291221     13:19:14.5 -31:00:45  9.2  0.16  96
11397_98XX93   13:18:38.5 -31:06:13 15.6        96
Positions are for equinox of date

Azimuth is measured in degrees eastward from north. North is at an azimuth of 0, due East is at an azimuth of 90 degrees, due South is 180, and due West is 270.

Star training set for 11397_98XX93, (2026/03/15 05:23UT)
Object            RA         Dec     mag  sep  mel
Spica          13:25:11.5 -11:09:41  1.0 19.89 103
Iot Cen        13:20:35.1 -36:42:46  2.8  5.79  93
PPM 291197     13:16:53.2 -31:30:24  5.1  0.54  96
PPM 291226     13:18:05.3 -30:43:57  8.4  0.30  96
PPM 291221     13:17:46.9 -30:52:31  9.2  0.16  96
11397_98XX93   13:17:10.9 -30:57:58 15.6        96
Positions are for J2000


Created by recondetail.pro, 2025/06/19 03:03:03 MT
