RECON: TNO occultation with 13NT33

Event between 13NT33 and star GA1020:00261548 with event index number of 2069828

Geocentric closest approach at 2023/12/25 09:11:23 UTC

J2000 position of star is 02:51:49.8 +12:10:51
Equinox of date position of star is 02:53:08.0 +12:16:41
Stellar brightness G=15.5, use SENSEUP=128 with the MallinCam and and exposure time of 2 seconds with the QHY174 camera.
Star is 31 degrees from the moon. Moon is 97% illuminated.
Apparent brightness V=21.1

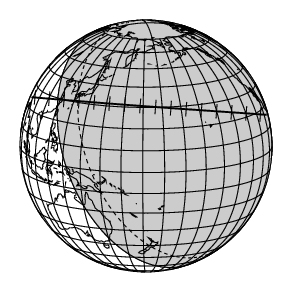

[RECON map]
Object is 16.8 AU from the Sun and 16.1 AU from the Earth.
Apparent velocity is 12.6 km/sec on the sky relative to the star, or, 3.9 arcsec/hr.
The 1-sigma error in the time of the event is 50 seconds.
The 1-sigma cross-track error in the shadow position is 616 km.
The sky-plane scale is 11687.8 km/arcsec.

The object has an absolute magnitude Hv=8.7
Diameter=101.9 km assuming a 5% albedo -- 8.6 sec chord
Diameter=41.6 km assuming a 30% albedo -- 3.5 sec chord
Dynamical classification is CENTAURR

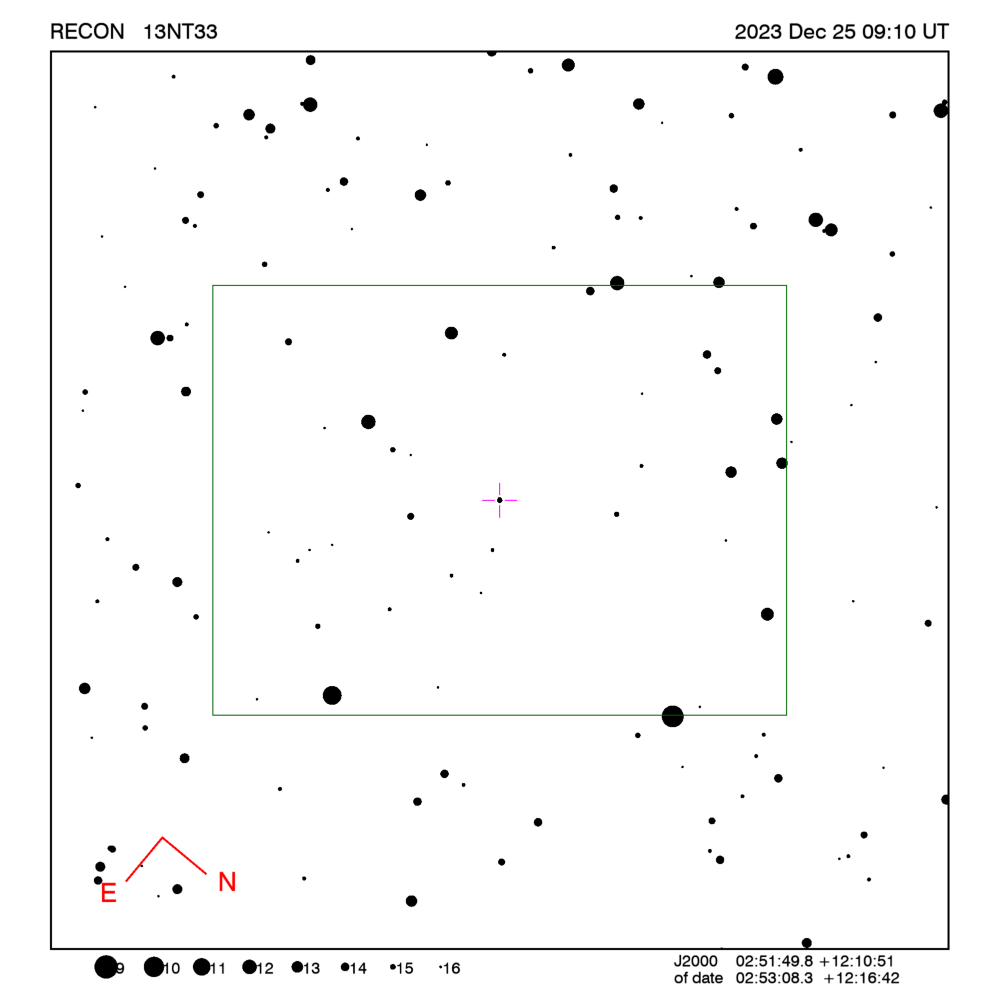

Star training set for 13NT33, (2023/12/25 09:10UT)
Object            RA         Dec     mag  sep  mel
Aldebaran      04:37:18.0 +16:33:20  0.8 25.56  10
Menkar         03:03:32.2 +04:10:57  2.5  8.49  34
38 Ari         02:46:16.2 +12:32:43  5.4  1.70  32
PPM 118587     02:51:12.1 +12:45:13  8.3  0.67  31
PPM 118596     02:51:48.5 +11:58:03  8.7  0.45  31
PPM 118622     02:53:39.4 +12:16:35 11.2  0.13  30
13NT33         02:53:08.3 +12:16:42 15.5        30
Positions are for equinox of date

This table contains the target star visibility for the RECON network. The observing range has been set to a maximum of 5.0 sigma about the mid-time.
The median site spacing is 24.5 km RECON observability=0.9 and success probability=0.0%
Site Site mid-time
(UT)
Sun alt
(deg)
Sky Moon Star alt
(deg)
Star az
(deg)
Target Observing Time
(UT)
X-track
(km)
Sleaford 09:06:44 -52.9 Dark Up 14.8 270.9 Really Low 09:02:02 - 09:11:26 3074
Kamloops 09:06:55 -59.9 Dark Up 23.9 259.8 Low 09:02:13 - 09:11:37 2755
Kelowna 09:06:48 -60.3 Dark Up 23.5 260.9 Low 09:02:06 - 09:11:30 2712
Peachland 09:06:48 -60.5 Dark Up 23.7 260.7 Low 09:02:06 - 09:11:30 2699
Summerland 09:06:47 -60.6 Dark Up 23.6 260.8 Low 09:02:05 - 09:11:29 2690
Penticton 09:06:46 -60.6 Dark Up 23.6 261.0 Low 09:02:04 - 09:11:28 2687
Oliver 09:06:44 -60.9 Dark Up 23.7 261.1 Low 09:02:02 - 09:11:26 2662
Anarchist Mountain Observatory 09:06:42 -61.0 Dark Up 23.6 261.3 Low 09:02:00 - 09:11:24 2653
Okanogan 09:06:39 -61.6 Dark Up 23.8 261.4 Low 09:01:57 - 09:11:21 2602
Brewster 09:06:37 -61.9 Dark Up 24.0 261.4 Low 09:01:55 - 09:11:19 2578
Manson/Chelan 09:06:37 -62.2 Dark Up 24.3 261.2 Low 09:01:55 - 09:11:19 2557
Victoria 09:06:48 -62.8 Dark Up 26.3 258.3 Low 09:02:06 - 09:11:30 2550
Wenatchee 09:06:34 -62.7 Dark Up 24.5 261.2 Low 09:01:52 - 09:11:16 2518
Ellensburg 09:06:32 -63.1 Dark Up 24.7 261.3 Low 09:01:50 - 09:11:14 2484
Yakima 09:06:29 -63.4 Dark Up 24.8 261.4 Low 09:01:47 - 09:11:11 2452
Toppenish/White Swan 09:06:28 -63.6 Dark Up 24.7 261.6 Low 09:01:46 - 09:11:10 2439
PNWRO 09:06:22 -63.2 Dark Up 23.7 262.9 Low 09:01:40 - 09:11:04 2437
The Dalles 09:06:24 -64.5 Dark Up 25.3 261.4 Low 09:01:42 - 09:11:06 2365
Maupin 09:06:22 -64.8 Dark Up 25.3 261.6 Low 09:01:40 - 09:11:04 2335
Sisters 09:06:17 -65.7 Dark Up 25.8 261.7 Low 09:01:35 - 09:10:59 2257
Bend 09:06:16 -65.8 Dark Up 25.7 262.0 Low 09:01:34 - 09:10:58 2243
Dunrhomin 09:05:25 -58.8 Dark Up 14.0 274.2 Really Low 09:00:43 - 09:10:07 2236
Oregon Observatory 09:06:15 -66.0 Dark Up 25.8 262.0 Low 09:01:33 - 09:10:57 2227
Nikitin 09:05:24 -58.9 Dark Up 14.0 274.3 Really Low 09:00:42 - 09:10:06 2221
CU-SBO 09:05:23 -59.0 Dark Up 14.1 274.2 Really Low 09:00:41 - 09:10:05 2214
Chiloquin 09:06:08 -67.3 Dark Up 26.3 262.3 Low 09:01:26 - 09:10:50 2112
Klamath Falls 09:06:06 -67.5 Dark Up 26.3 262.5 Low 09:01:24 - 09:10:48 2086
Cedarville 09:05:58 -67.3 Dark Up 25.2 263.9 Low 09:01:16 - 09:10:40 2058
Fall River/Burney 09:05:58 -68.3 Dark Up 26.2 263.3 Low 09:01:16 - 09:10:40 1995
Gimple 09:05:52 -68.7 Dark Up 25.9 264.1 Low 09:01:10 - 09:10:34 1929
Greenville 09:05:52 -68.7 Dark Up 26.0 264.1 Low 09:01:10 - 09:10:34 1928
Quincy 09:05:51 -68.9 Dark Up 26.0 264.2 Low 09:01:09 - 09:10:33 1910
Portola 09:05:49 -68.7 Dark Up 25.6 264.5 Low 09:01:07 - 09:10:31 1909
Reno 09:05:46 -68.6 Dark Up 25.2 265.1 Low 09:01:04 - 09:10:28 1899
Carson City 09:05:44 -68.8 Dark Up 25.2 265.3 Low 09:01:02 - 09:10:26 1869
Yerington 09:05:41 -68.6 Dark Up 24.7 265.8 Low 09:00:59 - 09:10:23 1864
Gardnerville 09:05:42 -69.0 Dark Up 25.2 265.4 Low 09:01:00 - 09:10:24 1849
Hawthorne 09:05:37 -68.6 Dark Up 24.4 266.3 Low 09:00:55 - 09:10:19 1835
Lee Vining 09:05:35 -69.2 Dark Up 24.8 266.2 Low 09:00:53 - 09:10:17 1777
Bishop 09:05:30 -69.2 Dark Up 24.3 267.0 Low 09:00:48 - 09:10:12 1739
Beatty 09:05:24 -68.4 Dark Up 23.0 268.2 Low 09:00:42 - 09:10:06 1731
Patrick 09:05:10 -67.1 Dark Up 20.7 270.4 Low 09:00:28 - 09:09:52 1659
Laughlin/Bullhead City 09:05:10 -67.7 Dark Up 21.3 270.1 Low 09:00:28 - 09:09:52 1623
Lake Havasu City 09:05:05 -67.9 Dark Up 21.1 270.5 Low 09:00:23 - 09:09:47 1568
George/Scottsdale 09:04:57 -66.3 Dark Up 19.1 272.2 Really Low 09:00:15 - 09:09:39 1550
Idyllwild 09:05:07 -70.0 Dark Up 23.1 269.5 Low 09:00:25 - 09:09:49 1451
Wildwood 09:05:14 -71.2 Dark Up 24.6 268.3 Low 09:00:32 - 09:09:56 1444
Calipatria 09:05:01 -69.3 Dark Up 22.1 270.4 Low 09:00:19 - 09:09:43 1420
Yuma 09:04:57 -68.8 Dark Up 21.4 271.0 Low 09:00:15 - 09:09:39 1399

Azimuth is measured in degrees eastward from north. North is at an azimuth of 0, due East is at an azimuth of 90 degrees, due South is 180, and due West is 270.

Do not use the listing below for the RECON CPC 1100 telescopes. This is provided for other non-team facilities.

Star training set for 13NT33, (2023/12/25 09:10UT)
Object            RA         Dec     mag  sep  mel
Aldebaran      04:35:55.3 +16:30:29  0.8 25.56  10
Menkar         03:02:16.8 +04:05:21  2.5  8.49  34
38 Ari         02:44:57.7 +12:26:42  5.4  1.70  32
PPM 118587     02:49:53.5 +12:39:19  8.3  0.67  31
PPM 118596     02:50:30.1 +11:52:10  8.7  0.45  31
PPM 118622     02:52:20.9 +12:10:45 11.2  0.13  30
13NT33         02:51:49.8 +12:10:51 15.5        31
Positions are for J2000

Event circumstances last updated at 2023/11/18 04:46:27 UT

Marc W. Buie, Southwest Research Institute

RECON
