RECON: TNO occultation with 10XE91

Event between 10XE91 and star GA0980:01202815 with event index number of 1038444

Geocentric closest approach at 2021/01/26 08:53:35 UTC

J2000 position of star is 06:00:38.2 +08:11:42
Equinox of date position of star is 06:01:44.2 +08:11:40
Stellar brightness G=13.5, use SENSEUP=32
Star is 18 degrees from the moon. Moon is 94% illuminated.
TNO apparent brightness V=26.1

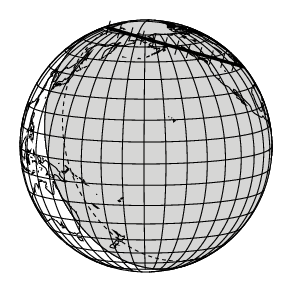

[RECON map]
TNO is 39.9 AU from the Sun and 39.1 AU from the Earth.
The TNO is moving 20.1 km/sec on the sky relative to the star, or, 2.5 arcsec/hr.
The 1-sigma error in the time of the event is 128 seconds.
The 1-sigma cross-track error in the shadow position is 1750 km.
The sky-plane scale is 28387.6 km/arcsec.

The TNO has an absolute magnitude Hv=10.0
Diameter=276.7 km assuming a 5% albedo -- 3.0 sec chord
Diameter=113.0 km assuming a 30% albedo -- 1.2 sec chord
Dynamical classification is SCATNEAR

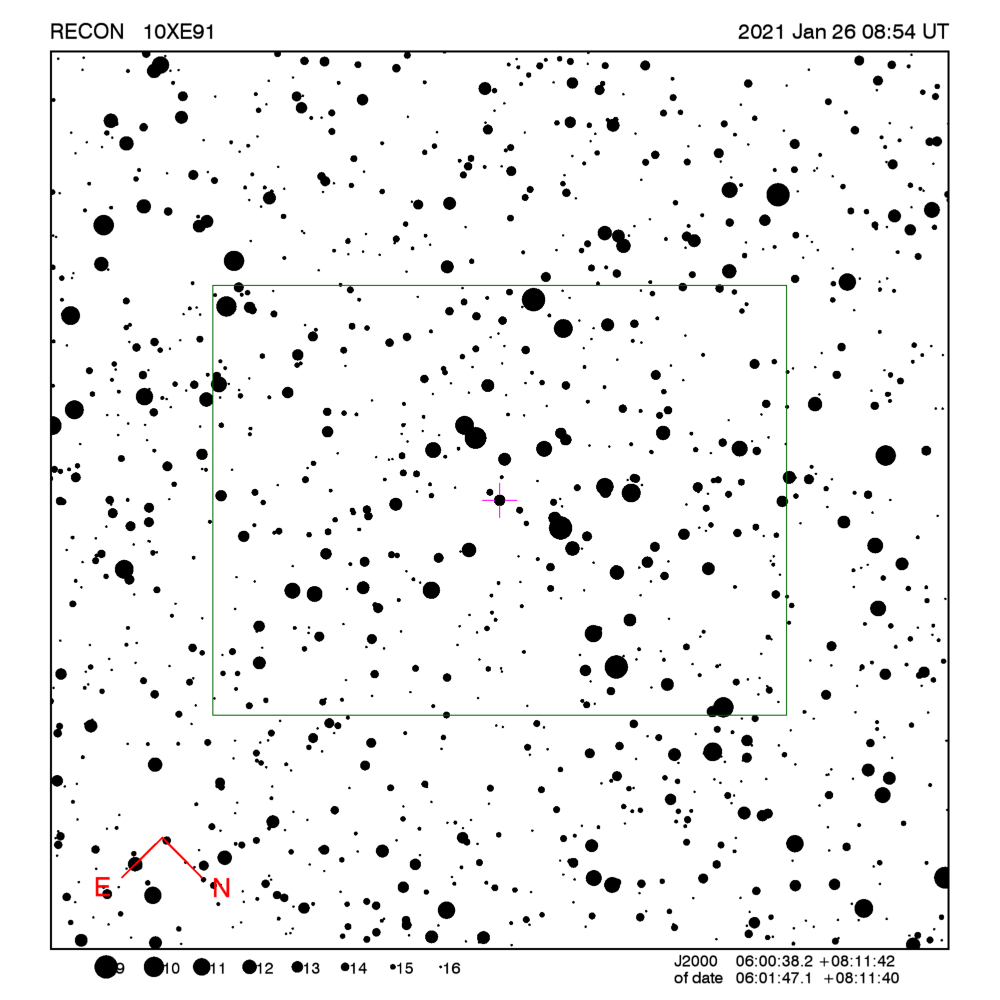

Star training set for 10XE91, (2021/01/26 08:54UT)
Object            RA         Dec     mag  sep  mel
Betelgeuse     05:56:18.8 +07:24:33  0.4  1.57  20
Bellatrix      05:26:15.7 +06:22:01  1.6  9.00  25
PPM 149639     05:56:03.1 +05:51:47  6.4  2.73  21
PPM 149761     06:01:51.1 +08:17:37  8.4  0.10  18
PPM 149758     06:01:44.2 +08:13:31  9.5  0.03  18
10XE91         06:01:47.1 +08:11:40 13.5        18
Positions are for equinox of date

This table contains the target star visibility for the RECON network. The observing range has been set to a maximum of 5.0 sigma about the mid-time.
The median site spacing is 15.4 km RECON observability=1.0 and success probability=17.3%
Site Site mid-time
(UT)
Sun alt
(deg)
Sky Moon Star alt
(deg)
Star az
(deg)
Target Observing Time
(UT)
X-track
(km)
Clarence Fulton 08:52:09 -57.3 Dark Up 31.4 241.8 Up 08:41:01 - 09:03:18 -54
Kelowna 08:52:08 -57.7 Dark Up 31.7 241.8 Up 08:41:00 - 09:03:17 -80
Peachland 08:52:08 -57.8 Dark Up 31.9 241.6 Up 08:41:00 - 09:03:17 -92
Summerland 08:52:08 -57.9 Dark Up 31.9 241.8 Up 08:40:59 - 09:03:16 -99
Penticton 08:52:07 -58.0 Dark Up 31.9 241.9 Up 08:40:58 - 09:03:15 -101
Oliver 08:52:06 -58.3 Dark Up 32.1 242.1 Up 08:40:57 - 09:03:14 -122
Anarchist Mountain Observatory 08:52:04 -58.4 Dark Up 32.0 242.4 Up 08:40:56 - 09:03:13 -127
Tonasket 08:52:03 -58.8 Dark Up 32.2 242.5 Up 08:40:55 - 09:03:12 -148
Okanogan 08:52:02 -59.1 Dark Up 32.5 242.5 Up 08:40:54 - 09:03:11 -171
Brewster 08:52:02 -59.4 Dark Up 32.7 242.5 Up 08:40:53 - 09:03:10 -192
Manson/Chelan 08:52:02 -59.7 Dark Up 33.0 242.3 Up 08:40:53 - 09:03:10 -213
Entiat 08:52:01 -59.9 Dark Up 33.2 242.3 Up 08:40:52 - 09:03:09 -228
Victoria 08:52:12 -59.6 Dark Up 34.6 238.8 Up 08:41:03 - 09:03:20 -243
Wenatchee 08:52:00 -60.2 Dark Up 33.4 242.4 Up 08:40:52 - 09:03:09 -246
Ellensburg 08:51:59 -60.6 Dark Up 33.7 242.4 Up 08:40:50 - 09:03:07 -276
Pasco 08:51:53 -61.0 Dark Up 33.2 244.1 Up 08:40:44 - 09:03:01 -293
Yakima 08:51:58 -61.0 Dark Up 33.9 242.6 Up 08:40:49 - 09:03:06 -303
PNWRO 08:51:51 -61.2 Dark Up 33.1 244.5 Up 08:40:43 - 09:03:00 -303
Toppenish/White Swan 08:51:56 -61.2 Dark Up 33.9 242.9 Up 08:40:48 - 09:03:05 -313
Goldendale 08:51:55 -61.8 Dark Up 34.4 242.8 Up 08:40:47 - 09:03:04 -358
The Dalles 08:51:55 -62.1 Dark Up 34.7 242.6 Up 08:40:47 - 09:03:04 -381
Niwot 08:50:59 -59.9 Dark Up 25.6 258.6 Low 08:39:51 - 09:02:08 -393
SwRI 08:50:59 -60.1 Dark Up 25.7 258.6 Low 08:39:50 - 09:02:07 -403
Maupin 08:51:53 -62.5 Dark Up 34.9 243.0 Up 08:40:45 - 09:03:02 -406
Redmond 08:51:50 -63.3 Dark Up 35.3 243.4 Up 08:40:41 - 09:02:58 -468
Sisters 08:51:51 -63.4 Dark Up 35.6 243.1 Up 08:40:42 - 09:02:59 -475
Bend 08:51:49 -63.6 Dark Up 35.5 243.4 Up 08:40:41 - 09:02:58 -485
Oregon Observatory 08:51:49 -63.8 Dark Up 35.7 243.4 Up 08:40:41 - 09:02:58 -500
La Pine/Gilchrist 08:51:48 -64.0 Dark Up 35.8 243.5 Up 08:40:40 - 09:02:57 -515
North Lake 08:51:45 -64.3 Dark Up 35.6 244.3 Up 08:40:37 - 09:02:54 -531
Paisley 08:51:42 -64.7 Dark Up 35.6 245.0 Up 08:40:34 - 09:02:51 -561
Lakeview 08:51:40 -65.1 Dark Up 35.7 245.5 Up 08:40:32 - 09:02:49 -592
Klamath Falls 08:51:43 -65.4 Dark Up 36.7 244.2 Up 08:40:35 - 09:02:52 -623
Cedarville 08:51:37 -65.7 Dark Up 35.9 246.1 Up 08:40:28 - 09:02:45 -634
Fall River/Burney 08:51:38 -66.5 Dark Up 36.9 245.3 Up 08:40:29 - 09:02:46 -698
Susanville 08:51:34 -66.8 Dark Up 36.7 246.4 Up 08:40:25 - 09:02:42 -725
Gimple 08:51:33 -67.2 Dark Up 36.9 246.4 Up 08:40:25 - 09:02:42 -751
Greenville 08:51:34 -67.2 Dark Up 37.0 246.3 Up 08:40:25 - 09:02:42 -753
Portola 08:51:31 -67.3 Dark Up 36.8 247.0 Up 08:40:22 - 09:02:39 -765
Quincy 08:51:33 -67.4 Dark Up 37.1 246.5 Up 08:40:24 - 09:02:41 -768
Reno 08:51:28 -67.4 Dark Up 36.4 247.7 Up 08:40:20 - 09:02:37 -769
Yerington 08:51:25 -67.7 Dark Up 36.2 248.6 Up 08:40:16 - 09:02:33 -793
Carson City 08:51:27 -67.7 Dark Up 36.6 247.9 Up 08:40:18 - 09:02:35 -794
Gardnerville 08:51:26 -67.9 Dark Up 36.6 248.2 Up 08:40:17 - 09:02:34 -812
Tonopah 08:51:16 -67.7 Dark Up 35.1 250.8 Up 08:40:07 - 09:02:24 -815
Hawthorne 08:51:21 -67.9 Dark Up 36.0 249.4 Up 08:40:13 - 09:02:30 -815
Lee Vining 08:51:21 -68.6 Dark Up 36.5 249.3 Up 08:40:12 - 09:02:29 -869
Indian Springs 08:51:07 -68.2 Dark Up 34.4 252.9 Up 08:39:59 - 09:02:16 -889
Beatty 08:51:11 -68.5 Dark Up 35.1 251.9 Up 08:40:02 - 09:02:19 -891
Bishop 08:51:17 -68.8 Dark Up 36.2 250.3 Up 08:40:08 - 09:02:25 -897
Henderson 08:51:03 -68.3 Dark Up 34.1 253.8 Up 08:39:54 - 09:02:11 -913
Patrick 08:50:58 -68.2 Dark Up 33.4 255.0 Up 08:39:50 - 09:02:07 -934
DCO 08:50:55 -68.0 Dark Up 32.9 255.7 Up 08:39:47 - 09:02:04 -940
Kingman/Dolan Springs 08:50:58 -68.4 Dark Up 33.6 255.0 Up 08:39:49 - 09:02:06 -955
Searchlight/Boulder City 08:51:01 -68.7 Dark Up 34.2 254.2 Up 08:39:52 - 09:02:09 -956
Laughlin/Bullhead City 08:50:59 -68.8 Dark Up 34.0 254.7 Up 08:39:50 - 09:02:07 -971
Mohave Valley 08:50:58 -69.0 Dark Up 34.1 254.8 Up 08:39:50 - 09:02:07 -992
George/Scottsdale 08:50:47 -68.1 Dark Up 32.2 257.4 Up 08:39:39 - 09:01:56 -1016
Lake Havasu City 08:50:56 -69.1 Dark Up 34.0 255.3 Up 08:39:48 - 09:02:05 -1017
Parker 08:50:55 -69.3 Dark Up 34.0 255.5 Up 08:39:46 - 09:02:03 -1044
Blythe 08:50:53 -69.9 Dark Up 34.4 255.6 Up 08:39:45 - 09:02:02 -1093
CPSLO 08:51:15 -71.5 Dark Up 38.6 250.0 Up 08:40:07 - 09:02:24 -1115
Idyllwild 08:50:59 -71.0 Dark Up 36.1 254.1 Up 08:39:51 - 09:02:08 -1137
Calipatria 08:50:53 -70.8 Dark Up 35.3 255.3 Up 08:39:45 - 09:02:02 -1156
Wildwood 08:51:06 -71.7 Dark Up 37.4 252.4 Up 08:39:57 - 09:02:14 -1157
Yuma 08:50:50 -70.6 Dark Up 34.7 256.2 Up 08:39:41 - 09:01:58 -1168

Azimuth is measured in degrees eastward from north. North is at an azimuth of 0, due East is at an azimuth of 90 degrees, due South is 180, and due West is 270.

Do not use the listing below for the RECON CPC 1100 telescopes. This is provided for other non-team facilities.

Star training set for 10XE91, (2021/01/26 08:54UT)
Object            RA         Dec     mag  sep  mel
Betelgeuse     05:55:10.3 +07:24:26  0.4  1.57  20
Bellatrix      05:25:07.8 +06:20:58  1.6  9.00  25
PPM 149639     05:54:55.4 +05:51:39  6.4  2.73  21
PPM 149761     06:00:42.3 +08:17:39  8.4  0.10  18
PPM 149758     06:00:35.3 +08:13:33  9.5  0.03  18
10XE91         06:00:38.2 +08:11:42 13.5        18
Positions are for J2000

Event circumstances last updated at 2020/03/10 22:54:34 UT

Marc W. Buie, Southwest Research Institute

RECON
