RECON: TNO occultation with 03UY291

Event between 03UY291 and star GA1160:01187749 with event index number of 1073705

Geocentric closest approach at 2021/11/19 04:59:58 UTC

J2000 position of star is 05:18:36.1 +26:41:10
Equinox of date position of star is 05:19:54.7 +26:42:24
Stellar brightness G=15.2, use SENSEUP=128 with the MallinCam and and exposure time of 2 seconds with the QHY174 camera.
Star is 26 degrees from the moon. Moon is 100% illuminated.
TNO apparent brightness V=23.8

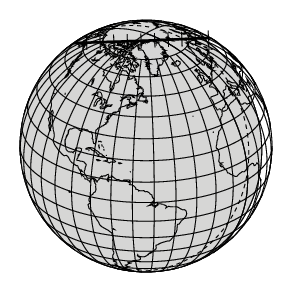

[RECON map]
TNO is 44.9 AU from the Sun and 44.0 AU from the Earth.
The TNO is moving 23.1 km/sec on the sky relative to the star, or, 2.6 arcsec/hr.
The 1-sigma error in the time of the event is 882 seconds.
The 1-sigma cross-track error in the shadow position is 2967 km.
The sky-plane scale is 31899.4 km/arcsec.

The TNO has an absolute magnitude Hv=7.3
Diameter=211.8 km assuming a 5% albedo -- 9.2 sec chord
Diameter=86.5 km assuming a 30% albedo -- 3.7 sec chord
Dynamical classification is CLASSICAL

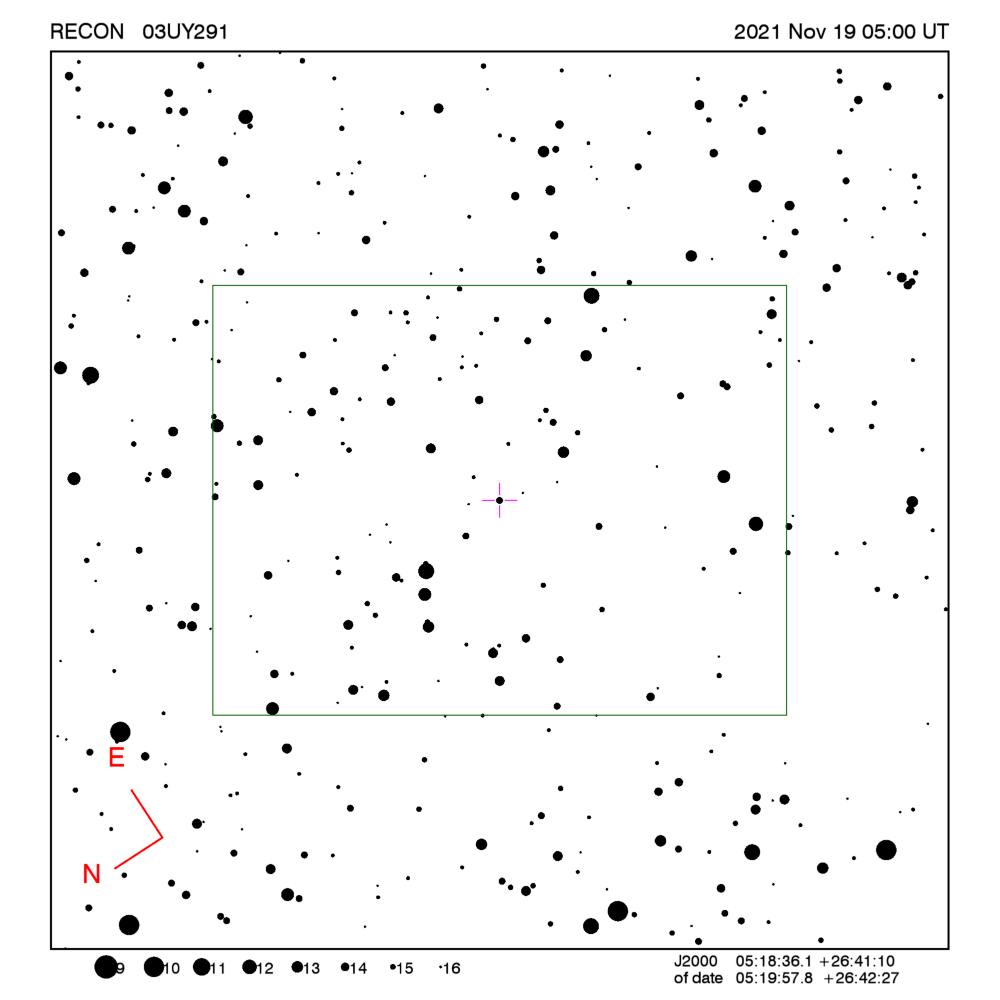

Star training set for 03UY291, (2021/11/19 05:00UT)
Object            RA         Dec     mag  sep  mel
Aldebaran      04:37:10.7 +16:33:06  0.8 14.20  15
Alnath         05:27:40.6 +28:37:26  1.6  2.57  28
PPM 094294     05:22:21.9 +27:58:38  6.3  1.38  27
PPM 094273     05:21:15.3 +27:06:10  9.6  0.49  26
PPM 094246     05:19:03.5 +26:46:10 11.2  0.21  26
03UY291        05:19:57.8 +26:42:27 15.2        26
Positions are for equinox of date

This table contains the target star visibility for the RECON network. The observing range has been set to a maximum of 1.0 sigma about the mid-time.
The median site spacing is 21.9 km RECON observability=1.0 and success probability=13.6%
Site Site mid-time
(UT)
Sun alt
(deg)
Sky Moon Star alt
(deg)
Star az
(deg)
Target Observing Time
(UT)
X-track
(km)
Clarence Fulton 05:02:32 -45.9 Dark Up 36.0 90.3 Up 04:47:32 - 05:17:32 -1591
Victoria 05:02:43 -44.3 Dark Up 33.3 86.1 Up 04:47:43 - 05:17:43 -1597
Peachland 05:02:34 -45.9 Dark Up 35.7 89.6 Up 04:47:34 - 05:17:34 -1616
Kelowna 05:02:33 -46.0 Dark Up 35.9 89.9 Up 04:47:33 - 05:17:33 -1617
Summerland 05:02:35 -46.0 Dark Up 35.8 89.6 Up 04:47:35 - 05:17:35 -1630
Penticton 05:02:35 -46.1 Dark Up 35.9 89.6 Up 04:47:35 - 05:17:35 -1639
Oliver 05:02:36 -46.3 Dark Up 35.9 89.4 Up 04:47:36 - 05:17:36 -1667
Anarchist Mountain Observatory 05:02:36 -46.5 Dark Up 36.0 89.4 Up 04:47:36 - 05:17:36 -1686
Tonasket 05:02:37 -46.6 Dark Up 35.9 89.1 Up 04:47:37 - 05:17:37 -1708
Okanogan 05:02:39 -46.7 Dark Up 35.8 88.8 Up 04:47:39 - 05:17:39 -1730
Brewster 05:02:40 -46.7 Dark Up 35.7 88.4 Up 04:47:40 - 05:17:40 -1745
Manson/Chelan 05:02:41 -46.6 Dark Up 35.4 88.0 Up 04:47:41 - 05:17:41 -1750
Wenatchee 05:02:43 -46.7 Dark Up 35.3 87.6 Up 04:47:43 - 05:17:43 -1783
Ellensburg 05:02:44 -46.7 Dark Up 35.2 87.1 Up 04:47:44 - 05:17:44 -1809
Yakima 05:02:46 -46.9 Dark Up 35.1 86.8 Up 04:47:46 - 05:17:46 -1841
Toppenish/White Swan 05:02:46 -47.1 Dark Up 35.2 86.8 Up 04:47:46 - 05:17:46 -1864
Goldendale 05:02:49 -47.0 Dark Up 34.9 86.1 Up 04:47:49 - 05:17:49 -1894
The Dalles 05:02:50 -46.9 Dark Up 34.6 85.7 Up 04:47:50 - 05:17:50 -1901
Pasco 05:02:45 -47.9 Dark Up 36.1 87.6 Up 04:47:45 - 05:17:45 -1915
Maupin 05:02:51 -47.1 Dark Up 34.7 85.5 Up 04:47:51 - 05:17:51 -1938
PNWRO 05:02:46 -48.2 Dark Up 36.2 87.6 Up 04:47:46 - 05:17:46 -1943
Sisters 05:02:55 -47.1 Dark Up 34.3 84.6 Up 04:47:55 - 05:17:55 -1994
Redmond 05:02:54 -47.4 Dark Up 34.6 84.8 Up 04:47:54 - 05:17:54 -2009
Bend 05:02:55 -47.4 Dark Up 34.4 84.6 Up 04:47:55 - 05:17:55 -2022
Oregon Observatory 05:02:56 -47.4 Dark Up 34.3 84.4 Up 04:47:56 - 05:17:56 -2032
La Pine/Gilchrist 05:02:56 -47.4 Dark Up 34.3 84.2 Up 04:47:56 - 05:17:56 -2047
North Lake 05:02:57 -48.0 Dark Up 34.7 84.3 Up 04:47:57 - 05:17:57 -2104
Klamath Falls 05:03:01 -47.7 Dark Up 33.9 83.1 Up 04:48:01 - 05:18:01 -2159
Paisley 05:02:58 -48.4 Dark Up 34.9 84.1 Up 04:47:58 - 05:17:58 -2163
Lakeview 05:03:00 -48.8 Dark Up 35.0 83.9 Up 04:48:00 - 05:18:00 -2212
Fall River/Burney 05:03:04 -48.4 Dark Up 34.1 82.5 Up 04:48:04 - 05:18:04 -2273
Cedarville 05:03:01 -49.1 Dark Up 35.0 83.6 Up 04:48:01 - 05:18:01 -2275
Susanville 05:03:05 -49.1 Dark Up 34.5 82.5 Up 04:48:05 - 05:18:05 -2353
Greenville 05:03:06 -49.0 Dark Up 34.3 82.2 Up 04:48:06 - 05:18:06 -2367
Gimple 05:03:07 -49.1 Dark Up 34.3 82.2 Up 04:48:07 - 05:18:07 -2370
Quincy 05:03:07 -49.1 Dark Up 34.3 82.0 Up 04:48:07 - 05:18:07 -2384
Portola 05:03:07 -49.5 Dark Up 34.6 82.2 Up 04:48:07 - 05:18:07 -2413
Reno 05:03:07 -50.0 Dark Up 35.1 82.4 Up 04:48:07 - 05:18:07 -2459
Carson City 05:03:07 -50.2 Dark Up 35.0 82.2 Up 04:48:07 - 05:18:07 -2492
Gardnerville 05:03:08 -50.3 Dark Up 35.0 82.0 Up 04:48:08 - 05:18:08 -2515
Yerington 05:03:07 -50.7 Dark Up 35.5 82.4 Up 04:48:07 - 05:18:07 -2532
Hawthorne 05:03:07 -51.2 Dark Up 35.8 82.4 Up 04:48:07 - 05:18:07 -2593
Lee Vining 05:03:10 -51.0 Dark Up 35.4 81.7 Up 04:48:10 - 05:18:10 -2625
Tonopah 05:03:07 -52.4 Dark Up 36.9 82.8 Up 04:48:07 - 05:18:07 -2686
Bishop 05:03:11 -51.8 Dark Up 35.9 81.7 Up 04:48:11 - 05:18:11 -2706
CPSLO 05:03:20 -50.5 Dark Up 33.8 79.1 Up 04:48:20 - 05:18:20 -2807
Beatty 05:03:09 -53.1 Dark Up 37.1 82.2 Up 04:48:09 - 05:18:09 -2808
Indian Springs 05:03:08 -54.1 Dark Up 37.9 82.5 Up 04:48:08 - 05:18:08 -2878
Dunrhomin 05:02:37 -59.7 Dark Up 46.2 91.9 Up 04:47:37 - 05:17:37 -2892
Henderson 05:03:08 -54.8 Dark Up 38.4 82.4 Up 04:48:08 - 05:18:08 -2953
Wildwood 05:03:19 -52.5 Dark Up 35.2 79.3 Up 04:48:19 - 05:18:19 -2997
Laughlin/Bullhead City 05:03:10 -55.3 Dark Up 38.6 81.9 Up 04:48:10 - 05:18:10 -3049
Patrick 05:03:07 -55.8 Dark Up 39.2 82.5 Up 04:48:07 - 05:18:07 -3052
Kingman/Dolan Springs 05:03:08 -55.7 Dark Up 39.0 82.2 Up 04:48:08 - 05:18:08 -3066
Mohave Valley 05:03:10 -55.4 Dark Up 38.6 81.7 Up 04:48:10 - 05:18:10 -3075
Idyllwild 05:03:17 -54.1 Dark Up 36.7 79.9 Up 04:48:17 - 05:18:17 -3103
Lake Havasu City 05:03:11 -55.7 Dark Up 38.7 81.5 Up 04:48:11 - 05:18:11 -3122
Parker 05:03:12 -55.9 Dark Up 38.7 81.3 Up 04:48:12 - 05:18:12 -3156
Blythe 05:03:13 -55.8 Dark Up 38.4 80.7 Up 04:48:13 - 05:18:13 -3194
Calipatria 05:03:16 -55.2 Dark Up 37.5 79.9 Up 04:48:16 - 05:18:16 -3206
Yuma 05:03:16 -56.0 Dark Up 38.2 80.0 Up 04:48:16 - 05:18:16 -3281
George/Scottsdale 05:03:07 -57.9 Dark Up 40.6 82.0 Up 04:48:07 - 05:18:07 -3286

Azimuth is measured in degrees eastward from north. North is at an azimuth of 0, due East is at an azimuth of 90 degrees, due South is 180, and due West is 270.

Do not use the listing below for the RECON CPC 1100 telescopes. This is provided for other non-team facilities.

Star training set for 03UY291, (2021/11/19 05:00UT)
Object            RA         Dec     mag  sep  mel
Aldebaran      04:35:55.3 +16:30:29  0.8 14.20  15
Alnath         05:26:17.5 +28:36:23  1.6  2.57  28
PPM 094294     05:20:59.3 +27:57:25  6.3  1.38  27
PPM 094273     05:19:53.3 +27:04:55  9.6  0.49  26
PPM 094246     05:17:41.7 +26:44:51 11.2  0.21  26
03UY291        05:18:36.1 +26:41:10 15.2        26
Positions are for J2000

Event circumstances last updated at 2021/01/15 20:10:38 UT

Marc W. Buie, Southwest Research Institute

RECON
